Name: PCE Instruments PCE-CSM 25-ICA Colorimeter
Brand: PCE Instruments
SKU: 3812471

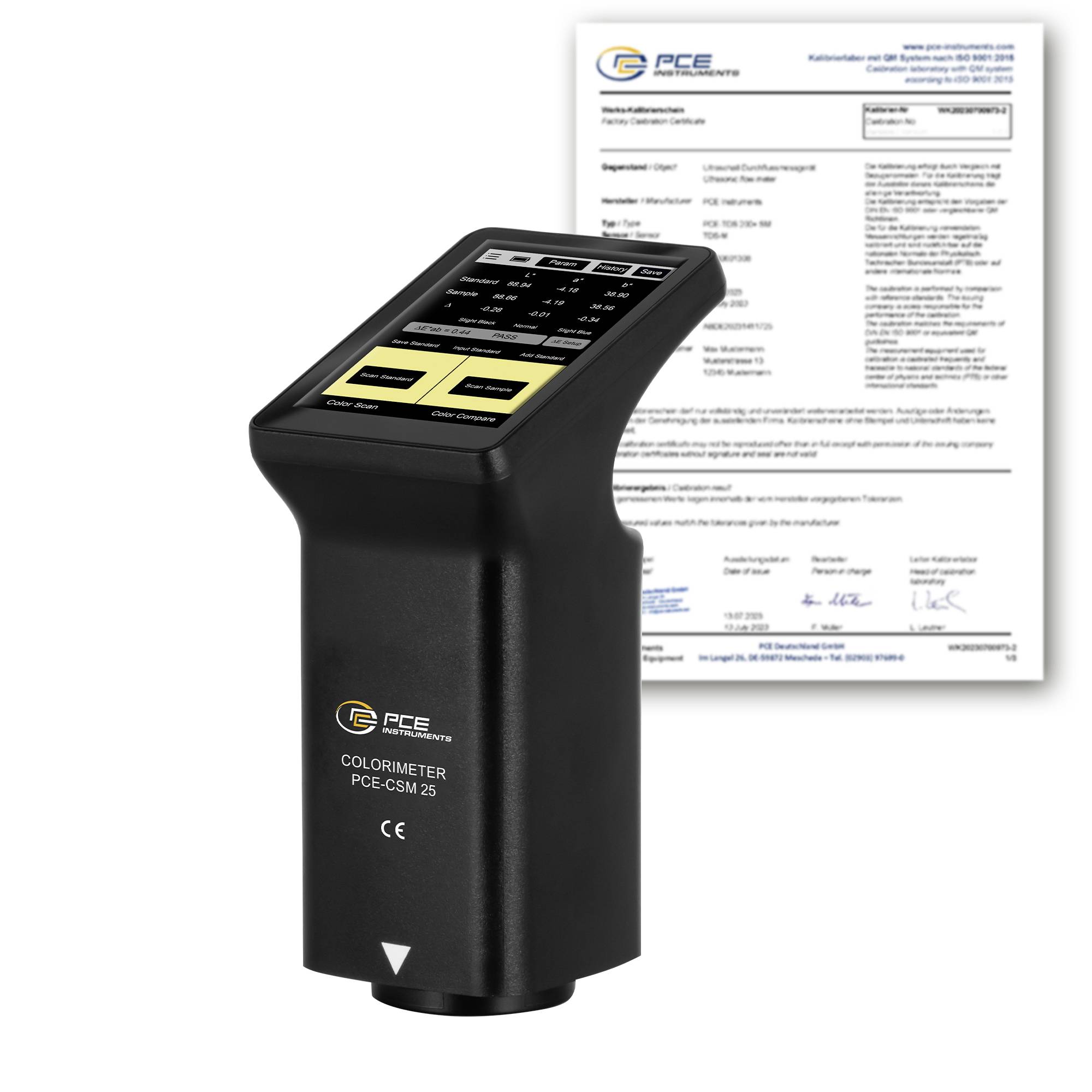

PCE-CSM 25 handheld colorimeter shown with a calibration certificate behind it, emphasizing measurement certification and accuracy.

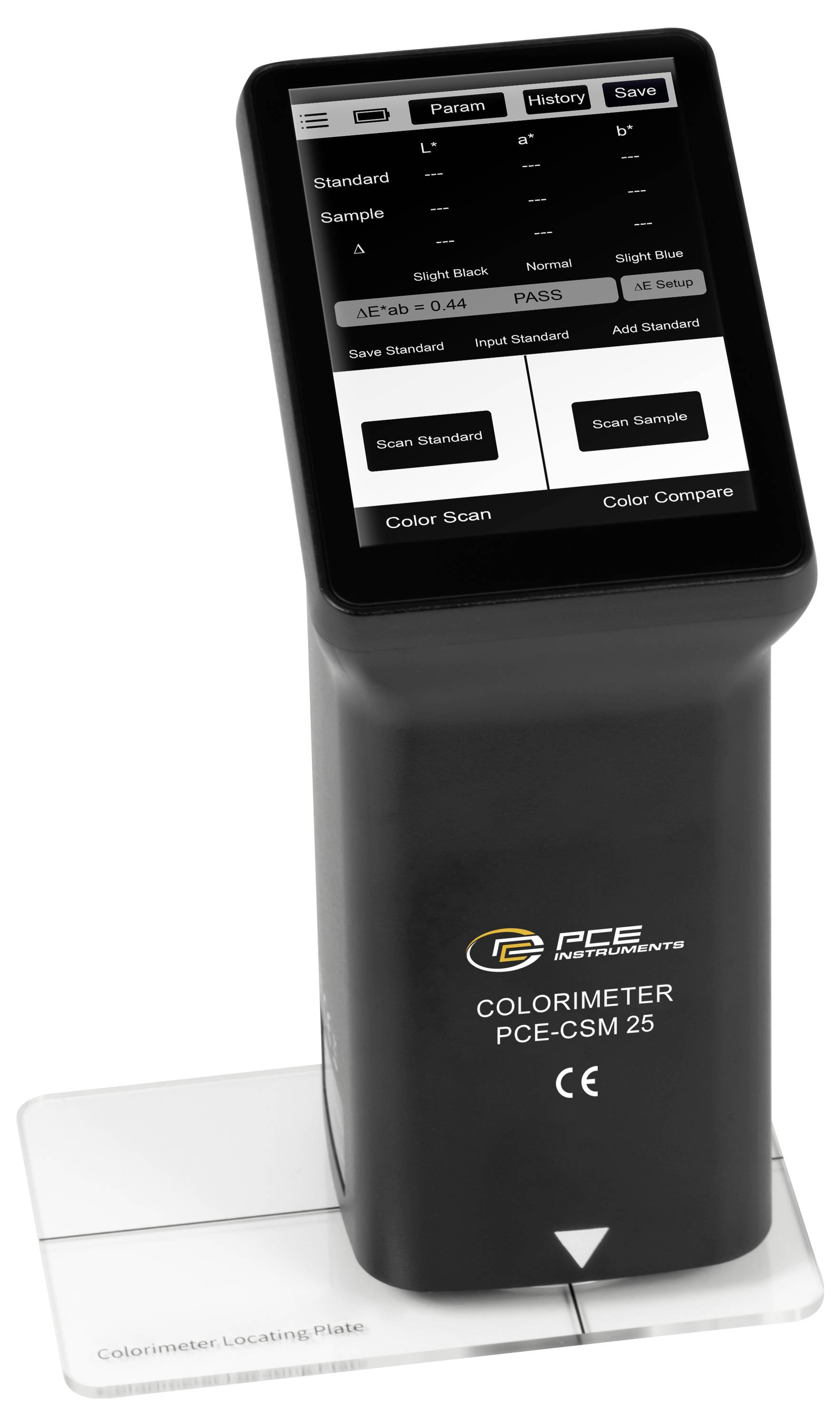

Handheld colorimeter on a base plate, showing a touchscreen with options like 'Color Scan' and 'Color Compare' for measuring and matching color.

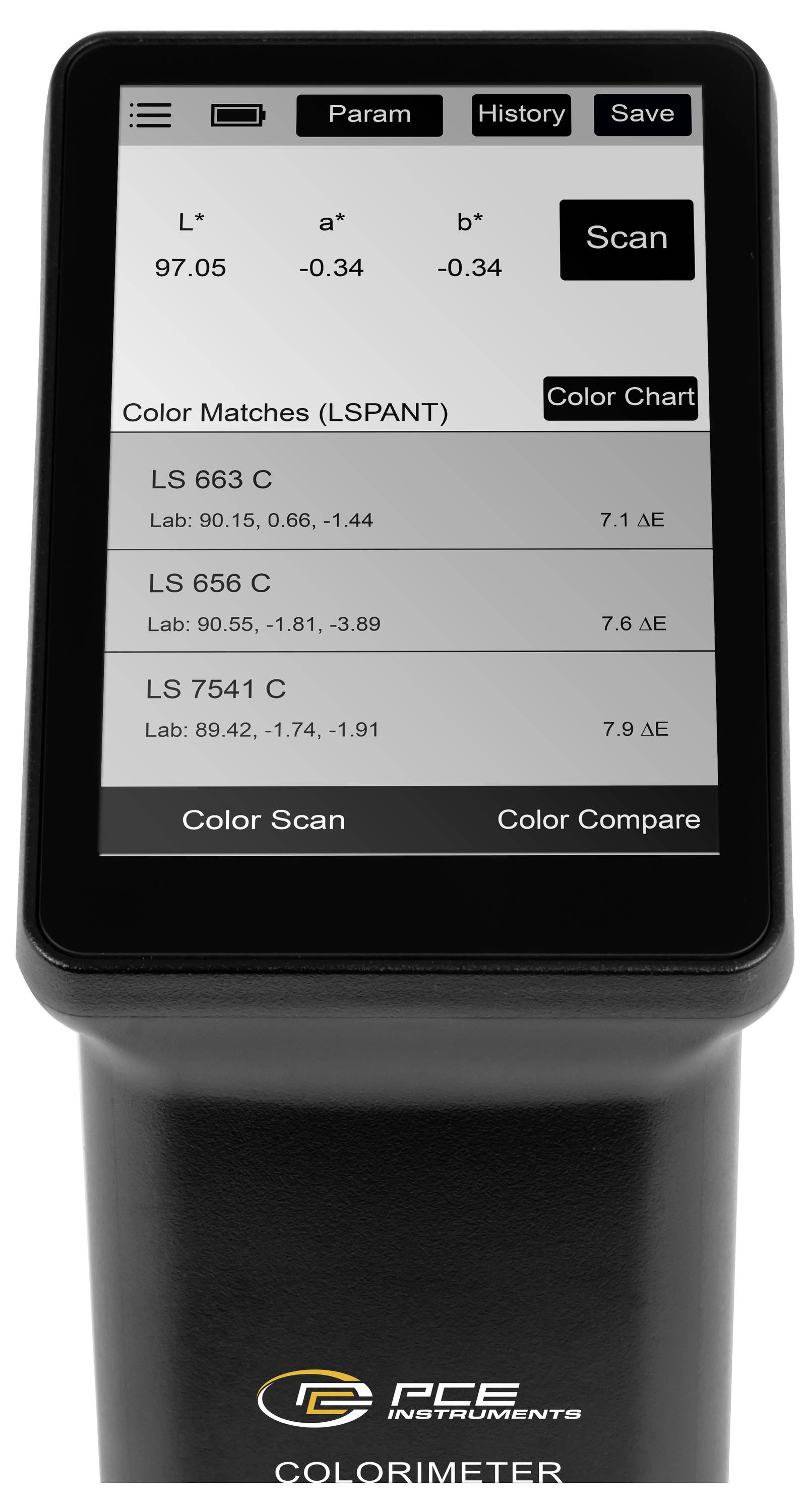

Handheld colorimeter screen showing Lab readings and a list of matching colors, with buttons for 'Scan', 'Color Chart', and 'Color Compare'.

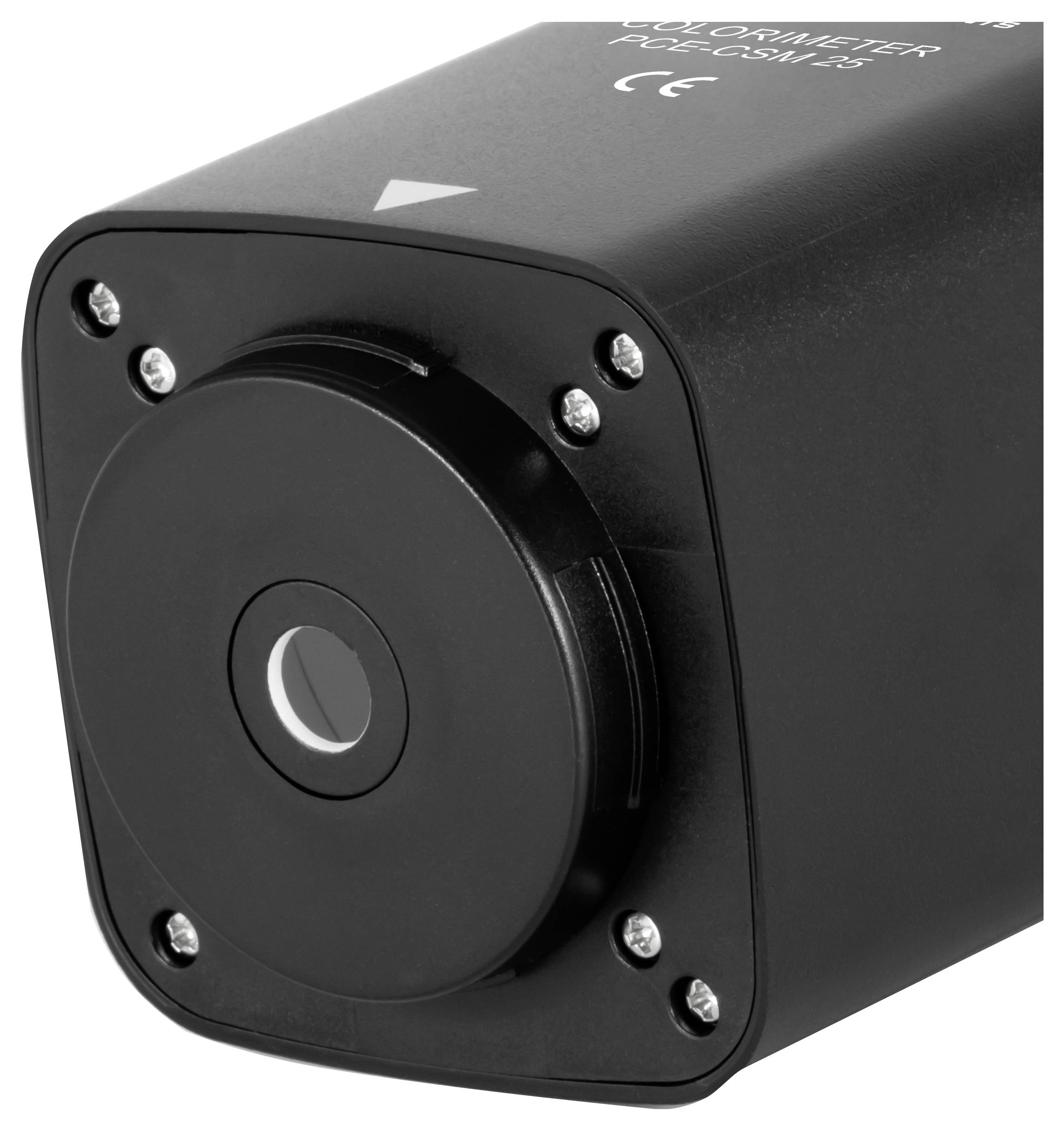

Close-up of a black cylindrical colorimeter device with a front lens and mounting screws, shown on a white background.

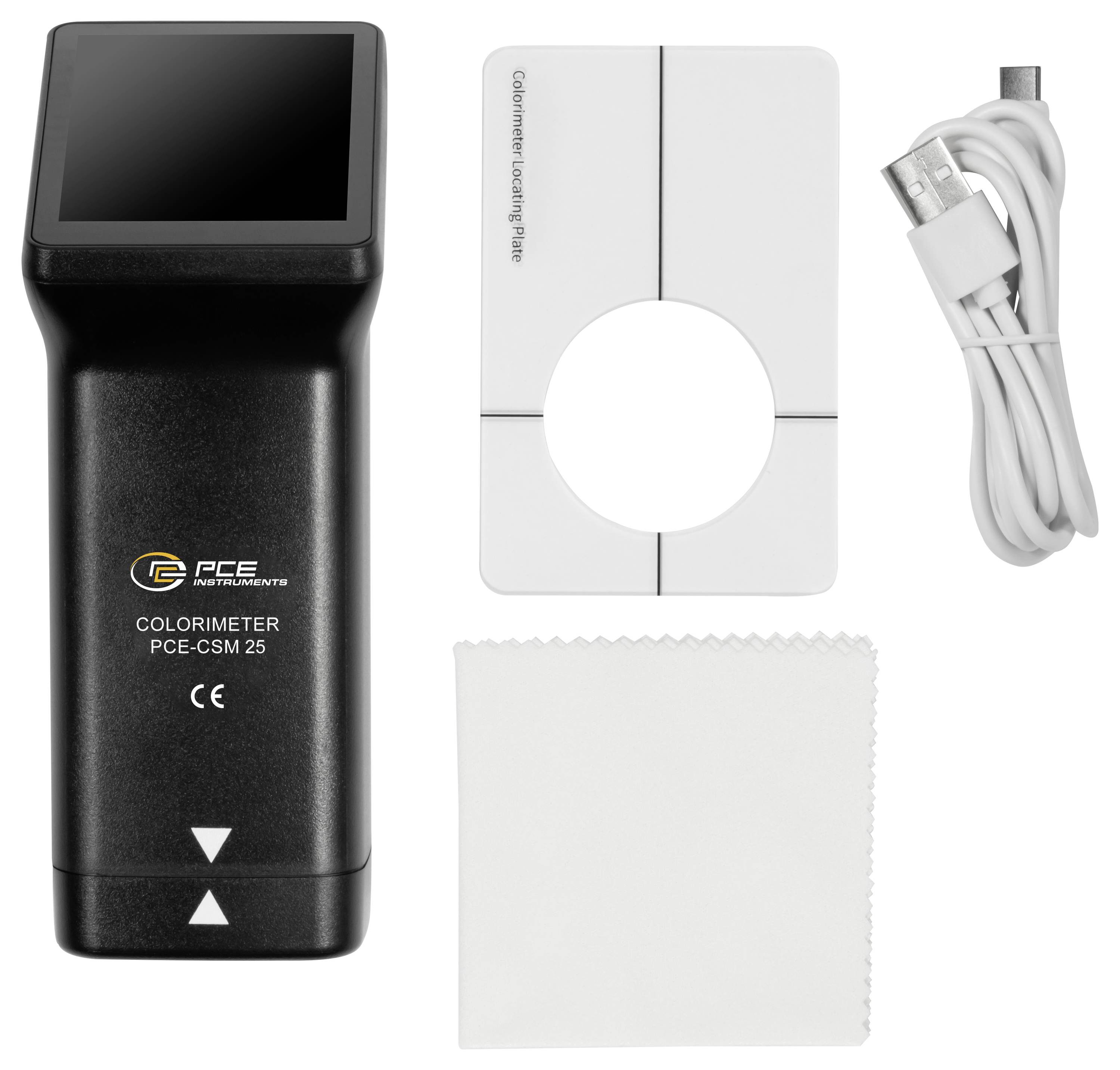

PCE Instruments colorimeter kit with handheld colorimeter, calibration plate, USB cable, and cleaning cloth on white background.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCE instruments Col. Meter PCE-CSM 25-ICA

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-CSM 25-ICA
D/8° measuring geometry with SCI
Measurement hole Ø 8 mm
3.5 inch IPS touchscreen
15 color spaces – CIE Lab, Luv, LCH, Yxy and more
7 ΔE color differential formulas
Memory for 1000 color values & 1000 standards
APP and PC software
Incl. ISO calibration certificate

Technical specifications

General Technical Data
Display Type Touch Display
Display size 3.5 inches
Storage medium Internal memory
Storage capacity of 2000 records
Memory information 1000 colors, 1000 color comparisons
Interface USB-C, Wireless
Standard(s) JJJG 595-2002, GB/T 3978-2008, GB/T 7921-2008, GB/T 11186.1-1989, GB/T 11186.2-1989, GB/T 11186.3-1989
Operating time 10000 measurements
Automatic shutdown of ... to 1 ... 30 min.
Repeatability 0.03 ΔE*AB
Light source D65
Measurement time 1 s.
Color spaces CIE Lab, CIE LUX, CIE LCH, Yxy, CMYK, RGB, HSL, HSV, ITA, SPECTRA, YI-98, WI-98, WI-FI-Gauz, WI-Hunter, WI-R457
Color difference ΔE*AB, ΔE*UV, ΔE*94, ΔE*CMC(2:1), ΔE*CMC(1:1) , ΔE*CMC(1.4:1), ΔE*00
Measurement hole 8 mm
Measuring geometry D/8°
Specular Component SCI
Wavelength range 400 ... 700 nm
Observer 10°
Calibration of white standard in the cover cap
Menu language English (GB), English (US), Chinese
Protection class (device) IP20
POWER SUPPLY 5 V (USB-C)
Battery/battery 1 x 3.7 V internal , lithium-ion battery
Capacity 4000 mAh
Operating conditions 0 ... 45 °C , 0 ... 85 % r.F.
Storage conditions -25 ... 55 °C , 0 ... 85 % r.F.
Dimensions ( L x W x H ) 90 x 61 x 160 mm
Weight 252 g.

Product type: Colorimeter

Factory colour: Black

Width: 61 mm

Height: 160 mm

Weight: 252 g

Dim: (L x W x H) 90 x 61 x 160 mm

Connector: USB C®

Features: Software download

Length: 90 mm

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3812471 PCE Instruments PCE-CSM 25-ICA Colorimeter

User & Safety Instructions

User & Safety Instructions 3812471 PCE Instruments PCE-CSM 25-ICA Colorimeter

Description

This colorimeter is a highly precise, portable measuring instrument for determining and comparing colors in various industrial and handicraft applications. Thanks to the modern D/8° measurement geometry with integrated mirror reflex (SCI) the device is excellently suitable for the color analysis of glossy, matt or structured surfaces. The operation is done via a user-friendly 3.5-inch touch-display, which is angled ergonomically at an angle of 20° and enables a comfortable use without physical buttons.

The colorimeter offers a high repeatability of ΔE*AB ≤ 0.03 and provides measurement results in less than one second. Numerous color spaces and color difference formulas are supported, including CIE Lab, LCH, RGB, CMYK as well as the white and yellow index – Ideal for professional color matching in quality management, production or goods receipt inspection. The integrated memory function allows the storage of up to 1000 color values and 1000 comparison recordings, whereby the color measuring device is particularly suitable for recurring testing tasks.

For data analysis, the measured values can be transferred wirelessly to a software on the PC or to mobile devices using USB or wireless technology. Moreover, the APP and the software also enable the execution and storage of measurements. The color measuring device is equipped with a long-lasting lithium-ion battery, which enables up to 10,000 measurements per charge. With its compact dimensions the device can be used without any problems on the move, for example in painting, plastics processing, textile testing or in the printing area.

Through its combination of precise measurement technology, easy operation and versatile data connection, the color measuring device is the ideal solution for professional color measurements in laboratory, workshop or on site at the customer's premises.
