PCE Instruments PCE-CSM 5-ICA Colorimeter
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
PCE instruments Col. Meter PCE-CSM 5-ICA
- PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-CSM 5-ICA
- CIE LAB, XYZ, LCH, RGB, LUV
- White calibration
- Determination of reference values and samples
- Changeable measuring attachments (Ø4 mm, Ø8 mm)
- High accuracy
- Repeatability: ΔE* from 0. 03
- Can be used on many surfaces
- Simple user interface
- Included software

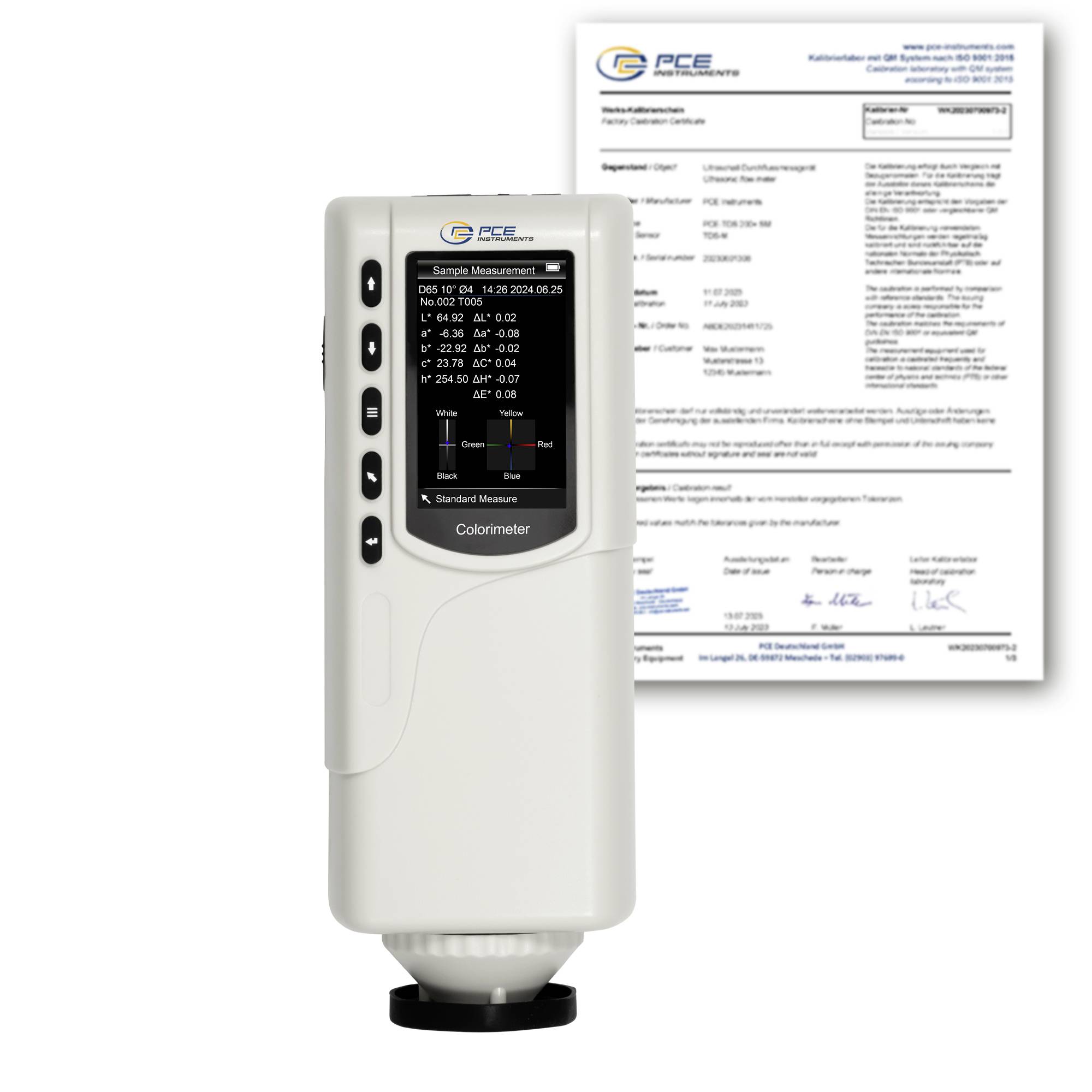

- Incl. ISO calibration certificate
Technical specifications
- General Technical Data
- Display type TFT color display
- Display size 2.8 inches
- Storage medium Internal memory
- Memory capacity: 20000 values
- Storage capacity (additional information) 100 reference values, 20000 samples

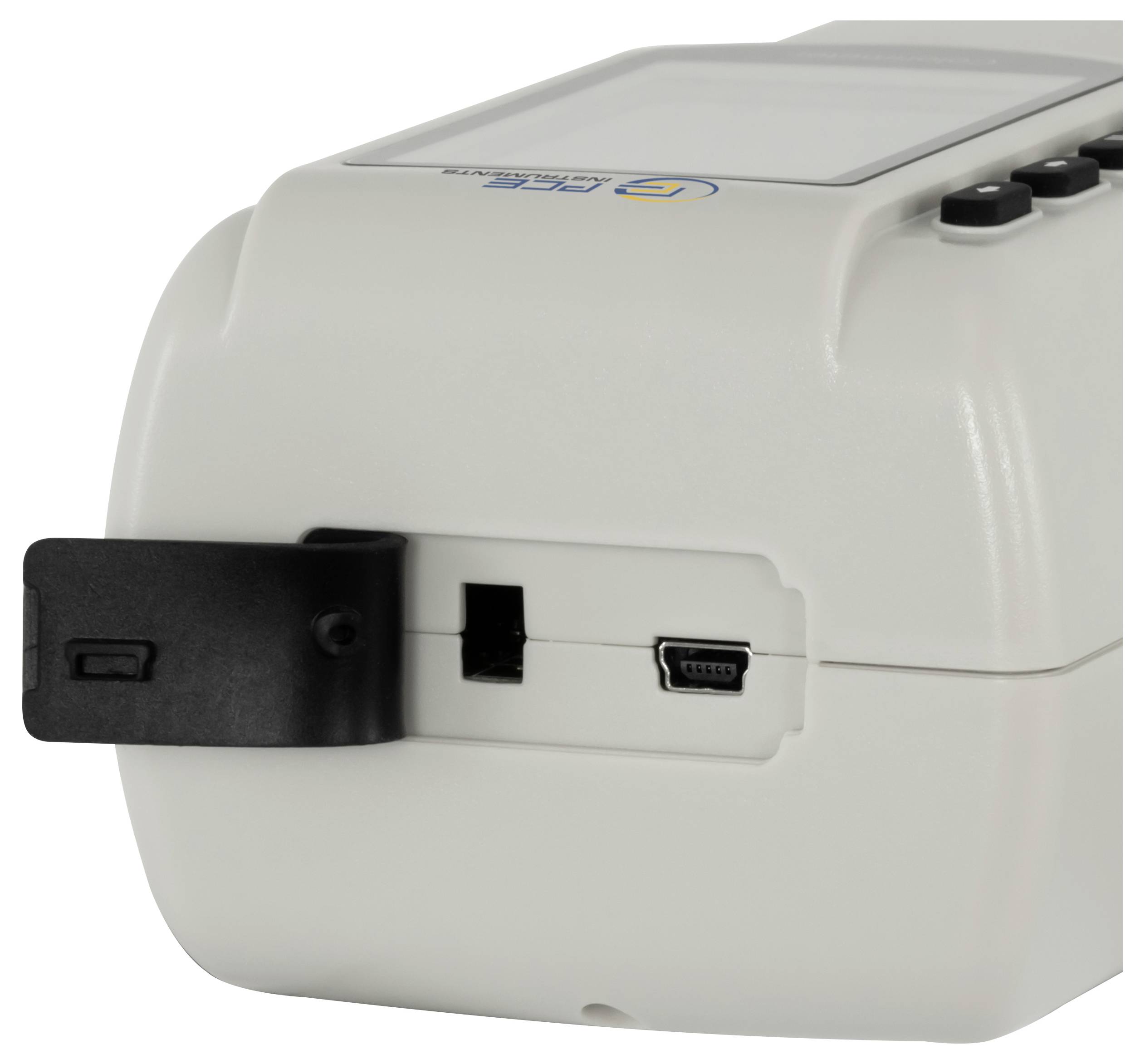

- Interface Mini-USB, RS232
- Sensor silicon photodiode
- Repeatability 0.03 ΔE*AB
- LIGHT SOURCE D65, A, C, D50, F2, F6, F7, F8, F10, F11, F12
- Measurement time 0.4 s.
- Colour spaces XYZ, LCH, CIE RGB, CIE LUV, CIE Lab, WI (whiteness), YI (yellowish grade)
- Color difference ΔE* AB,ΔE( h),ΔE* UV,ΔE* 94,ΔE*CMC ( 2: 1),ΔE*CMC ( 1: 1),ΔE* 00

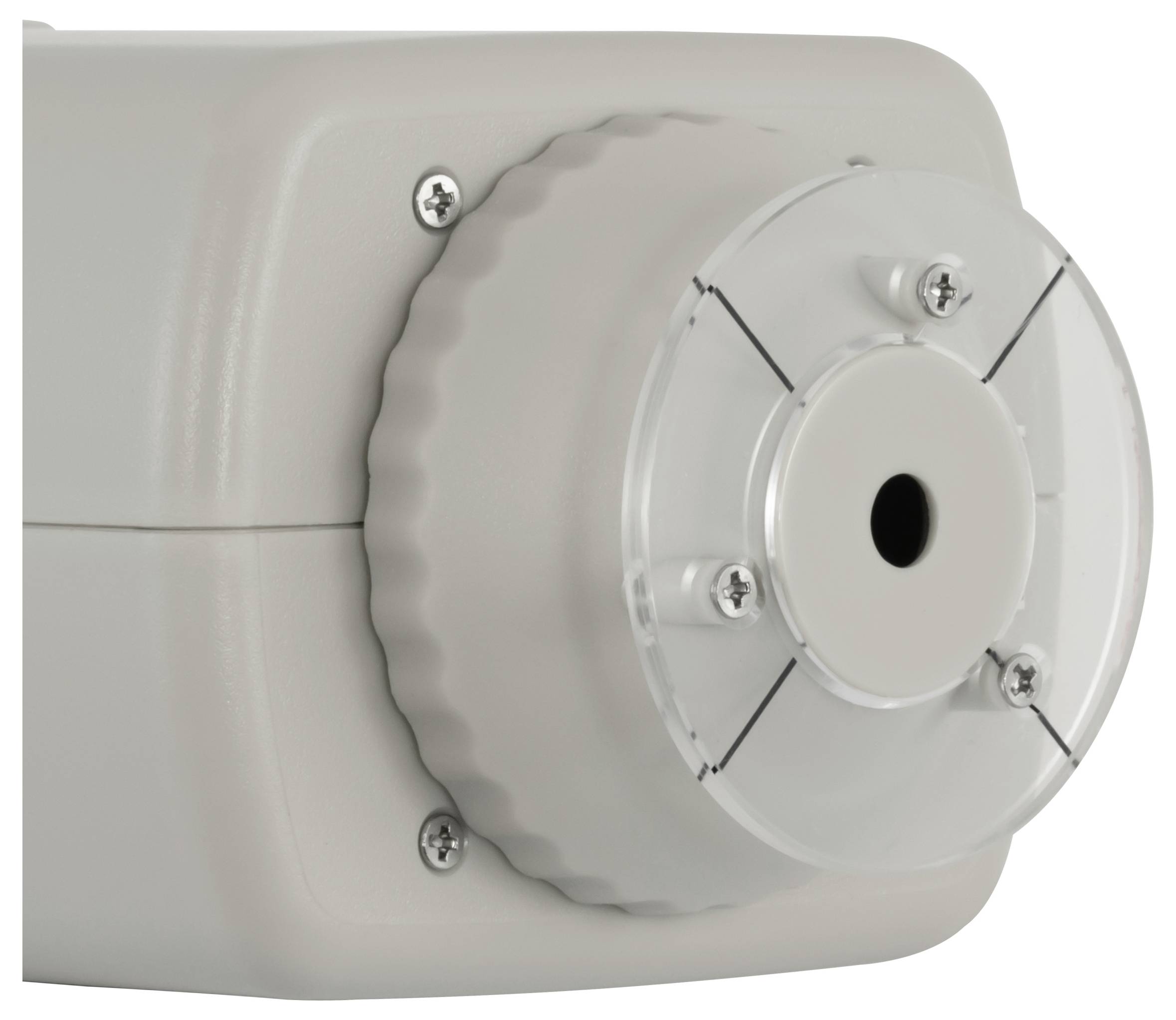

- Measurement hole Ø 4 mm, Ø 8 mm (changeable)
- Measuring geometry 8°/d
- Observer 10°
- Calibration Selectable between white and black calibration
- Menu language English (US), Chinese
- Protection class (device) IP20
- Voltage supply: 5 V DC / 2 A
- Connector type for device Euro plug
- Battery/battery 1 x 3.7 V internal , lithium-ion battery
- Capacity 3200 mAh
- Operating conditions 0 ... 40 °C , 0 ... 85 % r.F.
- Storage conditions -20 ... 50 °C , 0 ... 85 % r.F.
- Dimensions ( L x W x H ) 205 x 67 x 80 mm
- Weight 500 g.
- Product type
Colorimeter
- Factory colour
White
- Width
67 mm
- Height
80 mm
- Weight
500 g
- Dim
(L x W x H) 205 x 67 x 80 mm
- Connector
USB
- Features
Software included
- Length
205 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812475 PCE Instruments PCE-CSM 5-ICA Colorimeter
User & Safety Instructions
User & Safety Instructions 3812475 PCE Instruments PCE-CSM 5-ICA Colorimeter
Description
The colorimeter has been specially developed for quality assurance and has a high accuracy. The color measuring device allows you to select different color spaces for measurements (CIE LAB, XYZ, LCH, RGB, LUV). In addition, the color measuring device has two replaceable measurement attachments with measurement openings of 4 or 8 mm diameter.
After a measurement, the result can be used as a reference value and further samples can be determined with the colorimeter. These show the deviation from the reference value in addition to the actual measurement result. The measured values are automatically saved by the color measuring device. Up to 100 reference values and up to 20000 samples can be stored. It is also possible to transfer the stored values to a PC via the USB interface. A special PC software is included in the scope of delivery.
This text is machine translated.
After a measurement, the result can be used as a reference value and further samples can be determined with the colorimeter. These show the deviation from the reference value in addition to the actual measurement result. The measured values are automatically saved by the color measuring device. Up to 100 reference values and up to 20000 samples can be stored. It is also possible to transfer the stored values to a PC via the USB interface. A special PC software is included in the scope of delivery.
This text is machine translated.
Scope of delivery
- 1 x color meter PCE-CSM 5-ICA
- 1 x 3.7 V rechargeable battery
- 1 x transport case
- 1 x power supply 5 V, 2 A
- 1 x calibration plate white
- 1 x PC-Software
- 1x user manual
- 1 x ISO calibration certificate
