Name: PCE Instruments PCE-CSM 8-ICA Colorimeter
Brand: PCE Instruments
SKU: 3812478

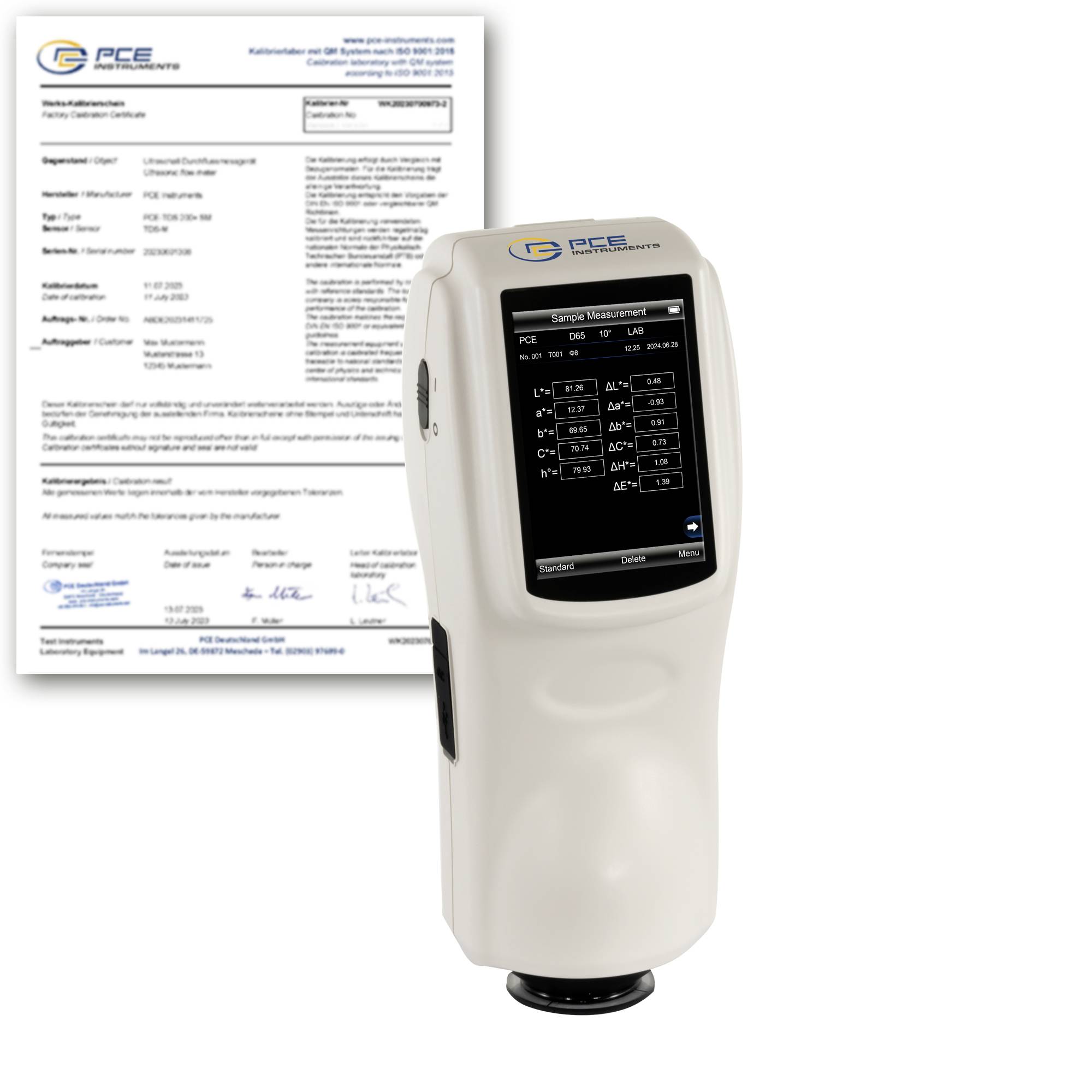

A handheld PCE measuring device stands in front of a calibration certificate document, showing a touchscreen with sample measurement values.

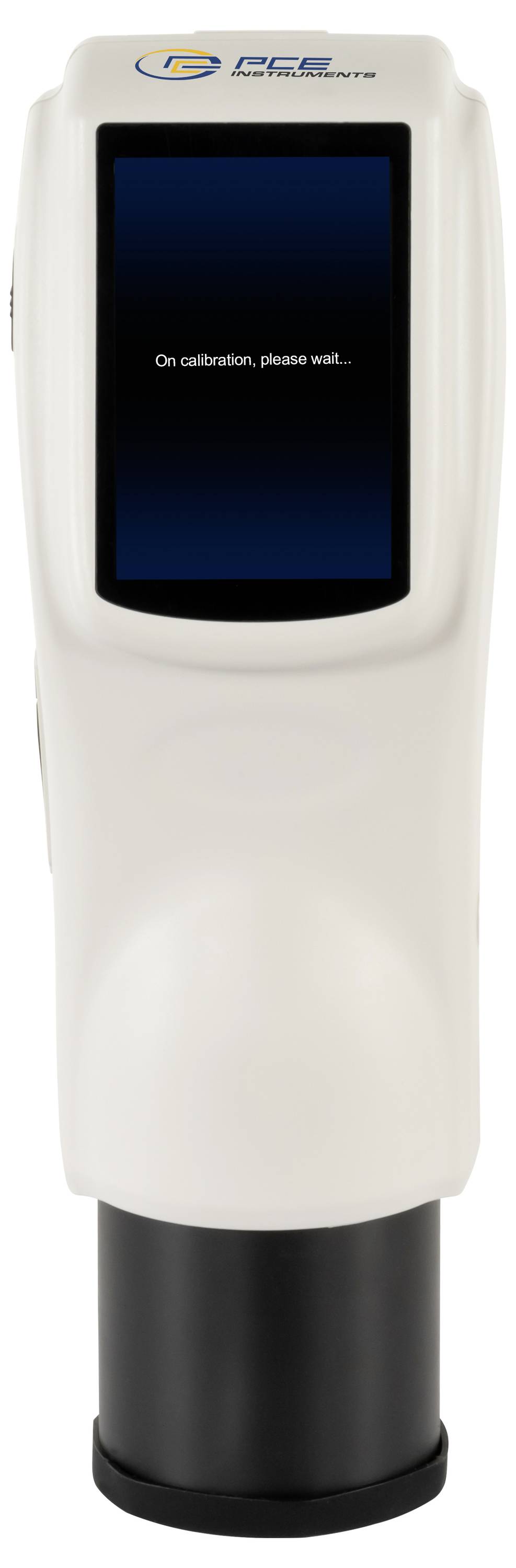

Handheld calibration device with a screen displaying 'On calibration, please wait...'<br>

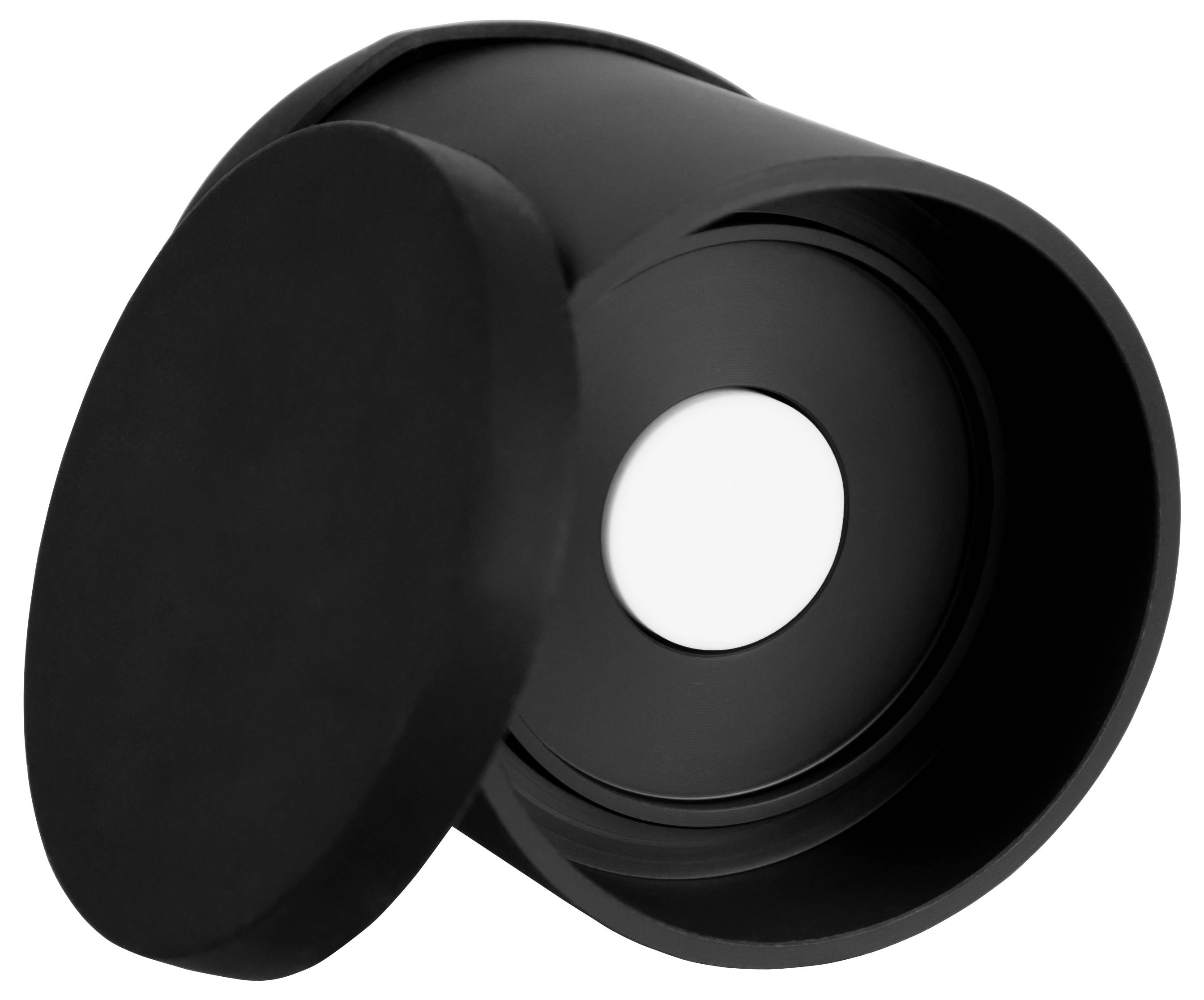

Black cylindrical jar with a separate lid, shown open to reveal an empty white interior.<br>

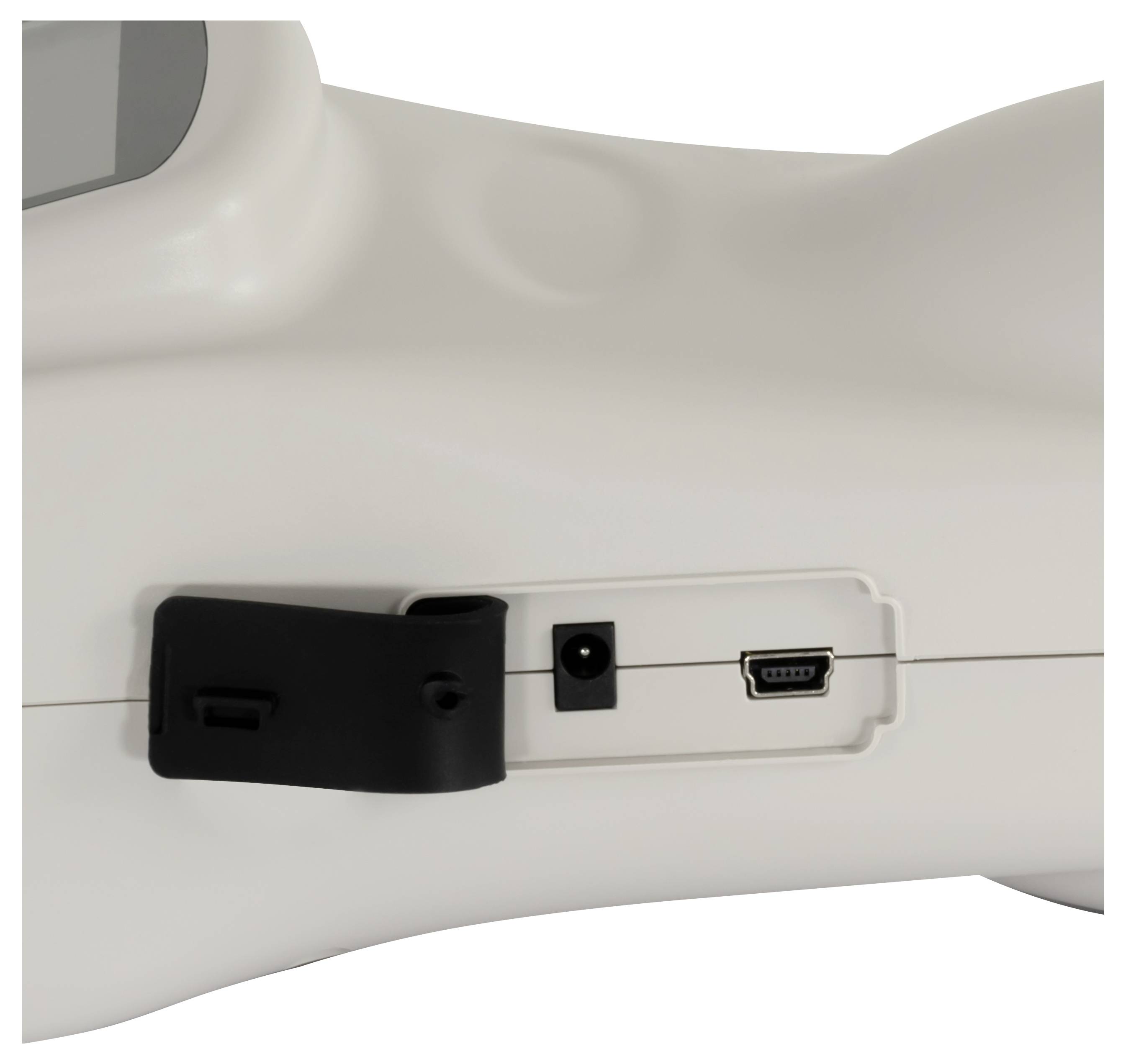

Close-up of a device port cover showing a black hinged cap partially open beside a USB port and small sensor on a white surface.

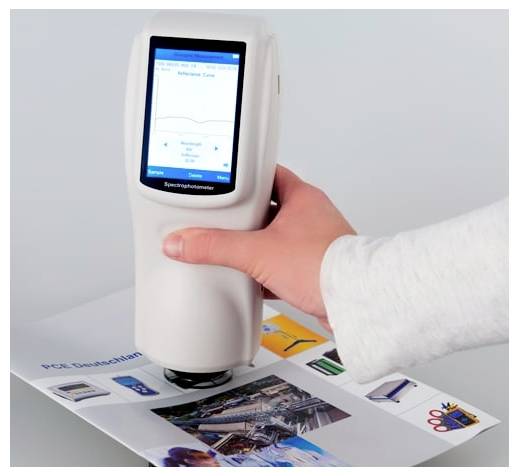

A hand holds a handheld spectrophotometer over a printed color test sheet to measure colors.

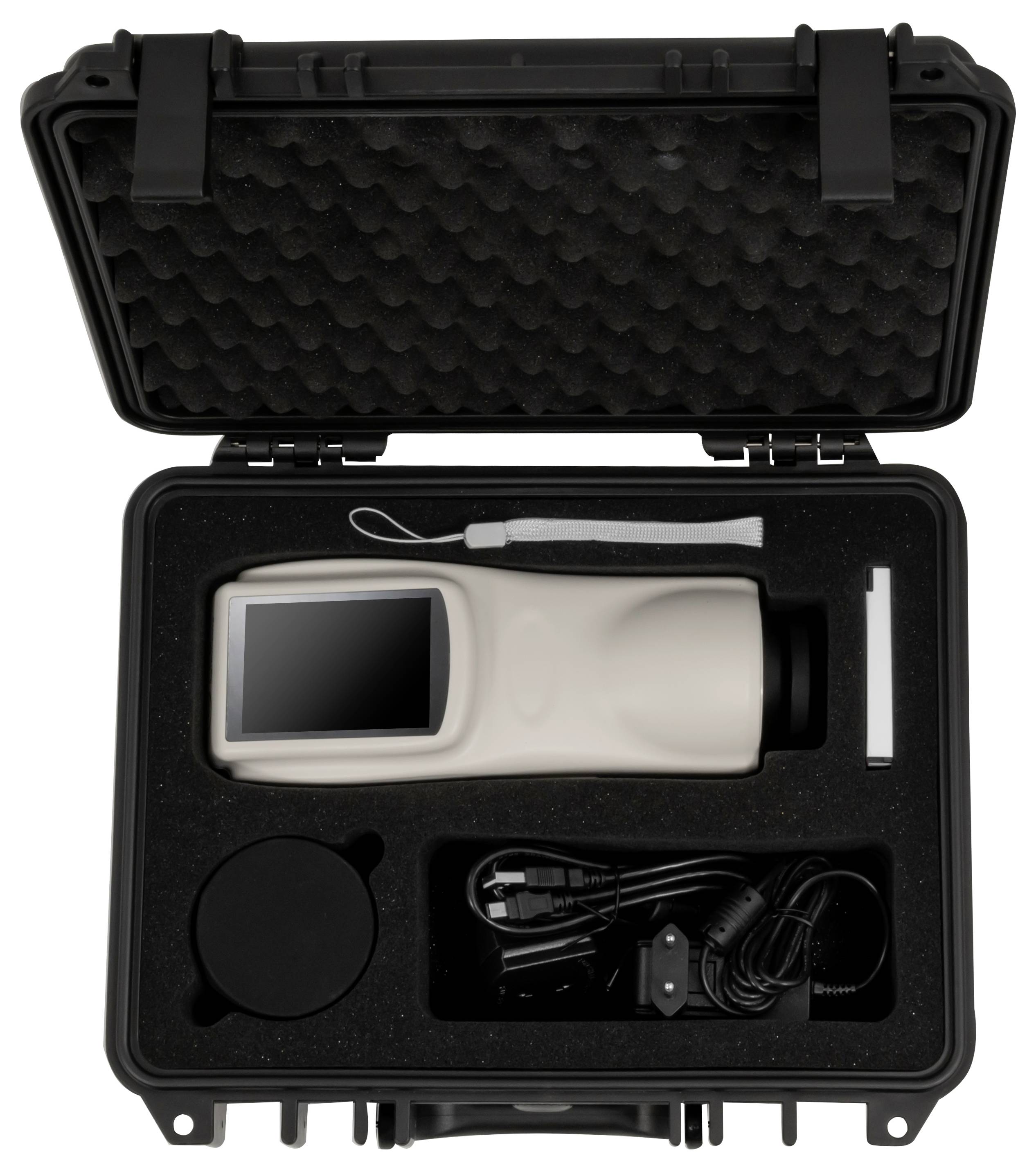

Open hard case containing a handheld device, strap, accessory cap, and charging cable arranged in foam insert.

1/6

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCE instruments spectrophotometer PCE-CSM 8-ICA

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-CSM 8-ICA
Easy to use touch-screen
Large 3.5 inch display
Incl. Data analysis software
Powerful Li-ion battery
Large storage capacity
USB interface for convenient data analysis
Incl. ISO calibration certificate

Technical specifications

General Technical Data
Display type TFT touch-screen
Display size 3.5 inches
Storage medium Internal memory
Memory capacity: 10000 values
Storage capacity (additional information) 1000 default values, 10000 sample values
Interface Mini-USB
Sensor silicon photodiode arrangement
Light source combined LED,Lamp: D65, A,C,D50, D55, D75, F2, F6, F7, F8, F10, F11, F12
Measurement time 1.5 s.
Color spaces CIE Lab, XYZ, Yxy, LCH, CIE VUV, Hunterlab
Color difference ΔE*AB,ΔE*UV,ΔE*94,ΔE*CMC(2:1),ΔE*CMC(1:1),ΔE*00,ΔE(h)
Measurement hole Ø 8 mm
Wavelength range 400 ... 700 nm
Observer 2°, 10°
Calibration Selectable between white and black calibration
Menu language English (US), Chinese
Protection class (device) IP20
Voltage supply: 5 V DC / 2 A
Connector type for device Euro plug
Battery/battery 1 x 3.7 V internal , lithium-ion battery
Capacity 3200 mAh
Operating conditions 0 ... 40 °C , 0 ... 85 % r.F.
Storage conditions -20 ... 50 °C , 0 ... 85 % r.F.
Dimensions ( L x W x H ) 230 x 90 x 77 mm
Weight 600 g

Product type: Colorimeter

Factory colour: White

Width: 90 mm

Height: 77 mm

Weight: 600 g

Dim: (L x W x H) 230 x 90 x 77 mm

Connector: USB

Features: Software included

Length: 230 mm

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3812478 PCE Instruments PCE-CSM 8-ICA Colorimeter

User & Safety Instructions

User & Safety Instructions 3812478 PCE Instruments PCE-CSM 8-ICA Colorimeter

Description

The spectrophotometer is the ideal instrument for recording and analyzing spectra. Unlike other spectrophotometers, this device covers a variety of parameters. In addition to the normal use of the spectrophotometer with rechargeable battery, it is also possible to connect this spectrophotometer to an external power supply so that it can be easily operated with mains power. In addition, the spectrophotometer has the advantage of being able to connect it to a computer. The accompanying software thus enables a comprehensive spectral analysis directly at the workstation. In practical terms, the spectrophotometer can even be operated using the software. The result is that the measurement process can be carried out directly on the computer and the results are displayed on the screen in tabular form. There is therefore no need to take measurements with the spectrophotometer and evaluate them at a later time.

Nevertheless, this possibility exists, for example, to take measurements where no computer is available. The spectrophotometer is often used for quality control, which has to take place directly at the production site for various reasons. At a later date, the spectrophotometer can still be read from the computer to analyze and save the measurements.

This text is machine translated.
