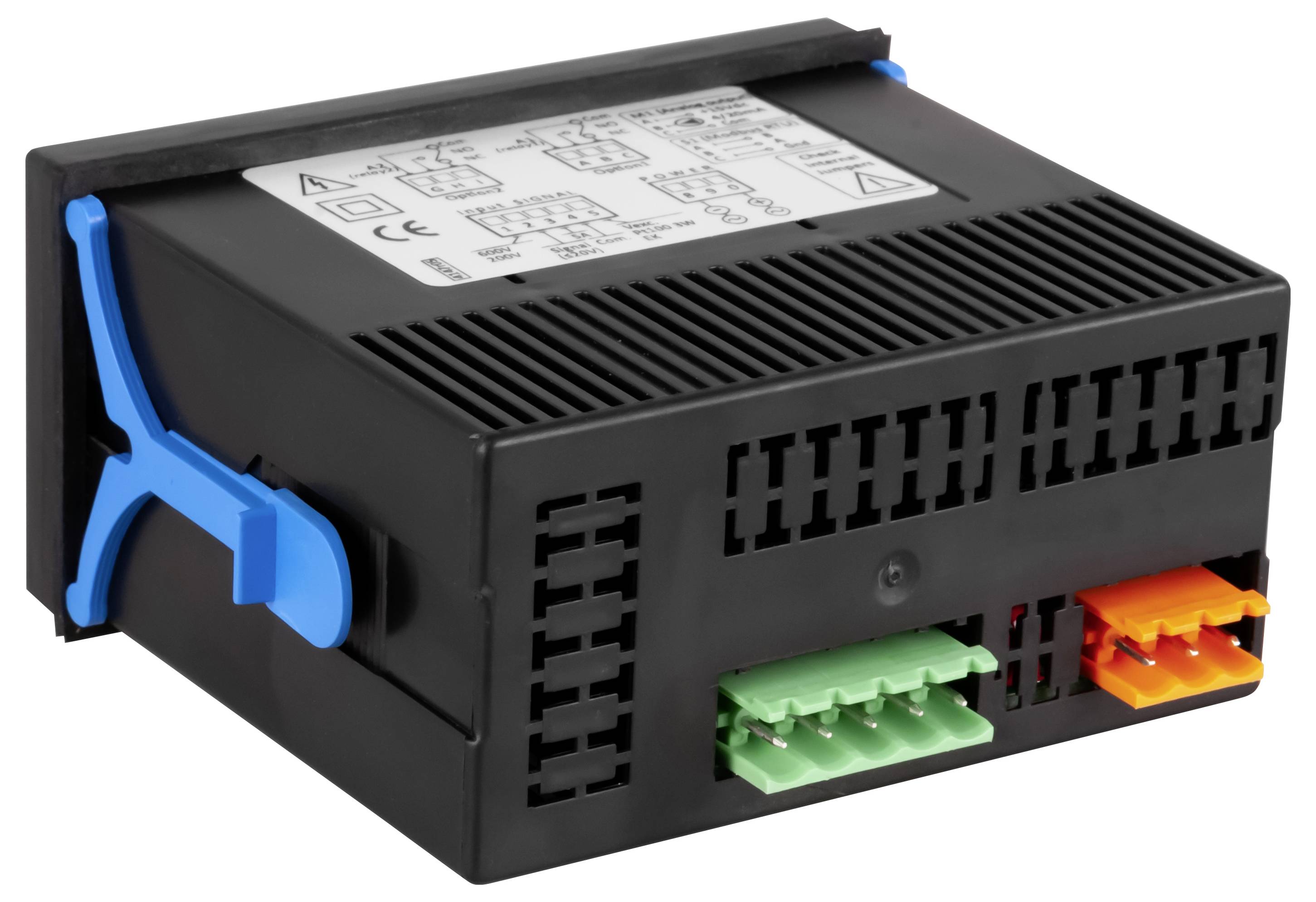

PCE Instruments PCE-DPD-U Digital display
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Built-in measuring instrument
- Front sided IP 65
- Different units possible
- Digital display for the industrial process
- Optional outputs
- 4-digit digital display
- Many sensors can be connected
Technical specifications
- Input 2-, 3- conductor PT100, PT500, PT1000, Ni100, Ni200, Ni1000 Thermocouples type K, J, E, N, L, R, S, B, T, C. Potentiometer: 500 ... 20 kOhm Resistance: 5K ... 50 kOhm Process signals: 4 ... 20 mA, 0 ... 10 V Frequency: 0 ... 100 Hz DC voltage 60 mV, 200 mV 2 V, 20 V, 200 V, 600V DC current 20 mA, 5 A AC VOLTAGE 2 V, 20 V, 200 V, 600 V. AC current 20 mA, 5 A measurement rate 3 / second Resolution 16 bit Accuracy 0.1 % Internal resistance Voltage measurement: 1 MΩ Current measurement: 12 Ω Scaling 21 points Display 4-digit 7-segment LED display, three-color Display range -1999 ... 9999 Outputs relay, Anaog, Seriel with optional output cards Ambient temperature Operating: 0 °C ... 55 °C Storage: -20 °C ... +70 °C Dimensions digital display 96 mm x 48 mm x 91 mm Panel cut-out 92 mm x 45 mm (according to DIN) Supply voltage 18 ... 265 V AC/DC Protection class front: IP 65 Weight 200 g Mounting Mounting clips with clamping screws, electrical connection via terminal strip Housing Digital display Robust plastic housing
- Product type
Digital display
- Reading type
Voltage
- Type
PCE-DPD-U
- Reading range (max.)
600 V
- Recess width
92 mm
- Display (counts)
9999
- Recess height
45 mm
- Dim
(L x W x H) 96 x 48 x 91 mm
- Features
Dual reading dial
- Width
48 mm
- Height
91 mm
- Length
96 mm
Manufacturer's standards (no certificate)
Documents & Downloads
Datasheet
Datasheet 2452393 PCE Instruments PCE-DPD-U Digital display
User & Safety Instructions
User & Safety Instructions 2452393 PCE Instruments PCE-DPD-U Digital display
Description
Built-in measuring instrument Universal display for different signals / 4-digit / optional output cards / modular design / IP65 Front the built-in measuring instrument is configurable as AC and DC voltmeter (up to 600 Vac / DC), AC and DC ammeter (up to 5 AAC / DC). The built-in measuring instrument also shows measured values of process signals (mA, VDC), thermocouples, resistive temperature sensors (Pt, Ni, PTC and NTC), resistors, potentiometers and frequency. The built-in measuring instrument can be configured via the front buttons. The built-in measuring instrument is installed in a control panel cut-out with the standard size 96 x 48 mm (1/8 DIN). The measured value is scalable with 4 digits (9999 / -1999). A quick access function for alarm setpoints, external control for activating predefined functions, Eco mode for low consumption, selectable double scaling, 5 configurable brightness levels are also available on the built-in measuring instrument. A single universal power supply 18 ... 265 V AC / DC makes the built-in measuring instrument an easy to use process measuring instrument. Optional modules for output and control (relay, analogue output, Modbus RTU) are available to the user of the built-in measuring instrument.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x panel-mounted measuring instrument PCE-DPD-U
- 2 x terminals
- 1x user manual
