PCE Instruments PCE-DSX 5-ICA Strobe No. of LEDs (details):16 x

The stroboscope is a modern measuring device for contact-free determination of speeds and for the observation of fast moving or rotating objects. It uses an LED light source which stands out due to its high brightness, long life and reliable triggering. The flash frequency of the stroboscope is controlled electronically and ensures particularly stable and precise output.

The measuring range of the strobe is 60 … 100,000 FPM (1 … 1,666.66 Hz), the resolution is 1 FPM or 0.01666 Hz, and the speed can be measured without contact with an accuracy of ±0.001 % of the setting.

Thanks to the finely adjustable flashing LED frequency, the stroboscope can be perfectly synchronized to the movement speed of the object to be examined. Thus rotating parts can be observed in detail and turning speed, surface condition and operating condition can be precisely analyzed.

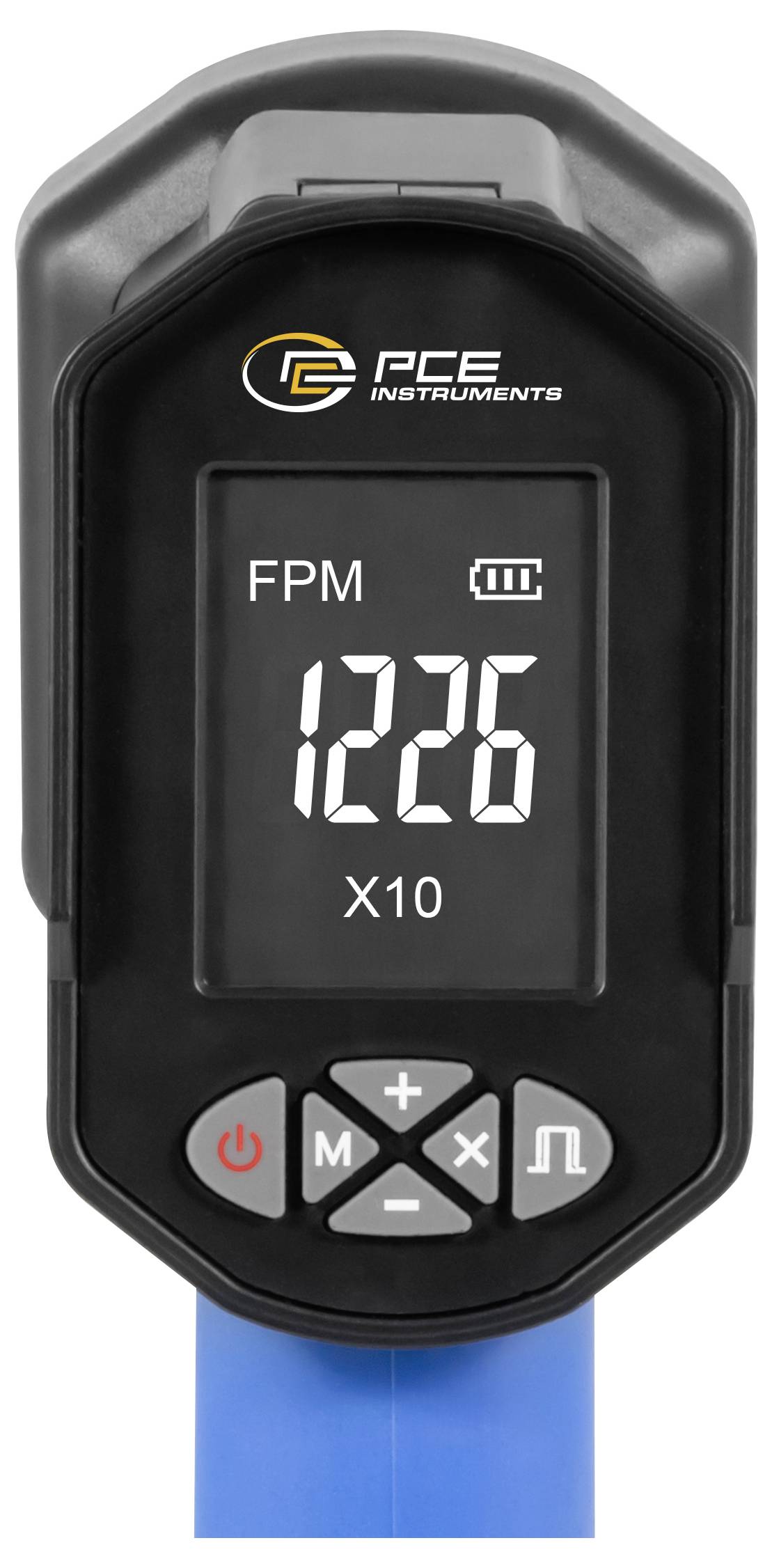

This stroboscope has a well-readable LCD display that clearly shows all relevant measurements and settings. It is operated via an intuitive key control, with which modes such as FPM (flash frequency), Hz (frequency) and brightness can be selected and adjusted directly. The phase shift can be set individually to observe the object from different angles.

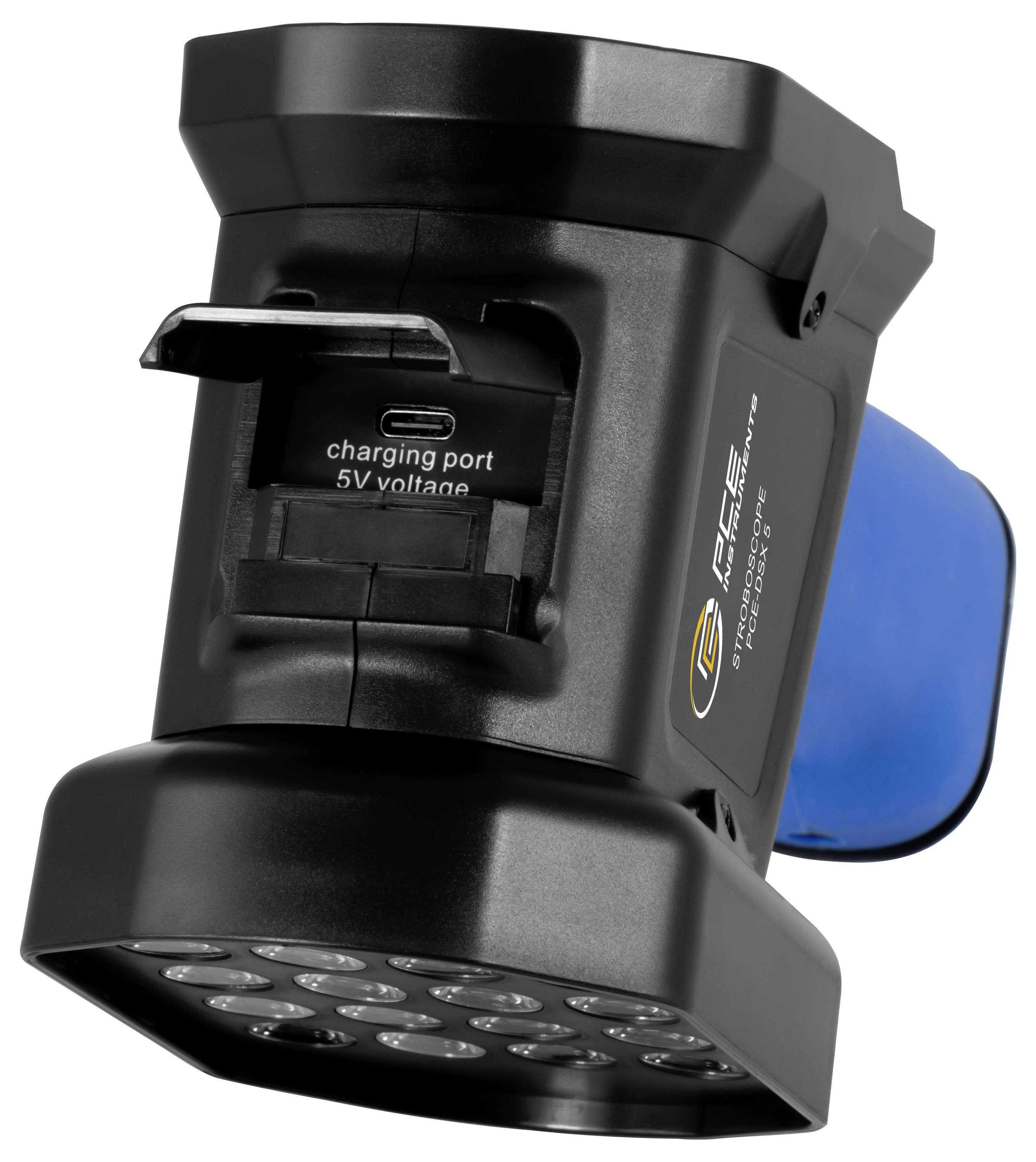

Power supply is provided by an integrated lithium rechargeable battery with 7.4 V and 2000 mAh, which can be charged easily via the USB interface. The stroboscope is compact, light and therefore easy to transport.

Applications include measuring and monitoring motors, fans, pumps or transmissions, quality control of high-speed production lines, and vibration diagnosis. Typical applications are HVAC systems, printing and paper industries, textile, medical, light industry and mechanical processing.
