PCE Instruments PCE-EMF 10 Magnetic field tester

The EMF meter is a 3 in 1 measuring instrument for measuring electrical field strength, magnetic field strength and flux density. The EMF meter measures the electrical field strength in the range of 1 … 1999 V/m with a resolution of 1 V/m. The magnetic field strength can be detected in the ranges 0.1 … 999.9 mg with a resolution of 0.1 mg and 0.01 … 99.99 µT with a resolution of 0.01 µT. The power flux density is measured in the range of 0.1 … 999.9 mW/m² with a resolution of 0.1 mW/m². The accuracy of all measurements is ±5 %. The bandwidth ranges from 40 Hz to 10 GHz. The magnetic field measurement is carried out via three axes.

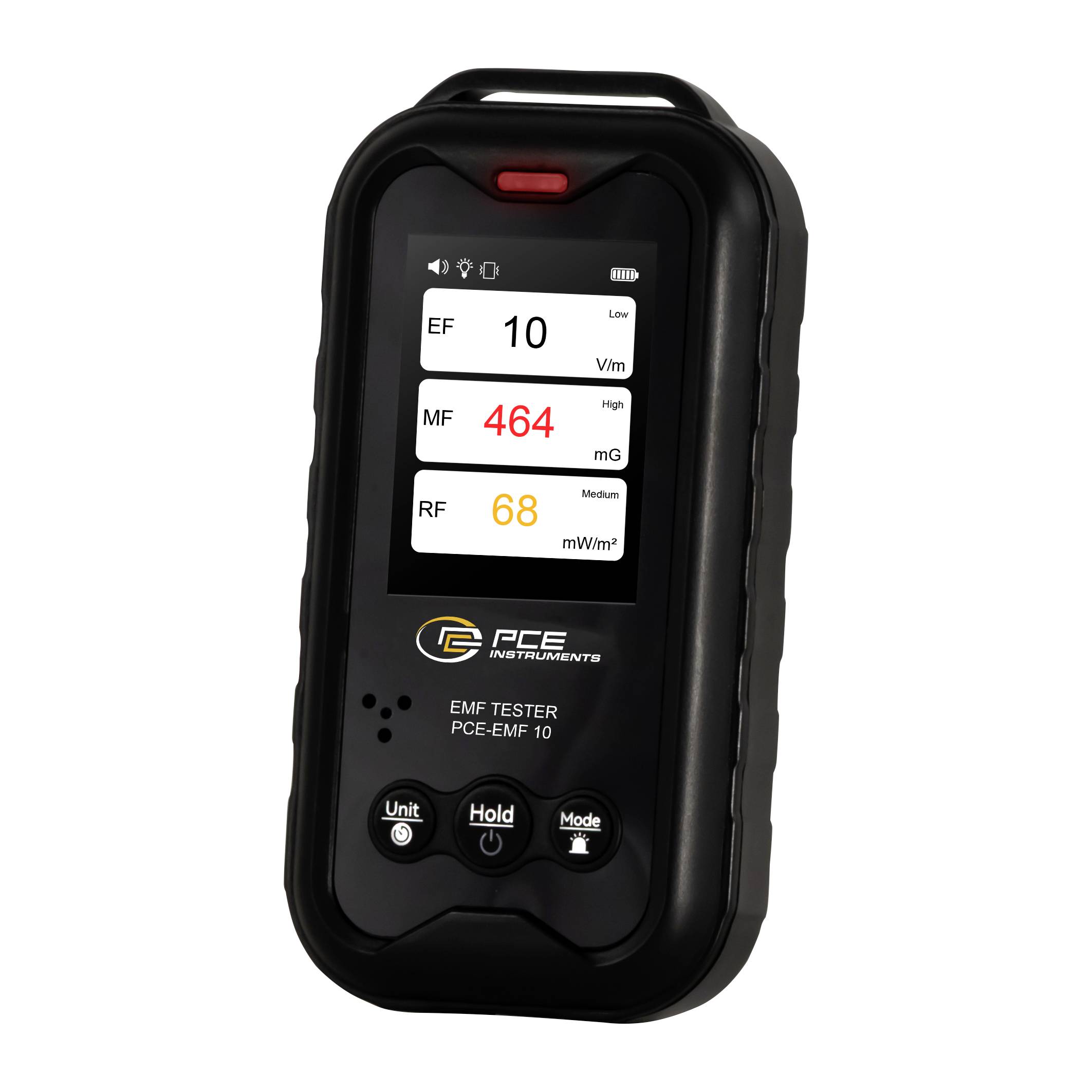

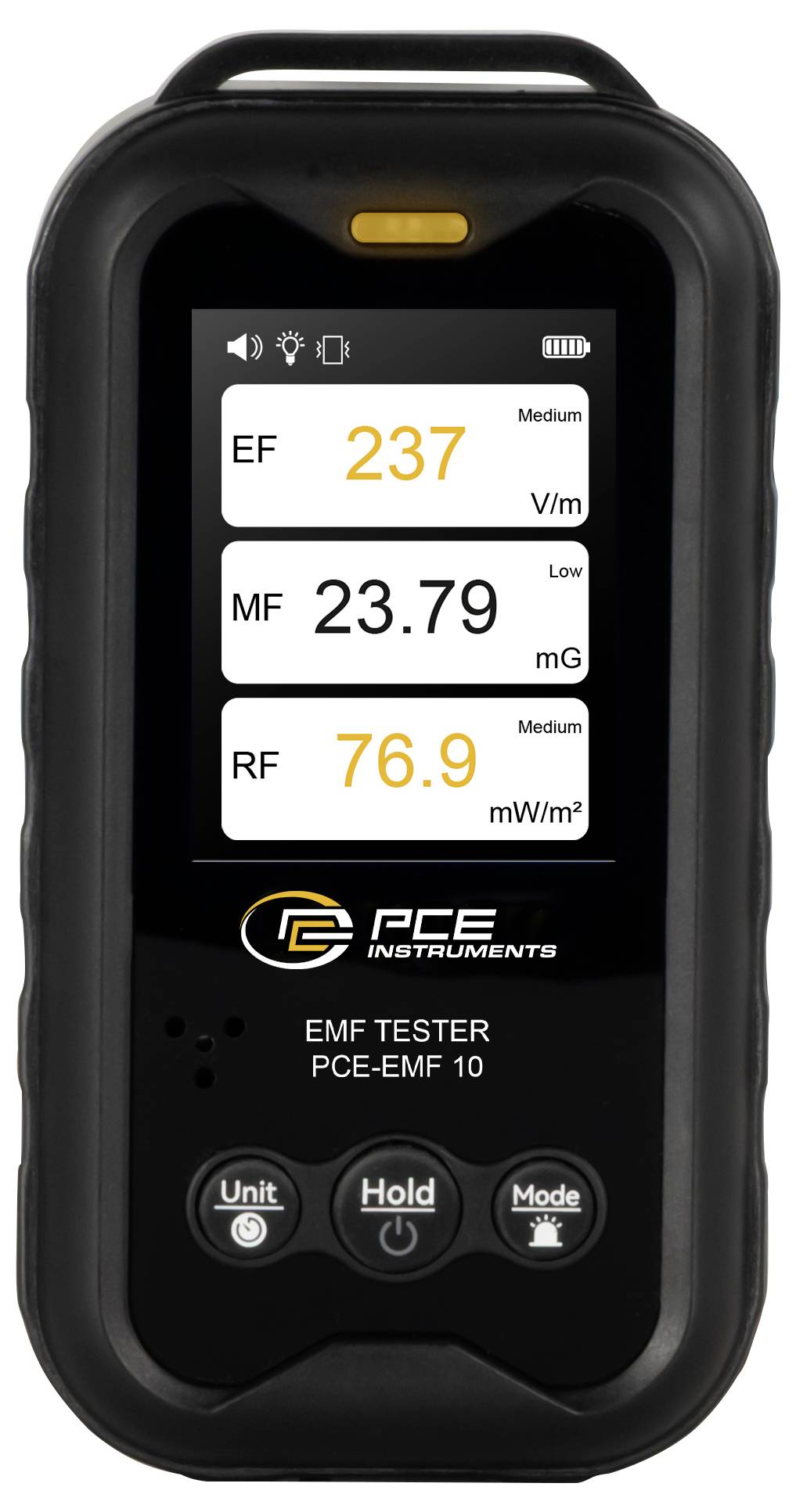

The EMF meter has a 2.4 inch TFT color display and four switchable display modes. In the three measurement modes for power flux density, electrical field strength and magnetic field strength, the real-time value, the historical average value and the maximum value as well as the corresponding measurement history are displayed graphically. The overview mode displays the three measuring ranges simultaneously with the respective alarm states. Measuring values can be held with the Hold function. The EMF meter also allows the switching of the magnetic units between µT and mg.

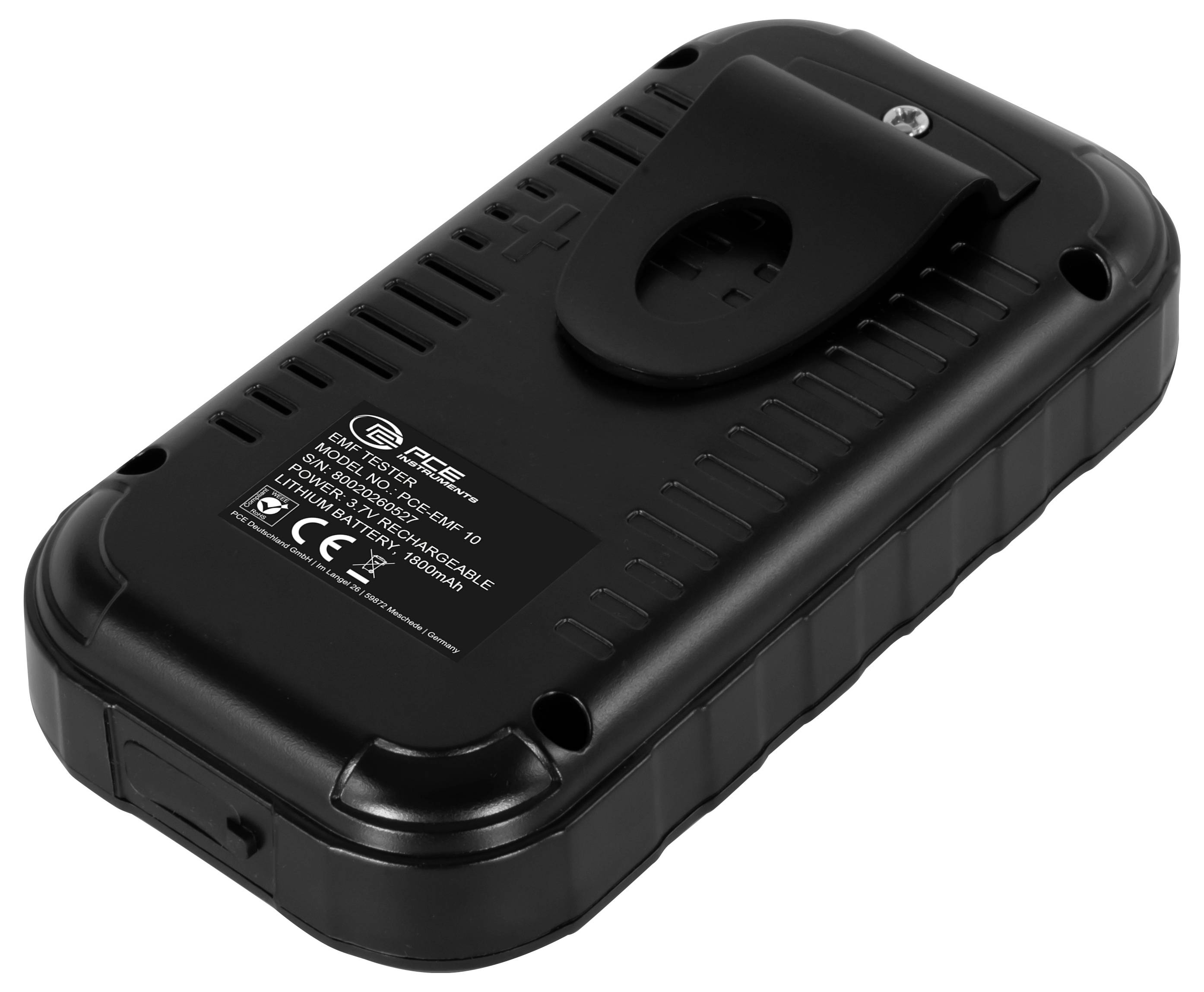

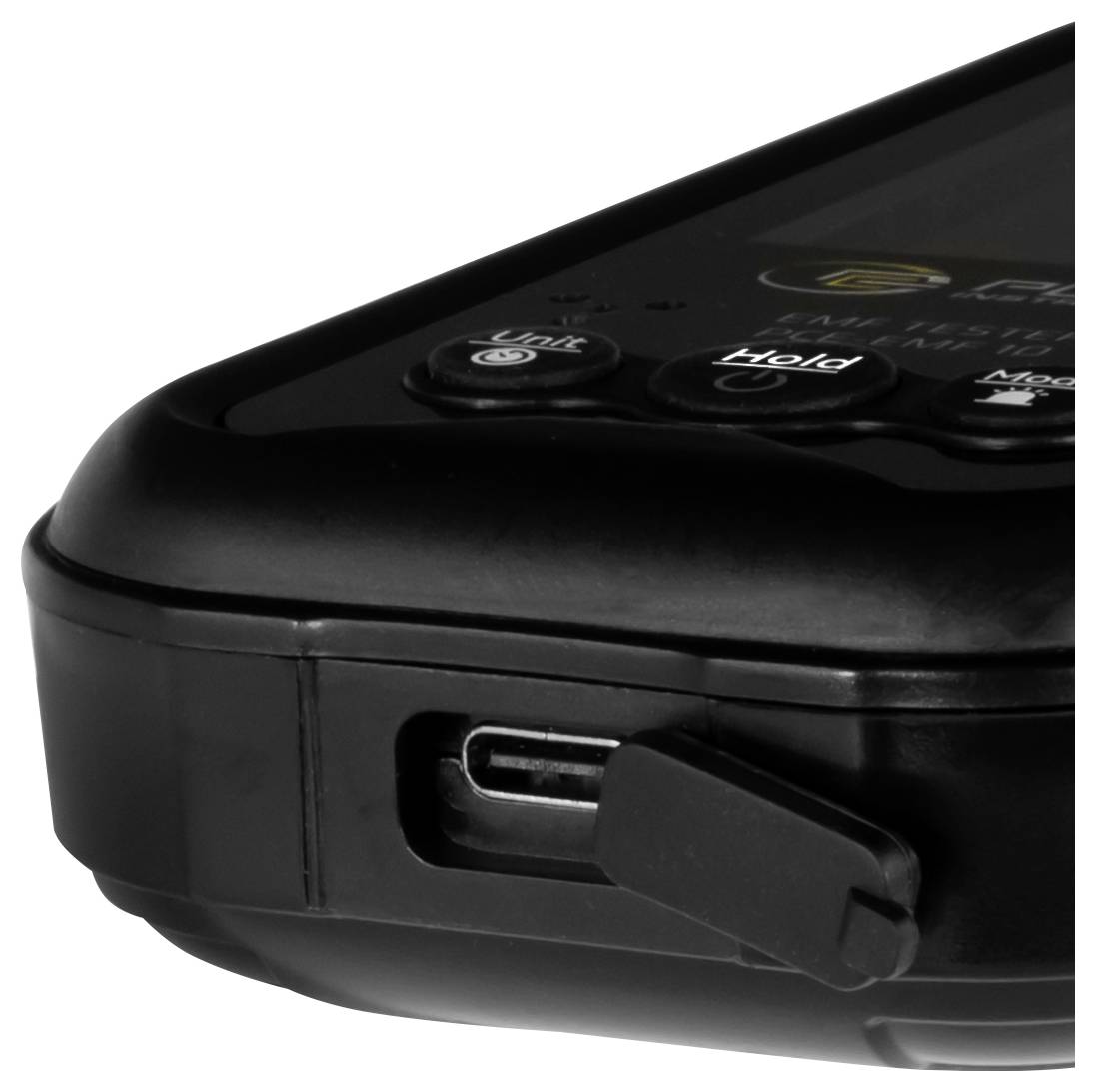

If the limit value is exceeded, the EMF measurement device warns acoustically, optically and by vibration. The automatic shut-off takes place after 15 minutes and can be deactivated. Power is supplied via an integrated lithium-ion rechargeable battery, which is charged via the USB-C interface.

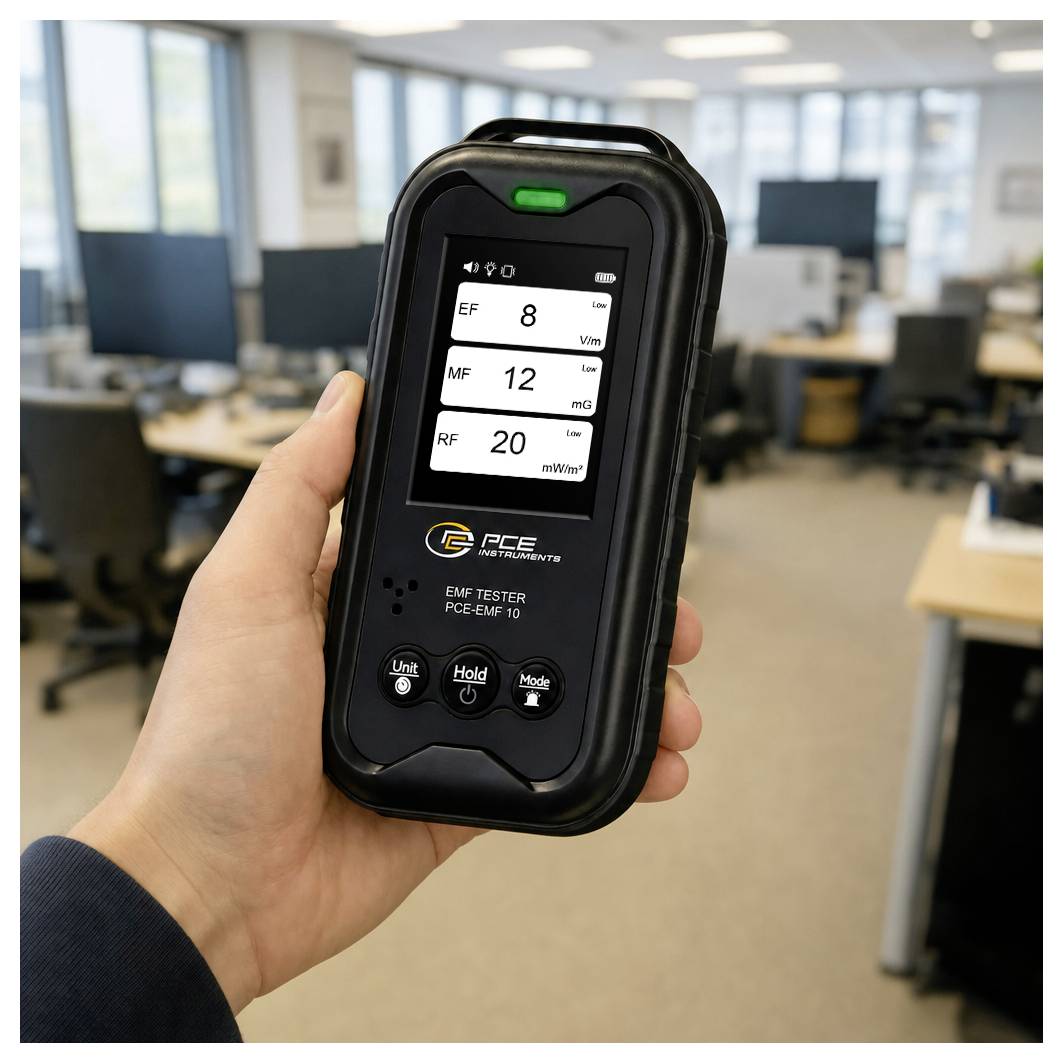

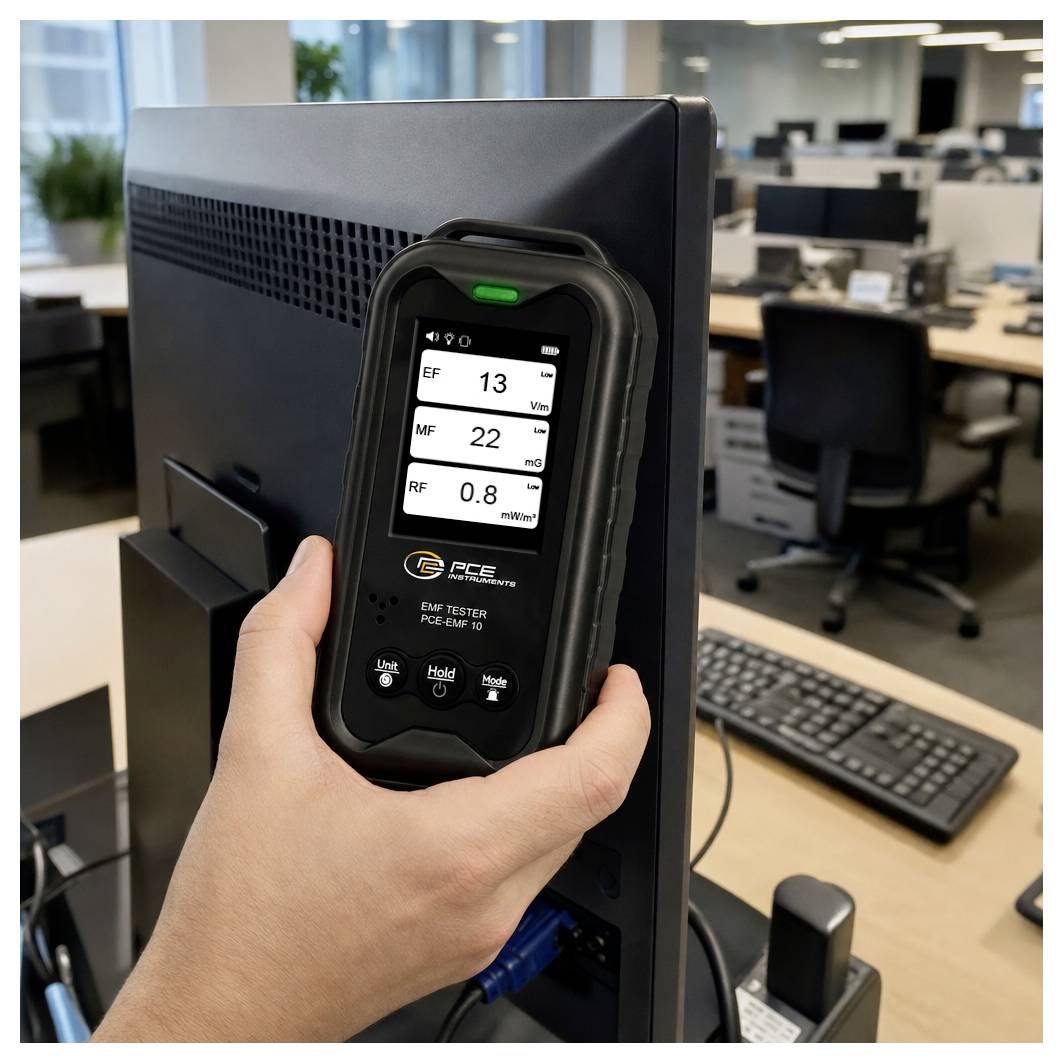

The EMF meter is suitable for detecting electromagnetic fields in living rooms, offices and computer environments as well as for measuring electromagnetic fields in the vicinity of electrical and high frequency devices
