PCE Instruments PCE-GD 5 Gas leak detector 0, -40 - 100, 80 RH, °C External sensor Calibrated to Manufacturer's standard
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCE Instruments Gas detector PCE-GD 5 for the detection of flammable gases |Humidity relative 0 … 100 % |Temperature -40 … +80 °C.
- Detection of flammable gases with color scale
- Measuring medium: Methane, hydrogen, natural gas, liquefied gas
- Optical and acoustic alarm
- Heating-up time approx. 10 s
- Reaction time: Less than 10 sec.
- USB-C interface
Technical specifications
- Humidity relative
- Measurement range 0 - 100 %
- Resolution 1%.
- Accuracy +/-3 %
- Temperature
- Measurement range -40 - +80 °C
- Resolution 0.1 °C
- Accuracy +/-1.5 °C.
- General Technical Specifications
- Display type LCD
- Display size 1.8 inches
- Interface USB-C
- Response time 10 s
- Warm-up time 10 s.
- Measuring medium: Natural gas, methane, hydrogen, liquefied gas, smoke
- Operating time: 2 h
- Optical alarm, acoustic alarm
- Dimensions sensor length: 250 mm, sensor diameter 12 mm,
- Menu language English (US), English (GB)
- Protection class (device) IP20
- Power supply 5 V DC or batteries

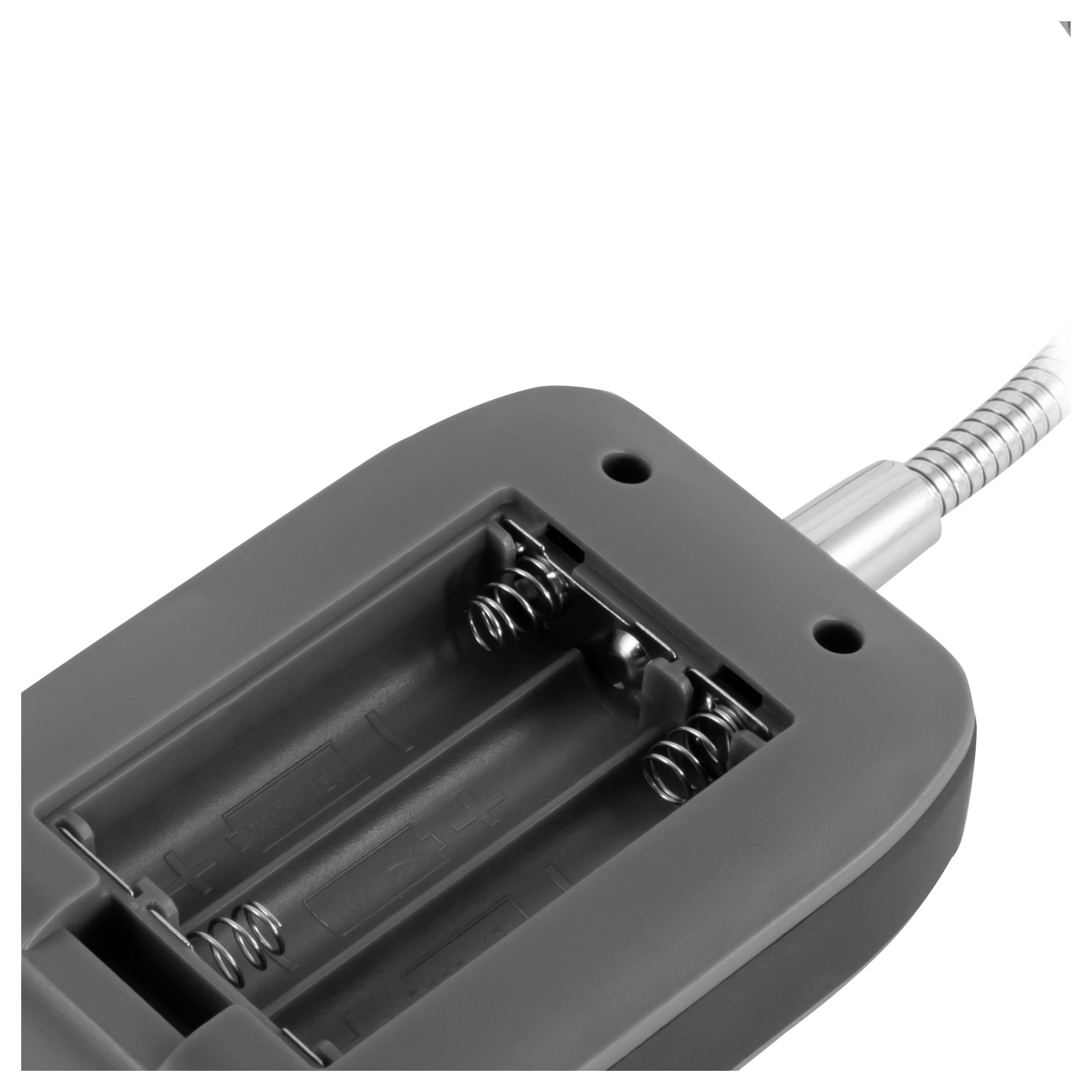

- Battery 3 x 1.5 V AAA battery , alkaline-manganese
- Capacity: 1270 mAh
- Power 1.91 Wh
- Operating conditions 0 ... 40 °C , 0 ... 90 (non-condensing)% r.F.
- Storage conditions -20 ... 60 °C , 0 ... 90 (non-condensing)% r.F.
- Dimensions (L x W x H) 80 x 60 x 25 mm.
- Weight 110 g
- Product type
Gas leak detector
- Unit of measurement
Humidity
Temperature
- Reading range
0, -40 - 100, 80 RH, °C
- Accuracy
1.5 °C
- Dim
(L x W x H) 80 x 60 x 25 mm
- Resolution
0.1 °C
- Features
External sensor
- Accuracy
1.5 °C
- Weight
110 g
- Weight, information
approx.
- Reading range (max.)
100 RH
80 °C
- Reading range (min.)
0 RH
-40 °C
- Width
60 mm
- Height
25 mm
- Length
80 mm
IP20
- Power supply (details)
5 V DC
Manufacturer's standards (no certificate)
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3841683 PCE Instruments PCE-GD 5 Gas leak detector 0, -40 - 100, 80 RH, °C External sensor Calibrated to Manufacturer's standard
Datasheet 3841683 PCE Instruments PCE-GD 5 Gas leak detector 0, -40 - 100, 80 RH, °C External sensor Calibrated to Manufacturer's standard
User & Safety Instructions
User & Safety Instructions 3841683 PCE Instruments PCE-GD 5 Gas leak detector 0, -40 - 100, 80 RH, °C External sensor Calibrated to Manufacturer's standard
Description

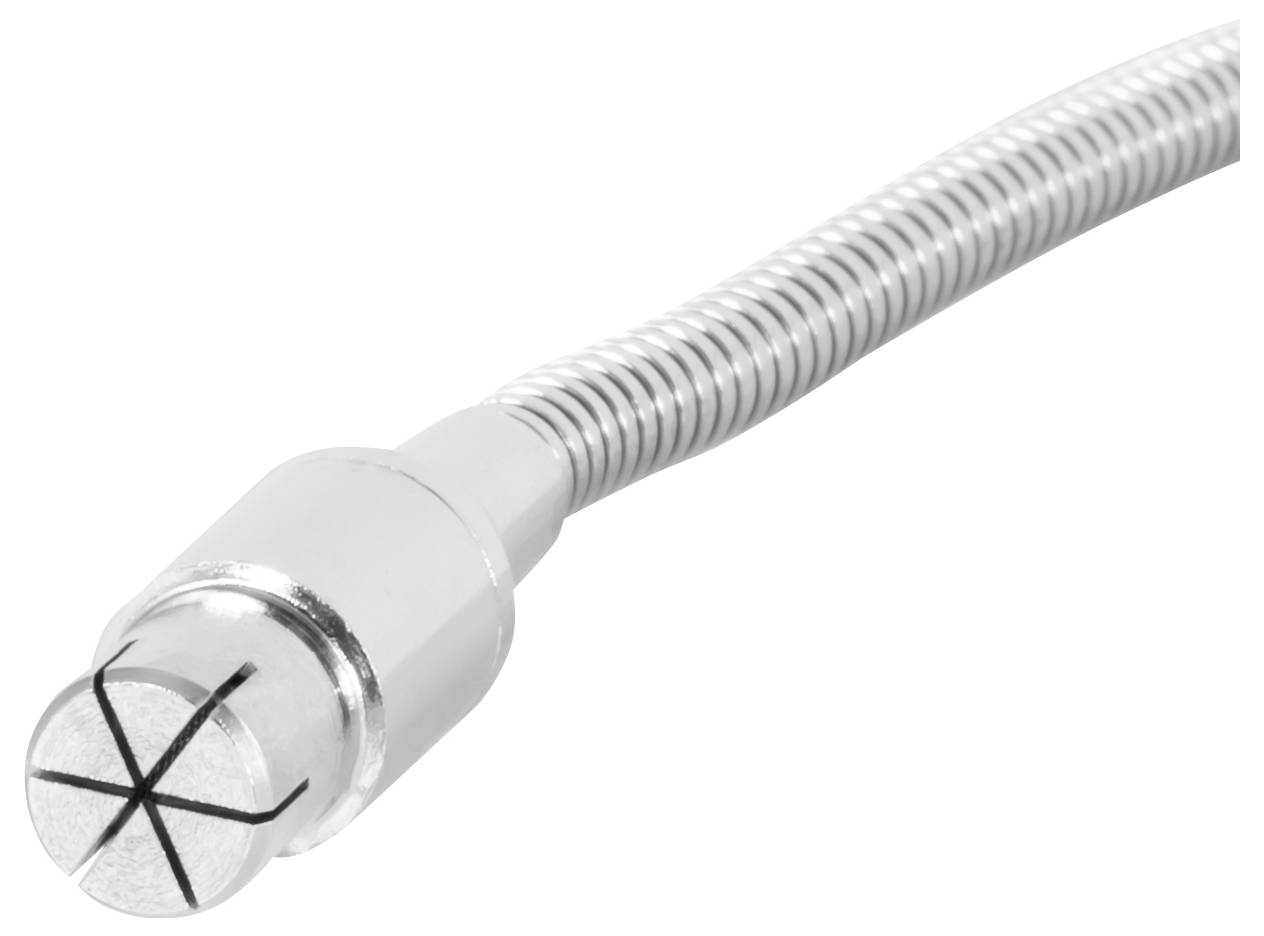

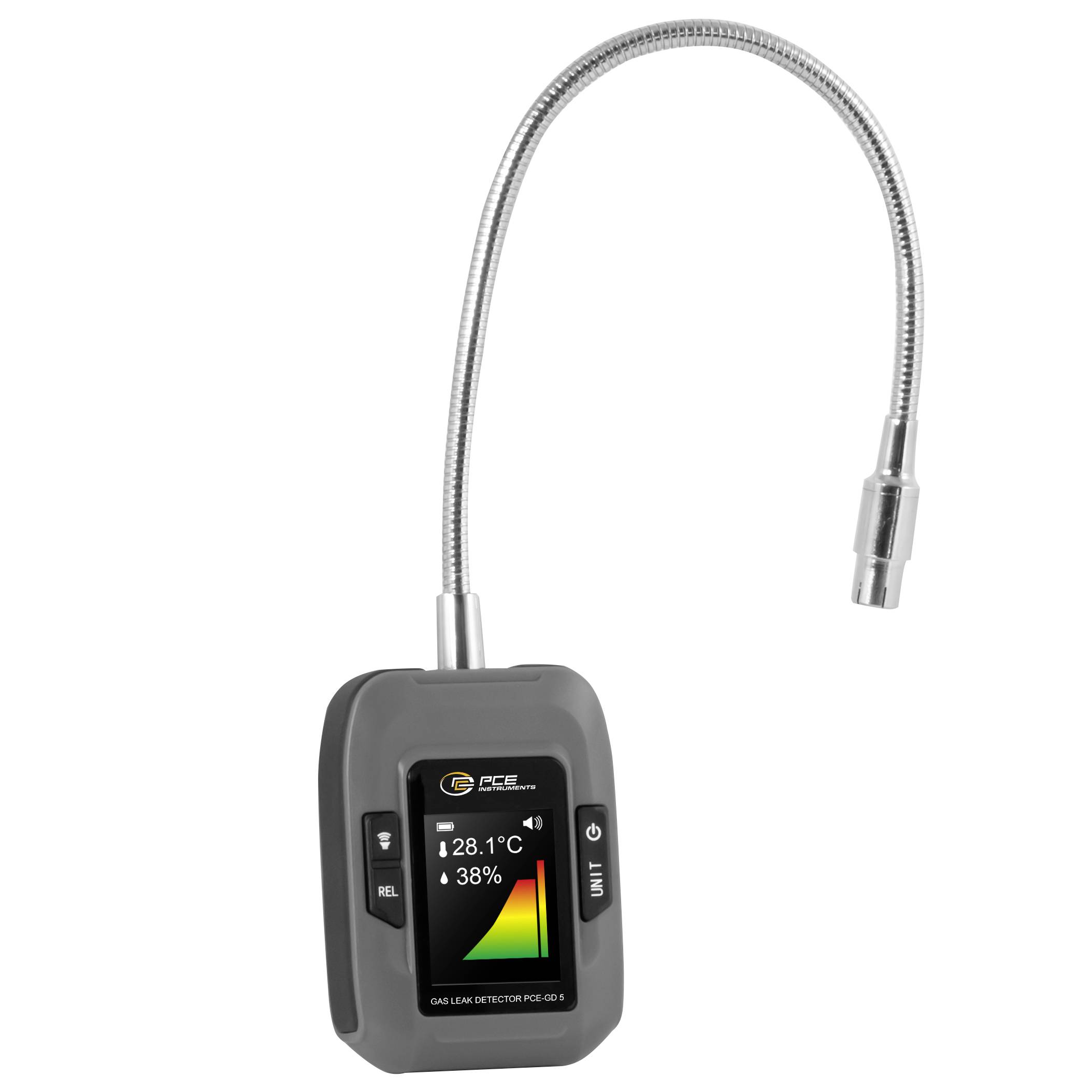

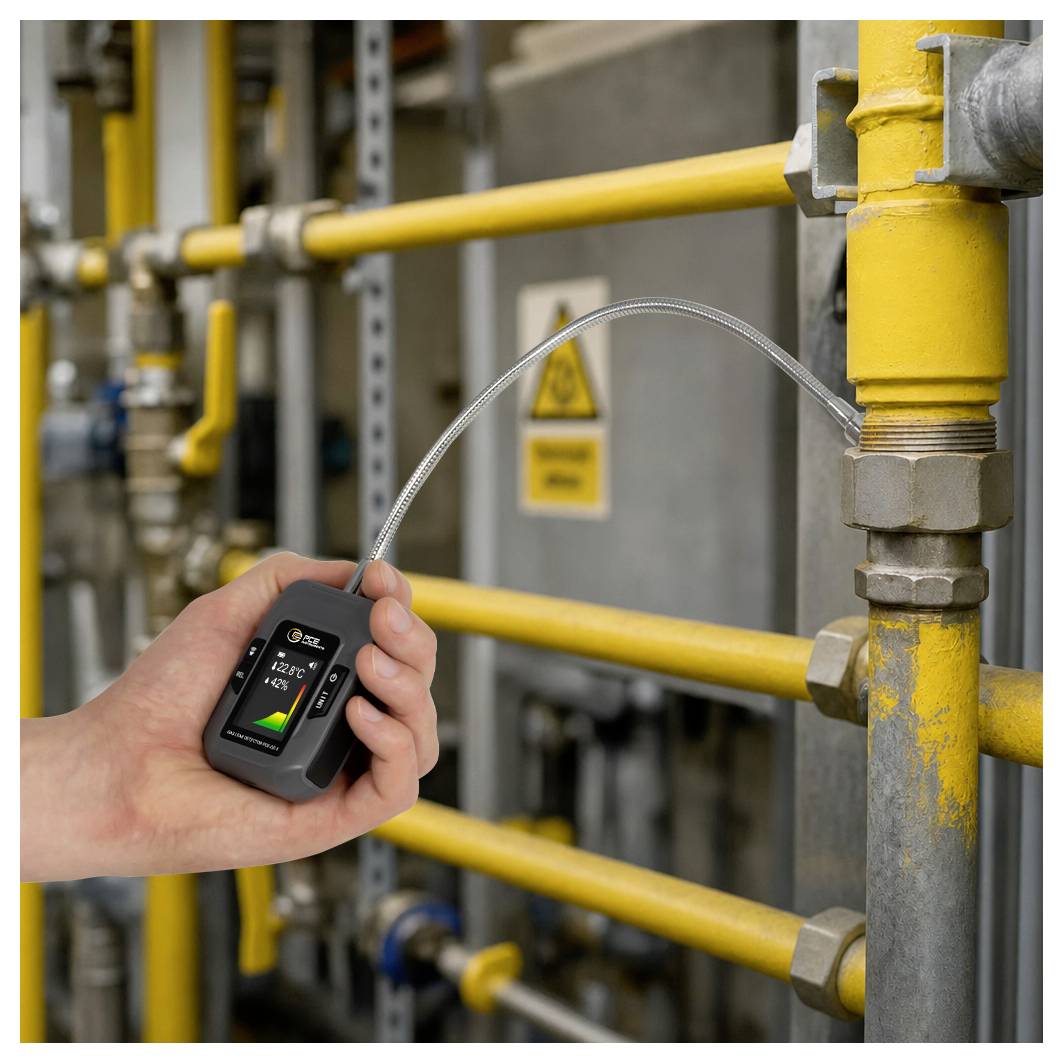

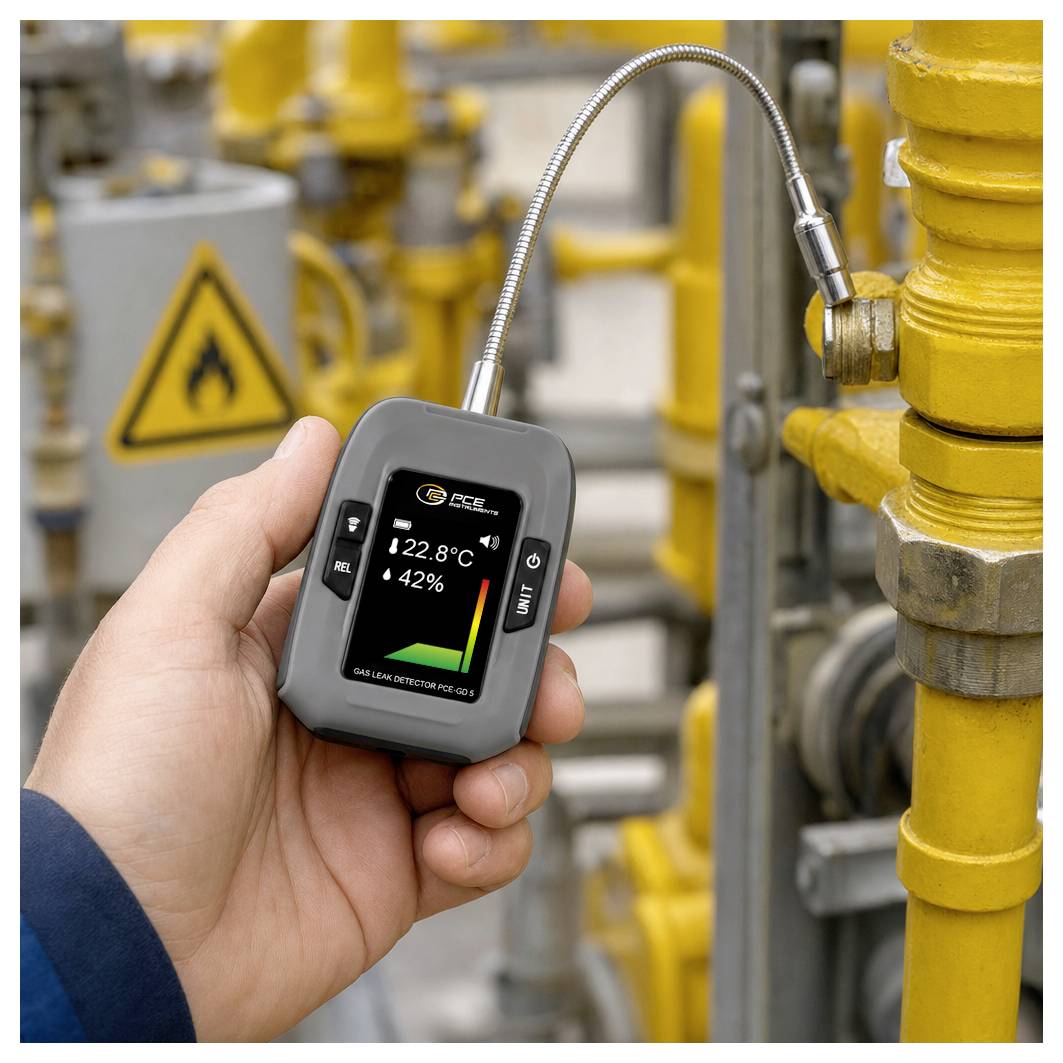

The gas detector is used for the reliable detection of flammable gases and helps in the localization of possible gas leak in different areas. The gas detector is suitable for testing plants, pipelines and installations in which flammable gases like natural gas, liquefied gas (LPG), methane or hydrogen can occur. The flexible probe with a length of approx. 250 mm can also be used to test hard-to-reach areas. The gas detector has an optical and acoustic alarm display, which informs about different warning levels as the gas concentration increases.

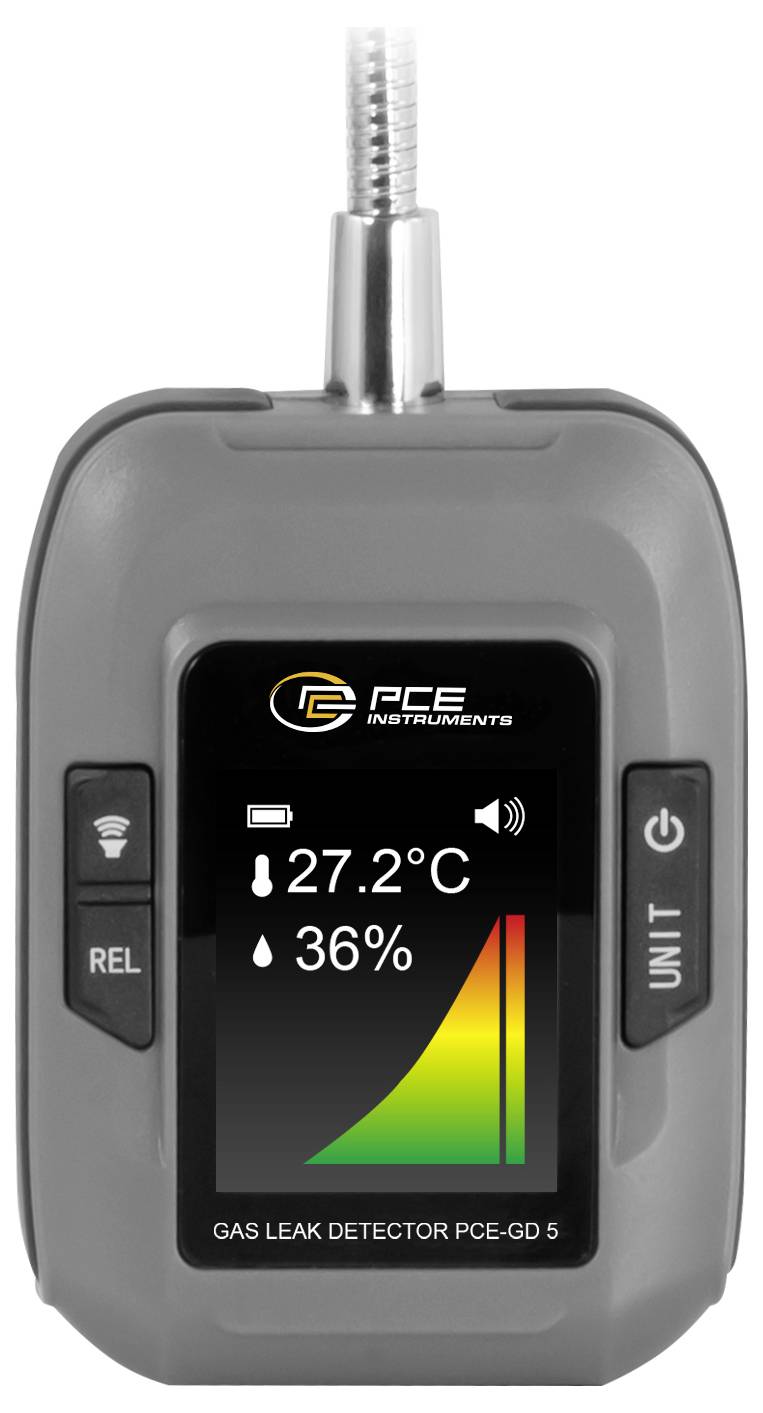

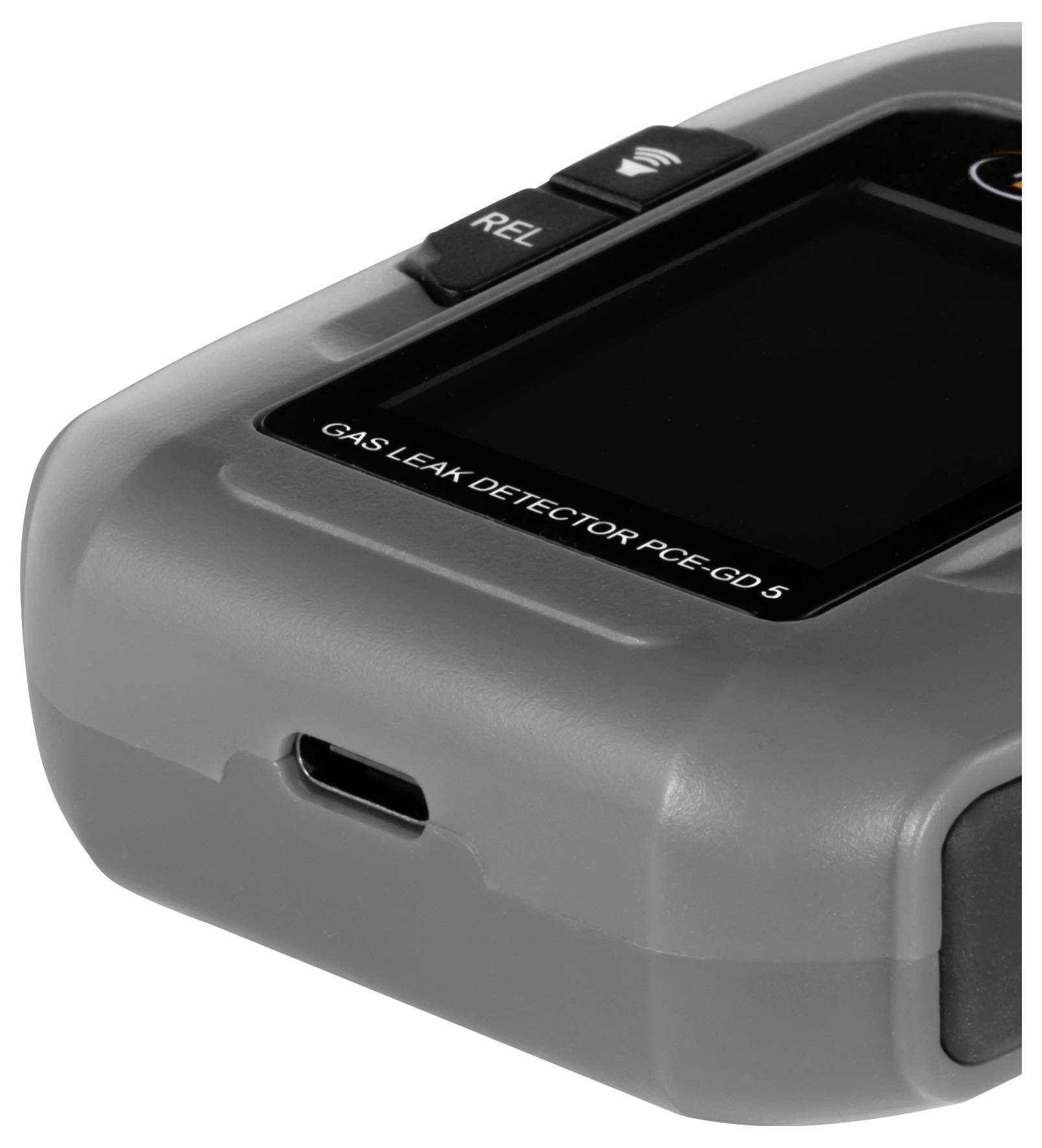

The device has a 1.8 inch color display and also shows the ambient temperature as well as the relative air humidity. It works with a preheating time of approx. 10 seconds as well as a response time of less than 10 seconds. The power is supplied by three AAA batteries. In addition, the gas detector has a USB-C interface which is used to supply power or to connect an external power source. The gas detector can be used for example in the heating and building technology, during maintenance work, in workshops as well as in the testing of gas lines and technical plants. Its compact design and flexible sensor probe make it particularly suitable for quick on-site inspection and leak detection.
This text is machine translated.
The device has a 1.8 inch color display and also shows the ambient temperature as well as the relative air humidity. It works with a preheating time of approx. 10 seconds as well as a response time of less than 10 seconds. The power is supplied by three AAA batteries. In addition, the gas detector has a USB-C interface which is used to supply power or to connect an external power source. The gas detector can be used for example in the heating and building technology, during maintenance work, in workshops as well as in the testing of gas lines and technical plants. Its compact design and flexible sensor probe make it particularly suitable for quick on-site inspection and leak detection.
This text is machine translated.

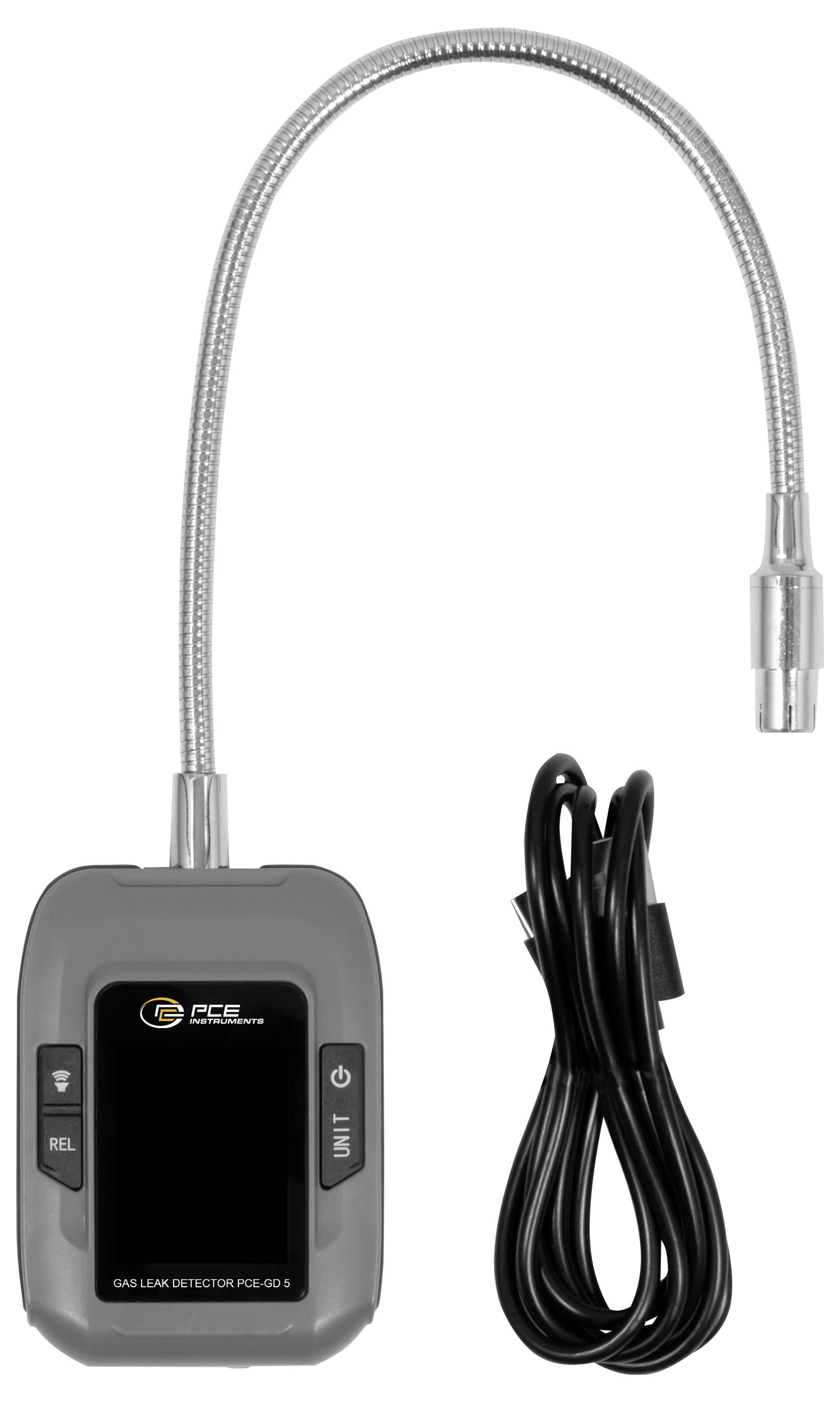

Scope of delivery
- 1 x gas detector PCE-GD 5
- 1x user manual
- 3 x 1.5 V AAA batteries
- 1 x USB-C cable
