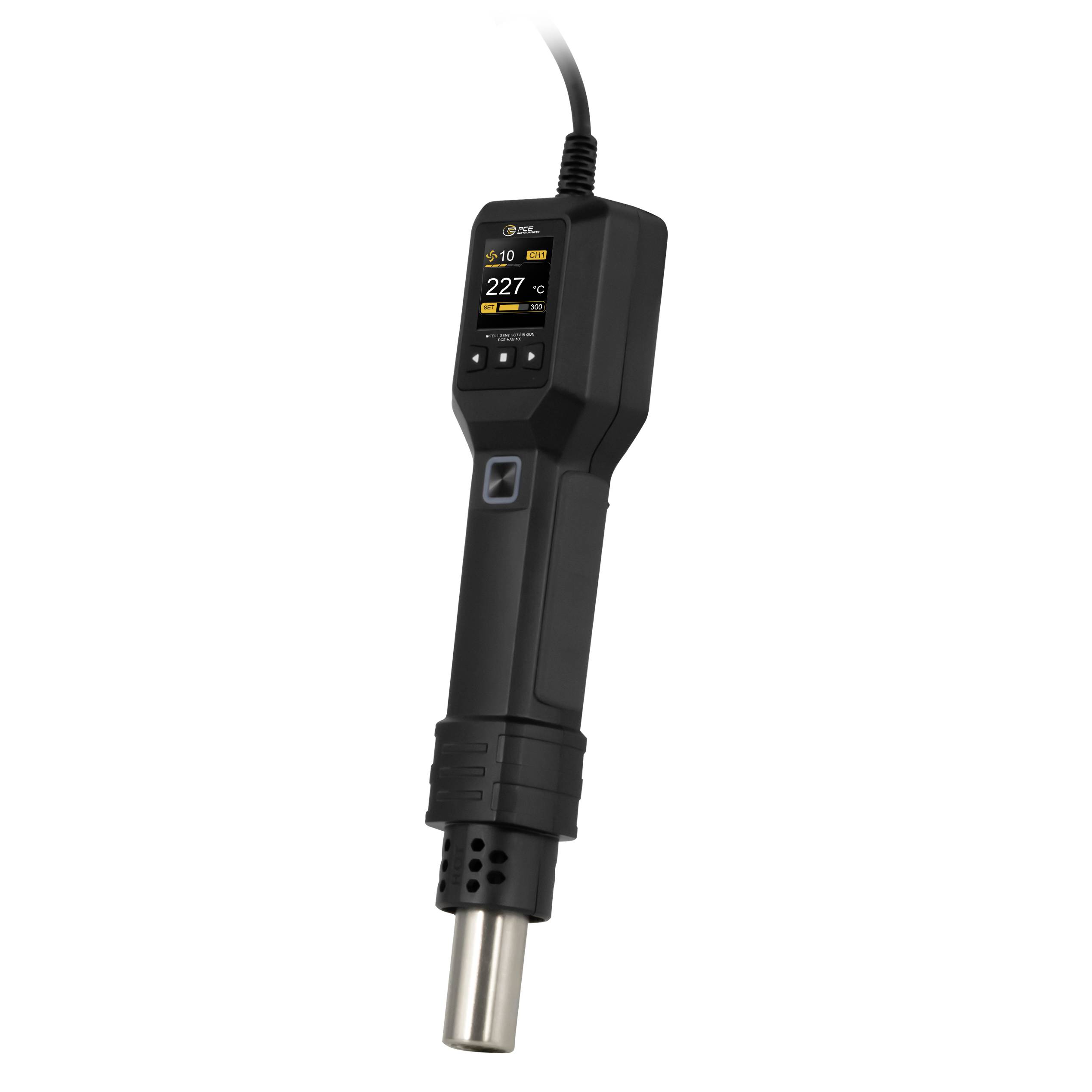

PCE Instruments PCE-HAG 100 Hot air blower 550 W

The hot air gun is an intelligent hot air blower for precise and controlled desoldering work. The hot-air gun can be used to adjust the temperature and air volume as required, so that heat output and airflow can be optimally adapted to the respective application. The brushless fan enables a particularly uniform and gentle regulation of the air speed.

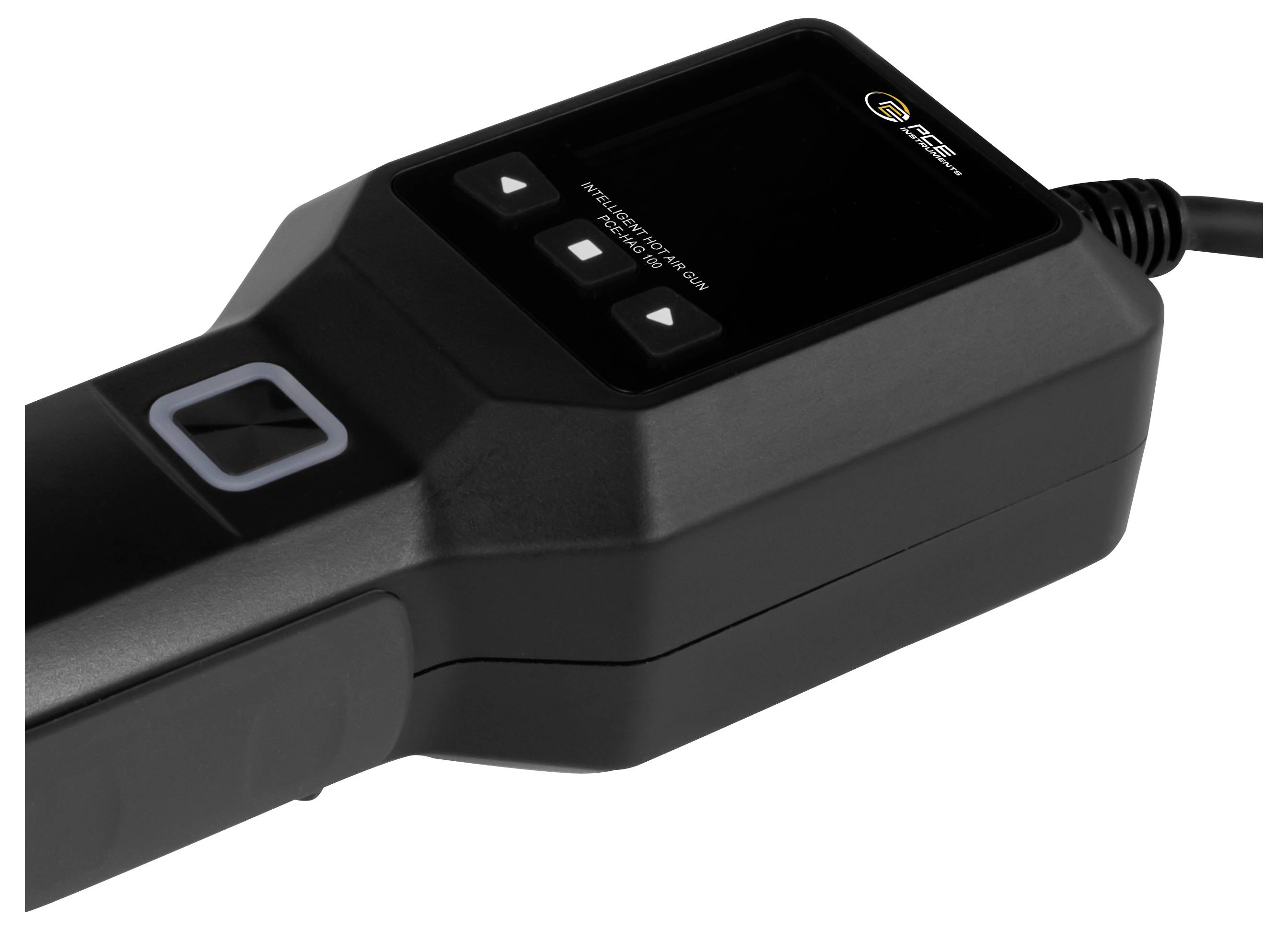

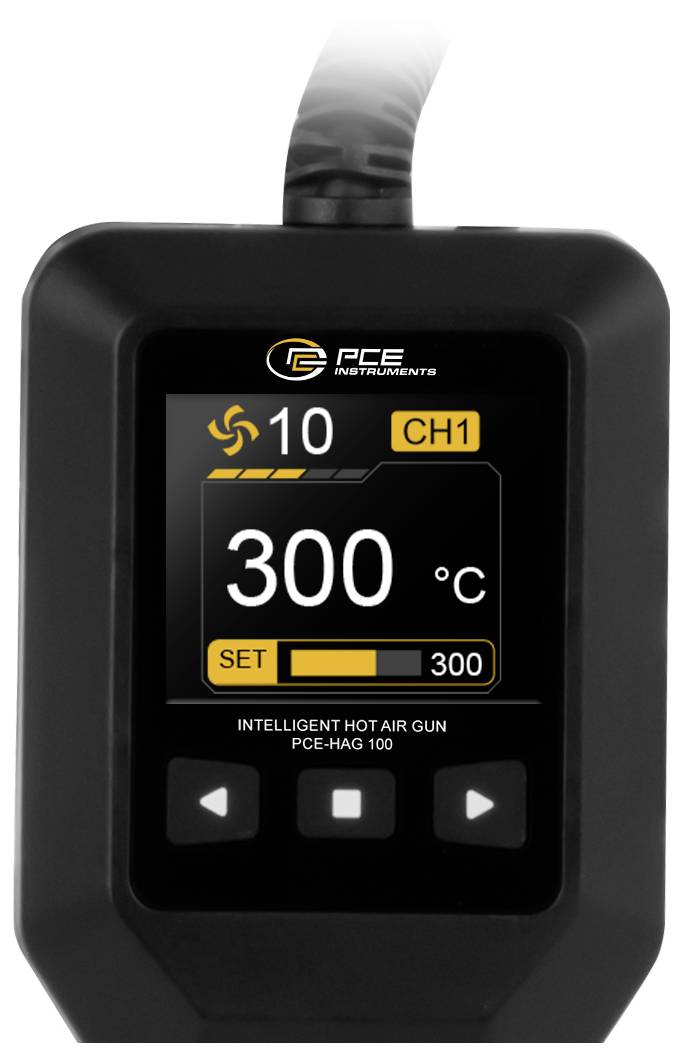

The temperature of the hot air gun can be adjusted flexibly from 100 to 450 °C, while the air volume can be regulated linearly in 20 stages from 1 to 20. Thus, the hot air flow can be precisely adjusted to different components and work steps. The integrated LCD shows the selected settings in a clear way. A color-coded display provides additional real-time information about the current temperature status and simplifies monitoring while working.

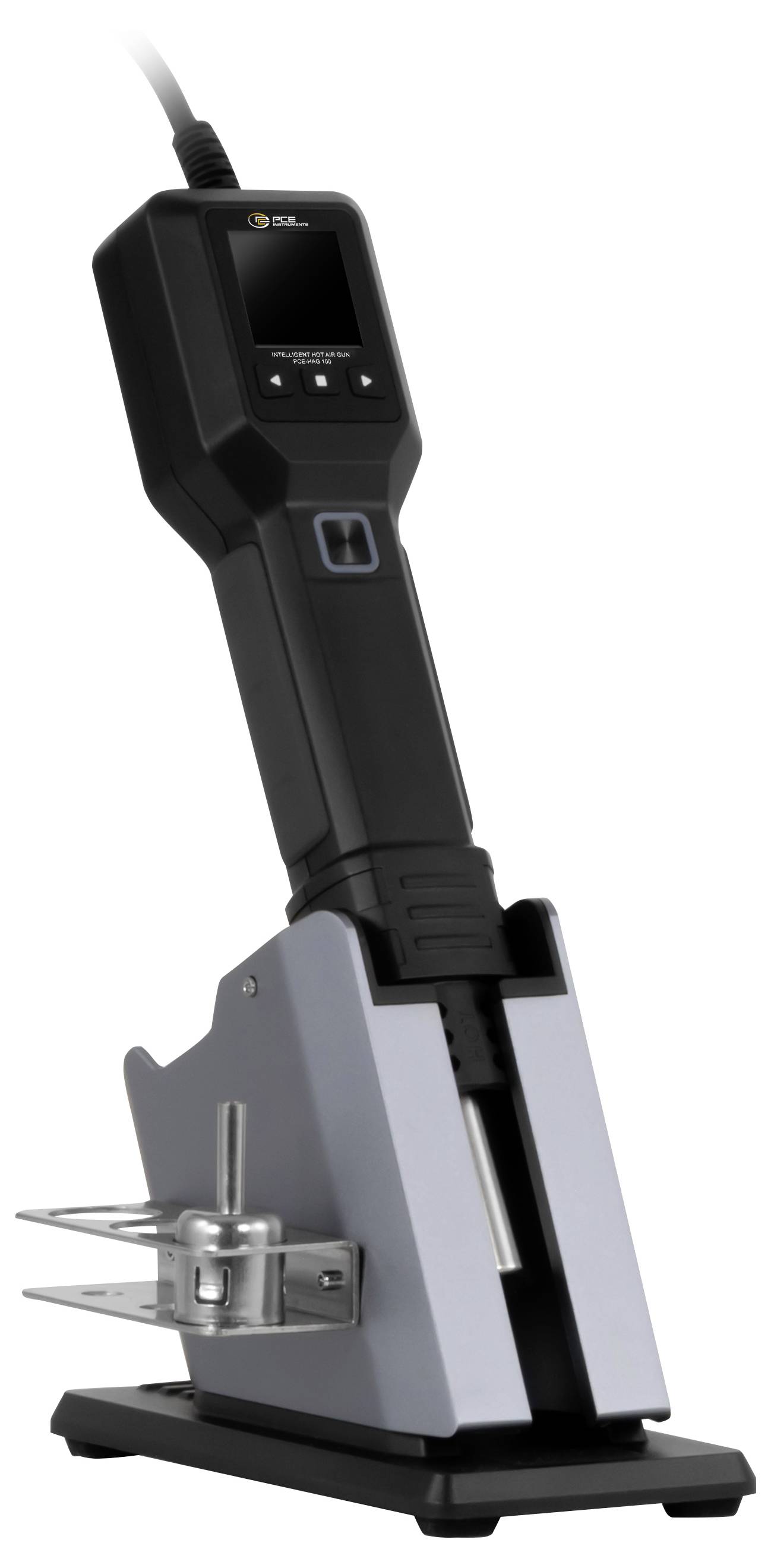

For comfortable and safe handling, the hot air gun has an integrated magnetic sensor to detect the installation angle. Depending on the position, the device automatically activates the sleep mode. In idle state, a reinforced cold-air function is available, with which the hot-air gun and processed components can be cooled down quickly after desoldering. The cold air mode can also be used specifically for cooling during or after work.

The application area of the hot air gun is in particular the precise desoldering and reworking of electronic components on printed circuit boards. It is suitable for removing and replacing SMD components, connectors, ICs and other electronic components, for example. Thanks to the finely graded temperature and air volume control the hot air gun can be used for repair and service work as well as for the professional electronics production, refilling and development.
