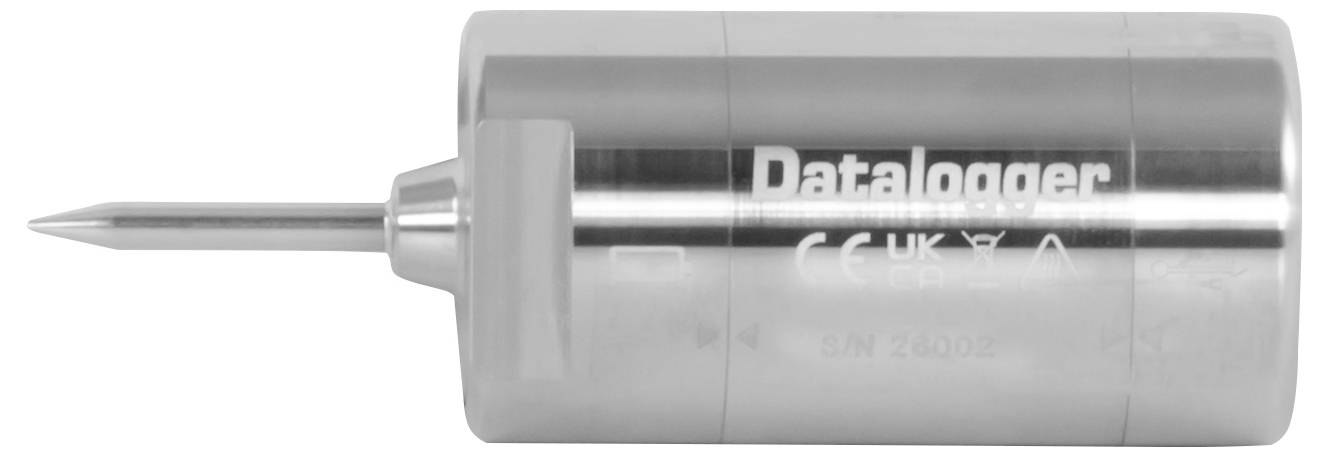

PCE Instruments PCE-HTD 140 PCE-HTD 140 Temperature data logger Unit of measurement Temperature -40 up to 140 °C
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCE Instruments High Temperature Data Logger PCE-HTD 140 |Autoclave Validation |-40 ... +140 °C |Sensor Type PT 1000
- Temperature
- Measurement range -40 - +140 °C
- Resolution 0.1 °C
- Accuracy +/-0.4 °C.
- Temperature
- Measurement range -40 - +284 °F
- Resolution 0.1 °F
- Accuracy +/-0.7 °F
- General Technical Specifications
- Storage medium Internal memory
- Memory capacity: 48000 values
- Memory capacity (additional information) The data are stored in the device and can be read later via USB.
- Interface USB-C
- -sensor Pt1000
- Housing stainless steel
- Measurement interval of 1 s.
- Measurement interval up to 120 min.
- File format PDF, Excel
- Menu language English (US), English (GB), German, French, Italian, Spanish, Portuguese
- Protection class (device) IP68
- Power supply battery
- Battery 1 x 3.6 V 1/2 AA, Lithium
- Capacity: 1000 mAh
- Operating conditions -40 ... 140 °C , 0 ... 80 % r. F.
- Storage conditions -40 ... 85 °C , 0 ... 90 % r.h.
- Dimensions (L x W x H) 90 x 32 x 32 mm.
- Weight 178 g
Technical specifications
- Temperature
- Measurement range -40 - +140 °C
- Resolution 0.1 °C
- Accuracy +/-0.4 °C.
- Temperature
- Measurement range -40 - +284 °F
- Resolution 0.1 °F
- Accuracy +/-0.7 °F
- General Technical Specifications
- Storage medium Internal memory
- Memory capacity: 48000 values
- Memory capacity (additional information) The data are stored in the device and can be read later via USB.
- Interface USB-C
- -sensor Pt1000
- Housing stainless steel
- Measurement interval of 1 s.
- Measurement interval up to 120 min.
- File format PDF, Excel
- Menu language English (US), English (GB), German, French, Italian, Spanish, Portuguese
- Protection class (device) IP68
- Power supply battery
- Battery 1 x 3.6 V 1/2 AA, Lithium
- Capacity: 1000 mAh
- Operating conditions -40 ... 140 °C , 0 ... 80 % r. F.
- Storage conditions -40 ... 85 °C , 0 ... 90 % r.h.
- Dimensions (L x W x H) 90 x 32 x 32 mm.
- Weight 178 g
- Product type
Temperature data logger
- Unit of measurement
Temperature
- Temperature resolution
0,1 °C
- Temperature reading range (min.)
-40 °C
- Temperature reading range (max.)
140 °C
- Sampling interval
1 s
- Memory
Capacity 48000 values
Manufacturer's standards (no certificate)
- Power supply (details)
3.6 V
- Sensor
Pt1000
- Dim
(L x W x H) 90 x 32 x 32 mm
- Weight
178 g
- Resolution
0.1 °C
- Weight, information
approx.
- Temperature reading range
-40 up to 140 °C
- Temperature accuarcy (details)
0.1 %
- Sample rate (max.)
120 min
- Sample rate (min.)
1 s
- Width
32 mm
- Height
32 mm
- Length
90 mm
- Interfaces
USB-C
IP68
- Reading accuracy temperature
0.4 °C
- Type
PCE-HTD 140
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3841697 PCE Instruments PCE-HTD 140 PCE-HTD 140 Temperature data logger Unit of measurement Temperature -40 up to 140 °C
Datasheet 3841697 PCE Instruments PCE-HTD 140 PCE-HTD 140 Temperature data logger Unit of measurement Temperature -40 up to 140 °C
User & Safety Instructions
User & Safety Instructions 3841697 PCE Instruments PCE-HTD 140 PCE-HTD 140 Temperature data logger Unit of measurement Temperature -40 up to 140 °C
Description
The temperature data logger is used for the precise monitoring and documentation of temperature processes in high-temperature processes, especially in autoclave validation and industrial test methods. The temperature data logger is designed for applications where reliable temperature recording is required under high temperatures, pressure conditions and demanding environments.
The temperature data logger has a temperature range of -40 °C to +140 °C with a resolution of 0.1 °C and an accuracy of +/-0.4 °C. The sensor type is a high-quality PT1000-temperature sensor, which enables a stable and precise temperature recording. The robust IP68 stainless steel housing protects the device from dust and permanent immersion and makes it especially suitable for demanding industrial applications.
The temperature data logger offers a storage capacity of up to 48,000 measured values and enables a freely adjustable measuring interval of 1 second ... 120 minutes. In addition, a start delay of 0 ... 24 hours can be programmed, allowing measurements to be flexibly adapted to different process sequences. The recorded measurement data is read out via the USB interface and can be documented automatically as a PDF or Excel report in 6 languages
Through the Plug-&-Play function no additional software installation or drivers is needed. Other features include the choice of temperature units °C and °F, configurable alarm limits, a replaceable lithium battery as well as a multilingual reporting function. The stainless steel housing with the supplied replacement O-rings provides reliable sealing and supports safe use under extreme conditions.
The temperature data logger is particularly suitable for users from the pharmaceutical industry, Medical technology, food technology, research and quality assurance, which must validate, monitor and document temperature processes in a comprehensible way.
This text is machine translated.
The temperature data logger has a temperature range of -40 °C to +140 °C with a resolution of 0.1 °C and an accuracy of +/-0.4 °C. The sensor type is a high-quality PT1000-temperature sensor, which enables a stable and precise temperature recording. The robust IP68 stainless steel housing protects the device from dust and permanent immersion and makes it especially suitable for demanding industrial applications.
The temperature data logger offers a storage capacity of up to 48,000 measured values and enables a freely adjustable measuring interval of 1 second ... 120 minutes. In addition, a start delay of 0 ... 24 hours can be programmed, allowing measurements to be flexibly adapted to different process sequences. The recorded measurement data is read out via the USB interface and can be documented automatically as a PDF or Excel report in 6 languages
Through the Plug-&-Play function no additional software installation or drivers is needed. Other features include the choice of temperature units °C and °F, configurable alarm limits, a replaceable lithium battery as well as a multilingual reporting function. The stainless steel housing with the supplied replacement O-rings provides reliable sealing and supports safe use under extreme conditions.
The temperature data logger is particularly suitable for users from the pharmaceutical industry, Medical technology, food technology, research and quality assurance, which must validate, monitor and document temperature processes in a comprehensible way.
This text is machine translated.
Scope of delivery
- 1 x temperature data logger PCE-HTD 140
- 1 x USB-C cable
- 1 x Cleaning cloth
- 12 x sealing O-rings
- 1x user manual
- 1 x PC software (on the device)
