PCE Instruments PCE-IT100-ICA Insulation tester Calibrated to (ISO standards) 1000 V 400 Ω
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

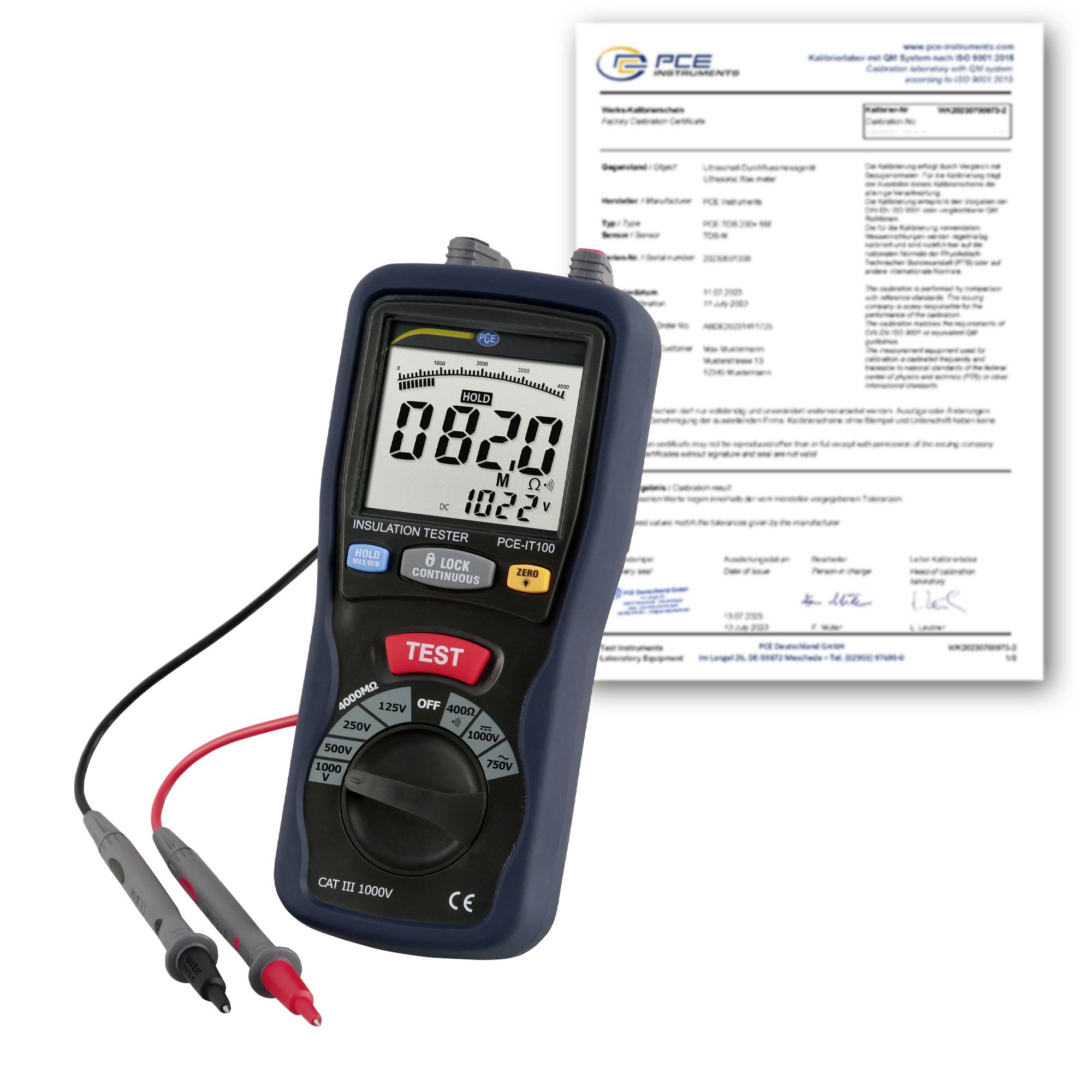

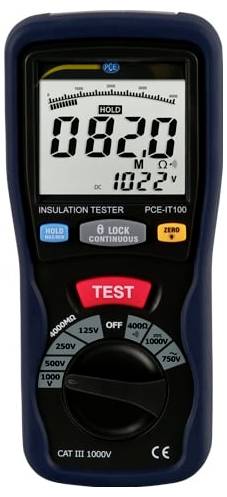

PCE instruments insulation tester PCE-IT100-ICA
- Large measurement range
- 4 different test voltages up to 1 kV
- Auto Power Off function
- EN 61010-1, CAT III 1000 V
- Dual display with backlight.
- Individual measurement and continuous measurement
- An ISO calibration certificate is optionally available
- Incl. ISO calibration certificate
Technical specifications
- DC voltage
- Measuring range 0 ... 1000 V
- Resolution 1 V
- Accuracy ±(0.8% 3 digits)
- Overload 1000 V RMS
- Alternating voltage AC
- Measuring range 0 ... 750 V
- Resolution 1 V
- Accuracy ±1.2% ±10 digits
- Overload 750 V RMS
- Frequency range 40 ... 400 Hz
- Insulating resistance
- Test voltage 125 V DC
- Measuring range 0.125 ... 4000MΩ
- Resolution 0.001 MΩ
- Accuracy ±(2% +10 digits),
- Insulating resistance
- Test voltage 250 V DC
- Measuring range 0.25 ... 4000MΩ
- Resolution 0.001 MΩ
- Accuracy ±(2% +10 digits) MΩ
- Insulating resistance
- Test voltage 500 V DC
- Measuring range 0.5 ... 4000MΩ
- Resolution 0.001 MΩ
- Accuracy ±(2% +10 digits)
- Insulating resistance
- Test voltage 1000 V DC
- Measuring range 1 ... 4000MΩ
- Resolution 0.01 MΩ
- Accuracy ±(3% +10 digits),
- Resistor
- Measuring range 0 ... 40 Ω
- Resolution 0.01 Ω
- Accuracy ±1.2% ±3 digits
- Resistor
- Measuring range 0 ... 400 Ω
- Resolution 0.1 Ω
- Accuracy ±1.2% ±3 digits
- General Technical Data
- MEASUREMENT FUNCTIONS MIN, MAX, HOLD
- Measurement rate 0.4 Hz
- Automatically switches off approx. 10 min.
- Operating height 2000 m max. above sea level
- Test current ≤ 200 mA
- Fuse(s) 10 A / 600 V (5 x 20 mm)
- Menu language English (US), English (GB)
- Protection class (device) IP20
- Battery 6 x 1.5 V AA battery , alkaline-manganese
- Capacity: 3000 mAh
- Operating conditions 0 ... 40 °C , 0 ... 80 % r.F.
- Storage conditions -10 ... 60 °C , 0 ... 70 % r.F.
- Dimensions ( L x W x H ) 200 x 92 x 50 mm
- Weight 700 g
- Product type
Insulation tester
- Test voltage
1000 V
- Reading type
Insulation resistance
AC current
DC voltage
ISO standards
- Reading range - resistance
0 Ω
IP20
- Power supply (details)
1.5 V
- Dim
(L x W x H) 200 x 92 x 50 mm
- Weight
700 g
- Display type
Digital (LCD)
- Max. frequency
400 Hz
- Min. frequency
40 Hz
- Frequency range
40 Hz - 400 Hz
- Insulation resistance (max.)
400 Ω
- Calibration service
Incl. ISO calibration certificate
- Voltage reading range (max.)
1000 V DC
- Voltage reading range (min.)
0 V AC
0 V DC
- Width
92 mm
- Height
50 mm
- Length
200 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812596 PCE Instruments PCE-IT100-ICA Insulation tester Calibrated to (ISO standards) 1000 V 400 Ω
User & Safety Instructions
User & Safety Instructions 3812596 PCE Instruments PCE-IT100-ICA Insulation tester Calibrated to (ISO standards) 1000 V 400 Ω
Description
DC voltage
Measuring range 0 ... 1000 V
Resolution 1 V
Accuracy ±(0.8% +3 digits)
Overload 1000 V RMS
Alternating voltage AC
Measuring range 0 ... 750 V
Resolution 1 V
Accuracy ±(1.2% +10 digits)
Overload 750 V RMS
Frequency range 40 ... 400 Hz
Insulating resistance
Test voltage 125 V DC
Measuring range 0.125 ... 4000MΩ
Resolution 0.001 MΩ
Accuracy ±(2% +10 digits)
Insulating resistance
Test voltage 250 V DC
Measuring range 0.25 ... 4000MΩ
Resolution 0.001 MΩ
Accuracy ±(2% +10 digits)
Insulating resistance
Test voltage 500 V DC
Measuring range 0.5 ... 4000MΩ
Resolution 0.001 MΩ
Accuracy ±(2% +10 digits)
Insulating resistance
Test voltage 1000 V DC
Measuring range 1 ... 4000MΩ
Resolution 0.01 MΩ
Accuracy ±(3% +10 digits)
Resistor
Measuring range 0 ... 40 Ω
Resolution 0.01 Ω
Accuracy ±(1.2% +3 digits)
Resistor
Measuring range 0 ... 400 Ω
Resolution 0.1 Ω
Accuracy ±(1.2% +3 digits)
General Technical Data
MEASUREMENT FUNCTIONS MIN, MAX, HOLD
Measurement rate 0.4 Hz
Automatically switches off approx. 10 min.
Operating altitude max. 2000 m above sea level
Test current max. 200 mA
Fuse(s) 10 A / 600 V (5 x 20 mm)
Menu language English (US), English (GB)
Protection class (device) IP20
Battery/battery 6 x 1.5 V AA battery, alkaline-manganese
Capacity: 3000 mAh
Operating conditions 0 ... 40 °C, 0 ... 80 % r.F.
Storage conditions -10 ... 60 °C, 0 ... 70 % r.F.
Dimensions (L x W x H) 200 x 92 x 50 mm
Weight 700 g
This text is machine translated.
Measuring range 0 ... 1000 V
Resolution 1 V
Accuracy ±(0.8% +3 digits)
Overload 1000 V RMS
Alternating voltage AC
Measuring range 0 ... 750 V
Resolution 1 V
Accuracy ±(1.2% +10 digits)
Overload 750 V RMS
Frequency range 40 ... 400 Hz
Insulating resistance
Test voltage 125 V DC
Measuring range 0.125 ... 4000MΩ
Resolution 0.001 MΩ
Accuracy ±(2% +10 digits)
Insulating resistance
Test voltage 250 V DC
Measuring range 0.25 ... 4000MΩ
Resolution 0.001 MΩ
Accuracy ±(2% +10 digits)
Insulating resistance
Test voltage 500 V DC
Measuring range 0.5 ... 4000MΩ
Resolution 0.001 MΩ
Accuracy ±(2% +10 digits)
Insulating resistance
Test voltage 1000 V DC
Measuring range 1 ... 4000MΩ
Resolution 0.01 MΩ
Accuracy ±(3% +10 digits)
Resistor
Measuring range 0 ... 40 Ω
Resolution 0.01 Ω
Accuracy ±(1.2% +3 digits)
Resistor
Measuring range 0 ... 400 Ω
Resolution 0.1 Ω
Accuracy ±(1.2% +3 digits)
General Technical Data
MEASUREMENT FUNCTIONS MIN, MAX, HOLD
Measurement rate 0.4 Hz
Automatically switches off approx. 10 min.
Operating altitude max. 2000 m above sea level
Test current max. 200 mA
Fuse(s) 10 A / 600 V (5 x 20 mm)
Menu language English (US), English (GB)
Protection class (device) IP20
Battery/battery 6 x 1.5 V AA battery, alkaline-manganese
Capacity: 3000 mAh
Operating conditions 0 ... 40 °C, 0 ... 80 % r.F.
Storage conditions -10 ... 60 °C, 0 ... 70 % r.F.
Dimensions (L x W x H) 200 x 92 x 50 mm
Weight 700 g
This text is machine translated.
Scope of delivery
- 1 x insulation tester PCE-IT100-ICA

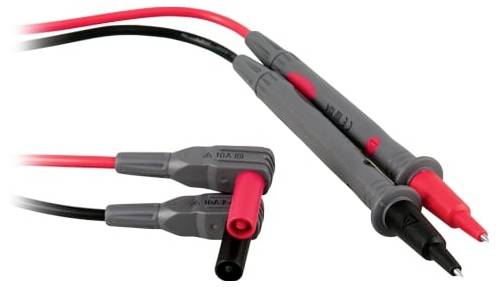

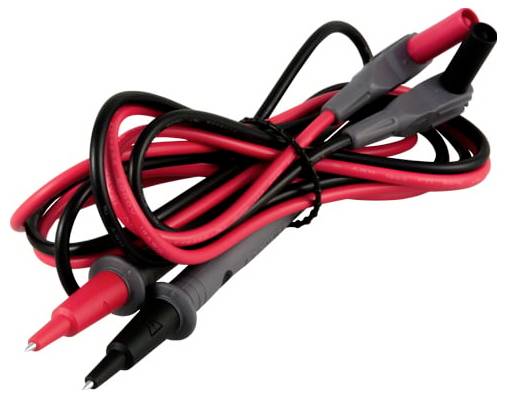

- 1 x set of test leads
- 1 x alligator clip at 1 m cable
- 6 x 1.5 V AA battery
- 1 x Carrying straps
- 1x user manual
- 1 x carry case
- 1 x ISO calibration certificate
