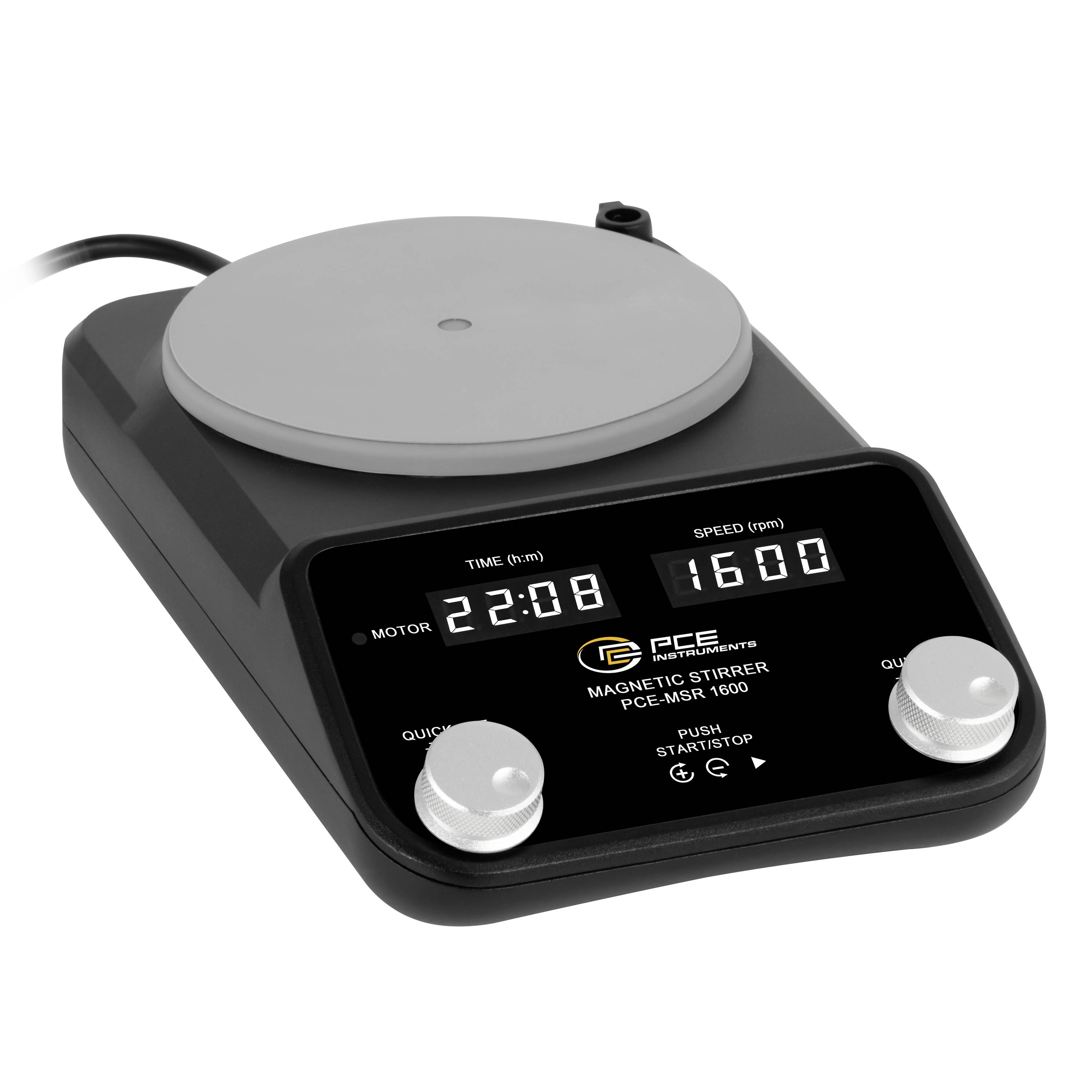

PCE Instruments PCE-MSR 1600 Strirrer 20 W 20 kg

1/5
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable

Sales and shipping:
Conrad ElectronicTerms & Conditions

Highlights & Details

PROFESSIONAL CALIBRATED TO EQUIPMENT. PCE-MSR 1600

  • Stirring speed of 200 ... 1,600 rpm can be set
  • Digital display for time and speed
  • Timer: 1 s ... 99h 59 min
  • Mode: Timer and continuous operation
  • Silicone stirrer plate
  • For a maximum of 20 L of liquid
  • Power supply 220 V AC | 50/60 Hz, 1 A.

Technical specifications

  • Speed
  • Measuring range 200 ... 1600 R/min
  • Resolution 1 Rev/min.
  • Accuracy: 10 rpm
  • General Technical Data
  • Display type LCD
  • Display size 1.8 inches
  • Dimensions of agitator plate: Ø 134 mm,stirring bar: Ø 8 x 45 mm
  • Fuse(s) 250 V, 1 A, Ø 5 x 20
  • Output 20 W
  • Number of stirring points 1
  • Drive the agitators of brushless motor
  • Max. Stirring capacity 20 l
  • Material stirrer plate silicone
  • Timer of 1 seconds
  • Timer range up to 100 h.
  • Menu language English (US), English (GB)
  • Protection class (device) IP20
  • Power supply 220 V AC | 50/60 Hz, 1 A

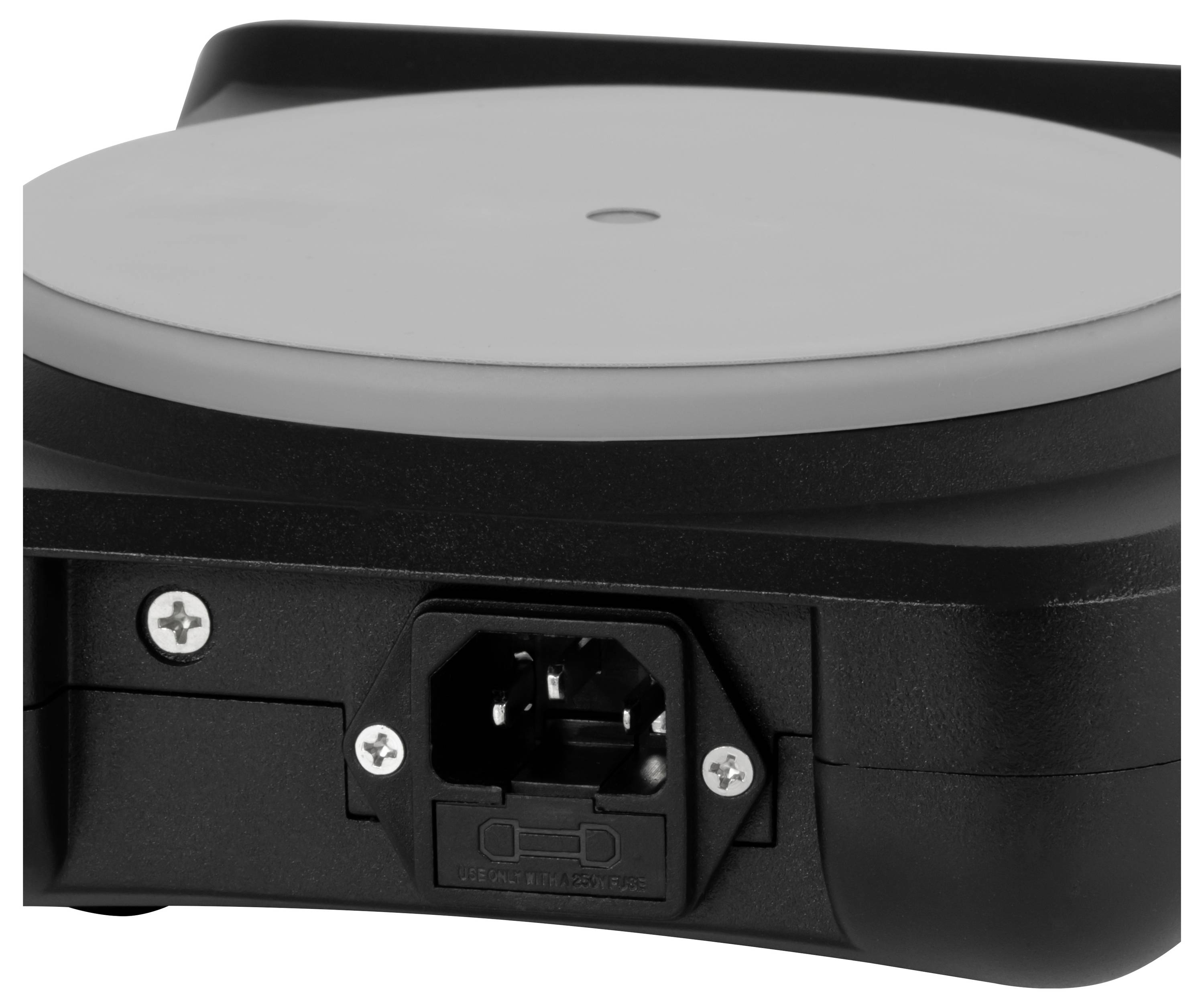

  • Connector type cold-device plug
  • Operating conditions 4 ... 45 °C , 0 ... 70 % r.F.
  • Storage conditions 0 ... 50 °C , 0 ... 80 % r.F.
  • Dimensions ( L x W x H ) 270 x 160 x 70 mm
  • Weighs 2046 g.
Product type

Strirrer

20 W

Stirring capacity (max.)

20 kg

Rotational speed (min.)

200 U/min

Rotational speed (max.)

1600 U/min

Width

160 mm

Height

70 mm

Length

270 mm

Dim

(L x W x H) 270 x 160 x 70 mm

Documents & Downloads

Datasheet

Datasheet 3812957 PCE Instruments PCE-MSR 1600 Strirrer 20 W 20 kg

User & Safety Instructions

User & Safety Instructions 3812957 PCE Instruments PCE-MSR 1600 Strirrer 20 W 20 kg

Description

The magnetic stirrer is aimed at professional users in laboratories in chemistry, biotechnology, medicine, food industry as well as in research and development, who want to stir and mix fluids reliably. The magnetic stirrer has a continuously adjustable stirring speed of 200 … 1,600 rpm and a volume range of up to 20 liters (H3S O).

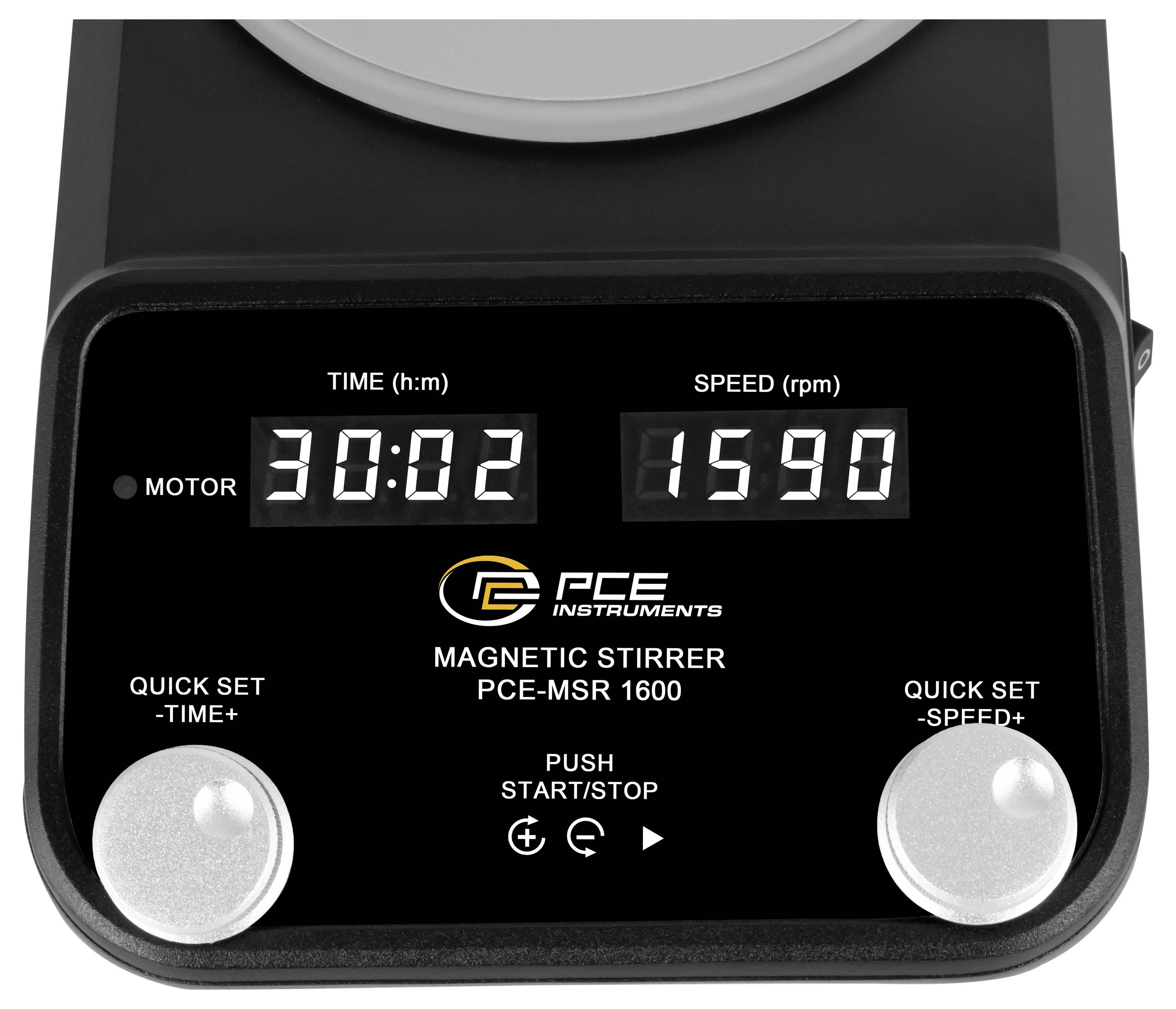

Speed and time can be precisely adjusted via two rotary knobs and are shown on the digital display, WAS ensures reproducible results. Time setting is flexible from 1 second to 99 hours and 59 minutes; at 00:00 the magnetic stirrer runs continuously and stops automatically with an acoustic signal after the time has elapsed.

Technically, the magnetic stirrer is driven by a brushless DC-motor, which works quietly, with low vibration and maintenance-free. The working area consists of a silicone pad with a diameter of 134 mm, and the robust housing provides for a safe stand and lasting laboratory use. The compact design with slanted control panel (approx. 30°) allows you to read comfortably while sitting or standing. The magnetic stirrer is operated with a power supply of 220 V AC | 50/60 Hz, has a power consumption of 20 W and is equipped with a fuse for protection of the device.

Thanks to its strong magnetic force and precise control system, this magnetic stirrer Ideal is used for mixing reagents, solutions and chemical substances in laboratories, in quality control, research and development as well as in the production of food and medical preparations.

This text is machine translated.

Scope of delivery

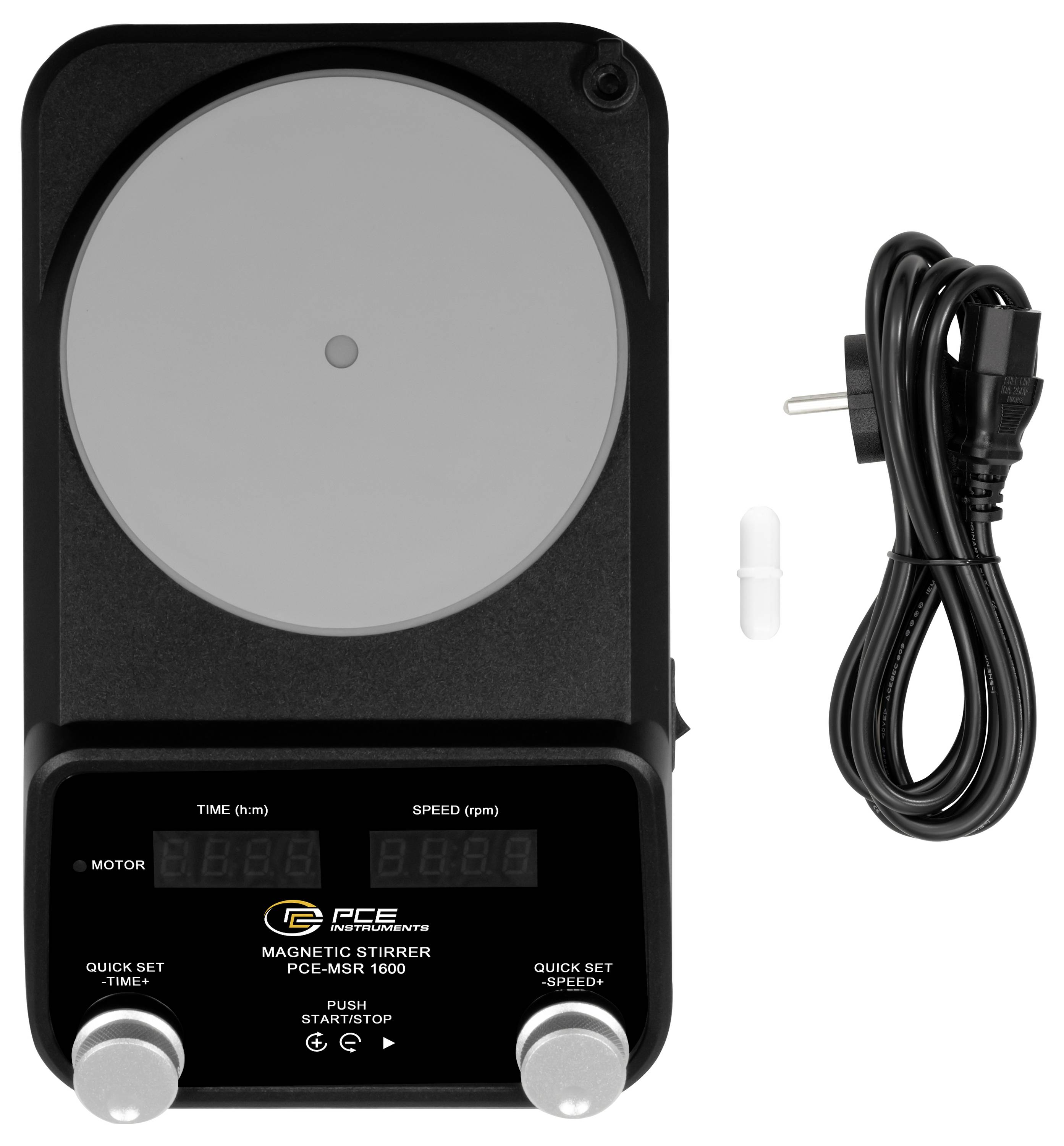

  • 1 x PCE-MSR 1600 magnetic stirrer
  • 1 x Appliance cables
  • 1 x Stirring staff: Ø 8 x 45 mm
  • 1x user manual
