PCE Instruments PCE-N27D Digital display Calibrated to (ISO standards)

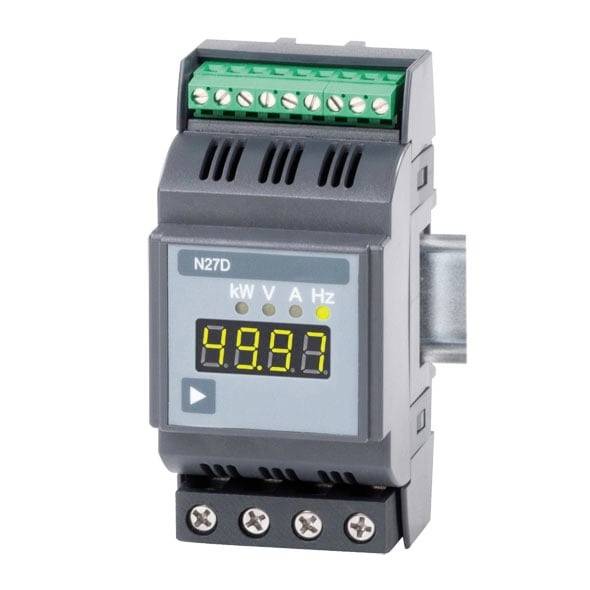

Digital panel meter showing 49.97, labeled kW, V, A, Hz, with screw terminals on top and bottom.

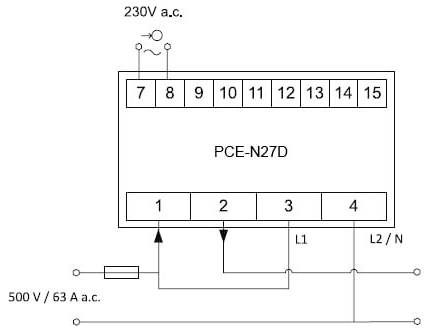

Wiring diagram for PCE-N27D relay, showing 230V AC supply, terminal numbers 1–15, and L1/L2-N connections with a 500V/63A AC line.

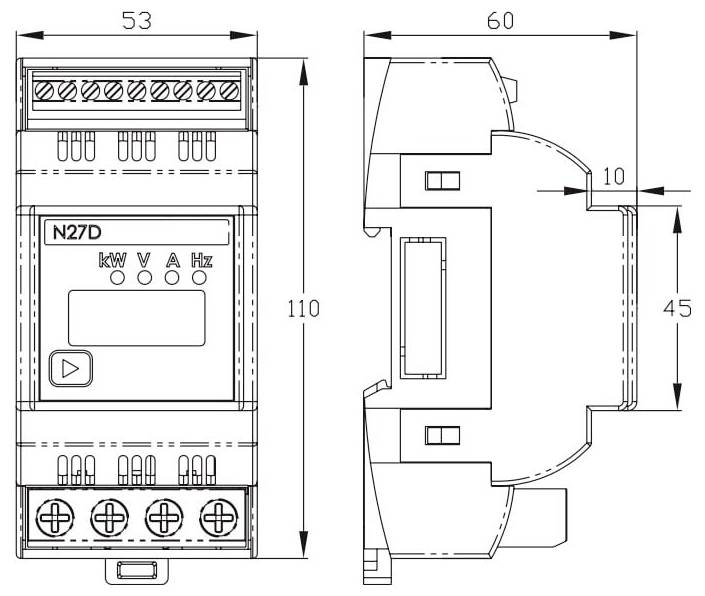

Technical drawing of a DIN-rail electrical module labeled 'N27D', showing front and side views with dimensions 53, 60, 110, 10, and 45 mm.
Technical drawing of an electronic device with front and side view. Dimensions: Height 110 mm, Width 53 mm, Depth 60 mm.

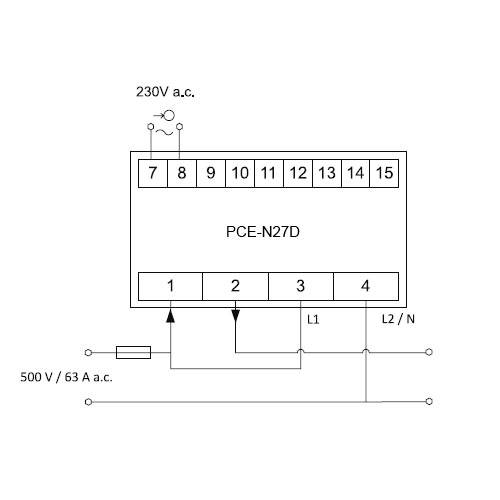

'Wiring diagram of an electrical meter PCE-N27D with connections L1, L2/N, 230V a.c., 500V/63A a.c.'
1/5
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Load display

  • Measures up to 63 A directly
  • Measurement of U, I, f, P
  • Top hat DIN rail mounting
  • For compliance with ISO 50001
  • Selectable measuring variable
  • simple operation
  • LED display
  • Easy to install

Technical specifications

  • Input display Measurement range UN 500 V AC Accuracy 0.01 ... 1.2 x UN ± 0.5 % of reading Input display Measurement range in 63 A AC Accuracy 0.01 ... 1.2 x in ± 0.5% of reading Voltage frequency Measuring range 2 ... 500 Hz Accuracy ± 0.02 % of reading Current frequency Measuring range 45 ... 500 Hz Accuracy ± 0.02 % of reading (Active power: Measurement range -31.5 ... 31.5 kW Accuracy ± 1 % of reading Display 4-digit LED Display digit height 8.5 mm digit color yellow Display range -1999 ... 9999 Dimensions 53 x 110 x 60 Display frame 45 x 53 mm Weight approx. 250 g Mounting on 35 mm DIN rail Environmental conditions -10 ... 55 °C /< 95 % r.h. CAT III 300 V / CAT II 600 V PROTECTION
Product type

Digital display

Reading type

Amperage

Type

PCE-N27D

Reading range (max.)

63 A

Display technology

LED

Dim

(L x W x H) 53 x 110 x 60 mm

Width

110 mm

Height

60 mm

Length

53 mm

ISO standards

Packaging type

Carton

Documents & Downloads

Datasheet

Datasheet 2452536 PCE Instruments PCE-N27D Digital display Calibrated to (ISO standards)

User & Safety Instructions

User & Safety Instructions 2452536 PCE Instruments PCE-N27D Digital display Calibrated to (ISO standards)

Description

Power display / power display for compliance with ISO 50001 / measures up to 63 A directly / measurement and display of current, voltage, power and frequency The power display unit measures current up to 63 A directly. This makes it possible to connect the power display directly to the main distribution board. The power display unit measures all relevant network parameters such as current, voltage, power and frequency. The power display is ideal for measuring purposes in order to comply with the ISO 50001 energy management standard.

This text is machine translated.

Scope of delivery

  • 1 x power display/power display unit PCE-N27D
  • 1x user manual
