PCE Instruments PCE-N50F Force gauge Manufacturer's standards (no certificate)

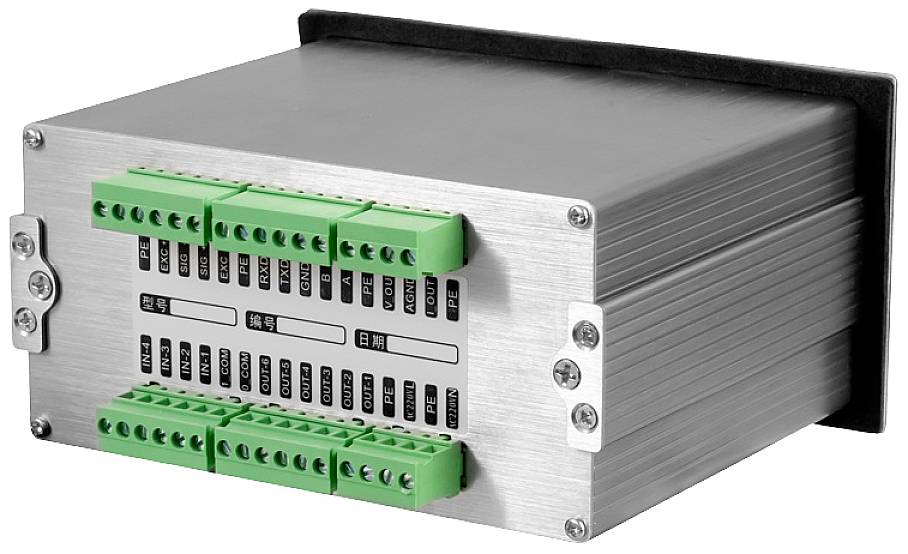

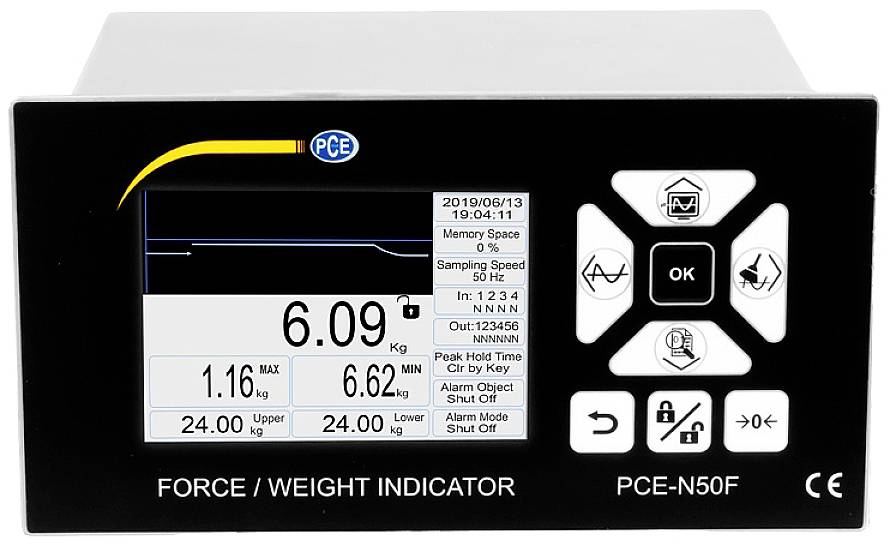

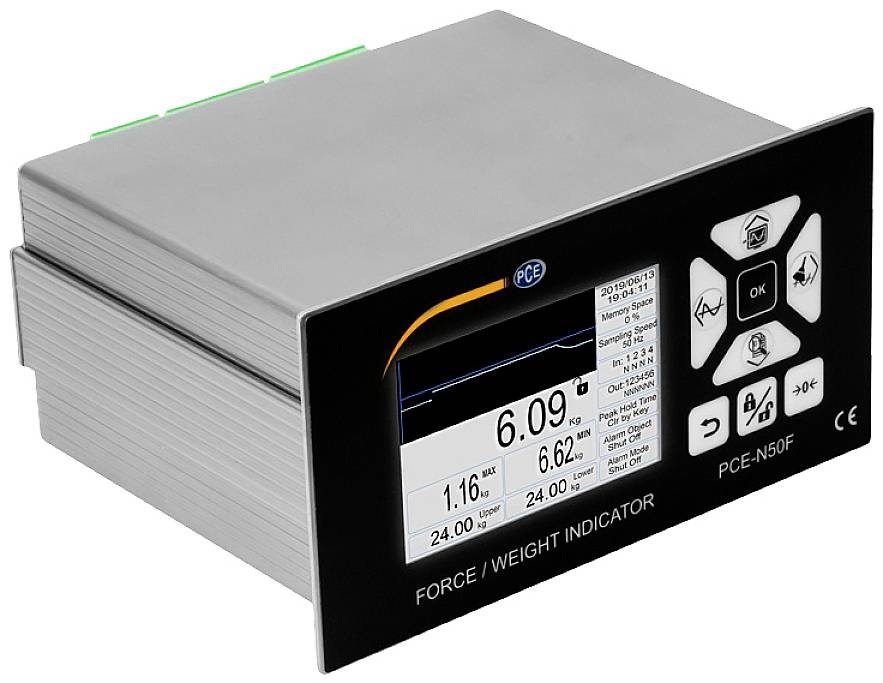

Display device PCE-N50F weighing terminal for load cells, force sensors, etc. / LCD display / max. 1600 Hz sampling rate / serial Modbus interface / digital inputs and outputs / different units The PCE-N50F weighing terminal is suitable for installation in control panels. This weighing terminal can be used to indicate the weight, force or torque. The decisive factor for this is the type of sensor that is connected to the weighing terminal. Calibration from the weighing terminal to the respective measuring cell is carried out via the menu using exact calibration weights. The weighing terminal is used for stationary and individual weighing solutions. The weighing terminal is often used where the weight must be determined continuously. The display of the weighing terminal is a graphic display, which shows not only the numerical measured value but also the progress of the weighing process. The weighing terminal also shows the minimum and maximum weighing value. The weighing terminal can be tared or set to zero using the buttons. In addition to operation via the buttons, the weighing terminal can be operated via the digital inputs on the rear. This allows external buttons to be connected that target the weighing terminal, etc.

This text is machine translated.
