PCE Instruments PCE-PA 7200-ICA Network diagnostics Calibrated to (ISO standards) 1-phase, 3-phase Data logger, Clamp me
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

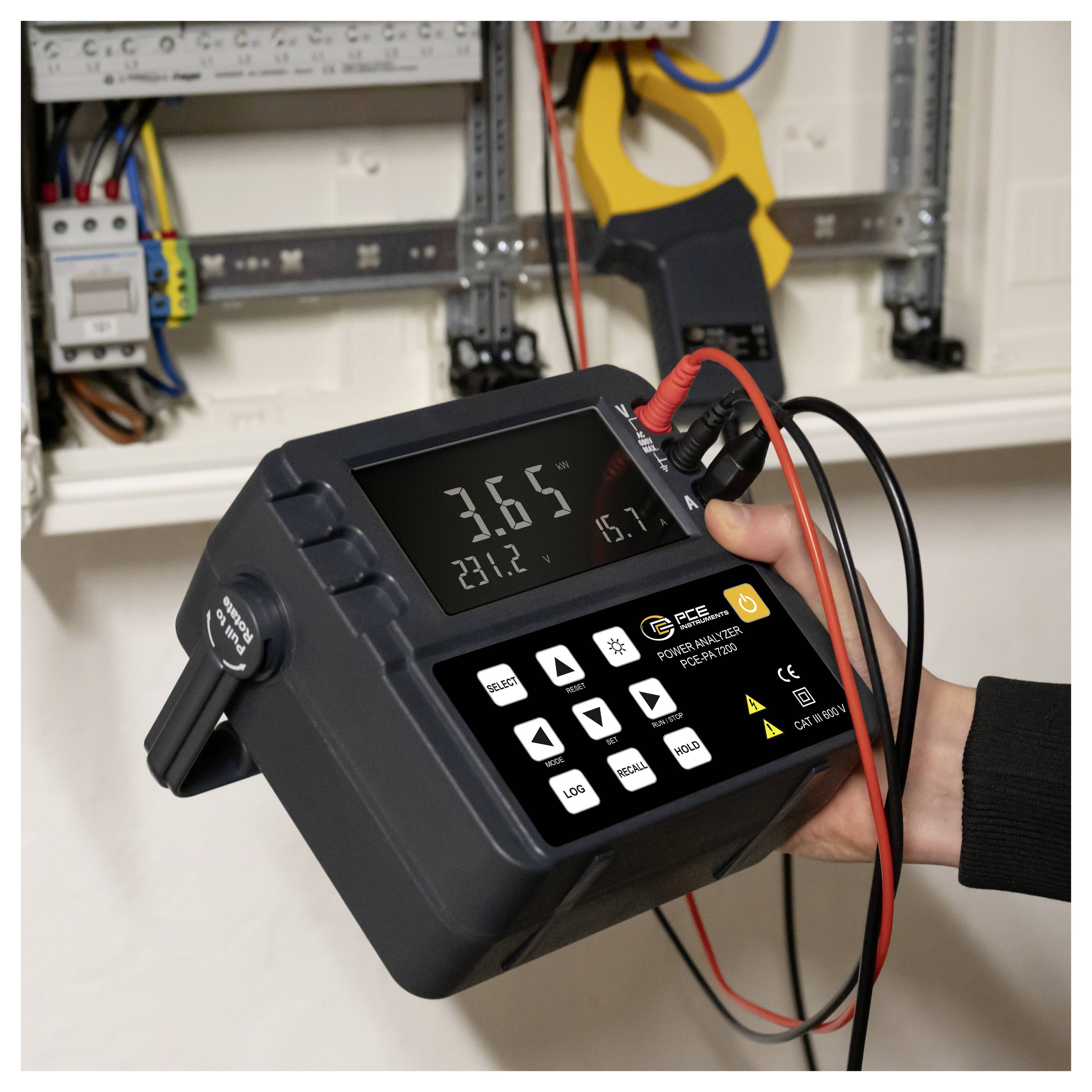

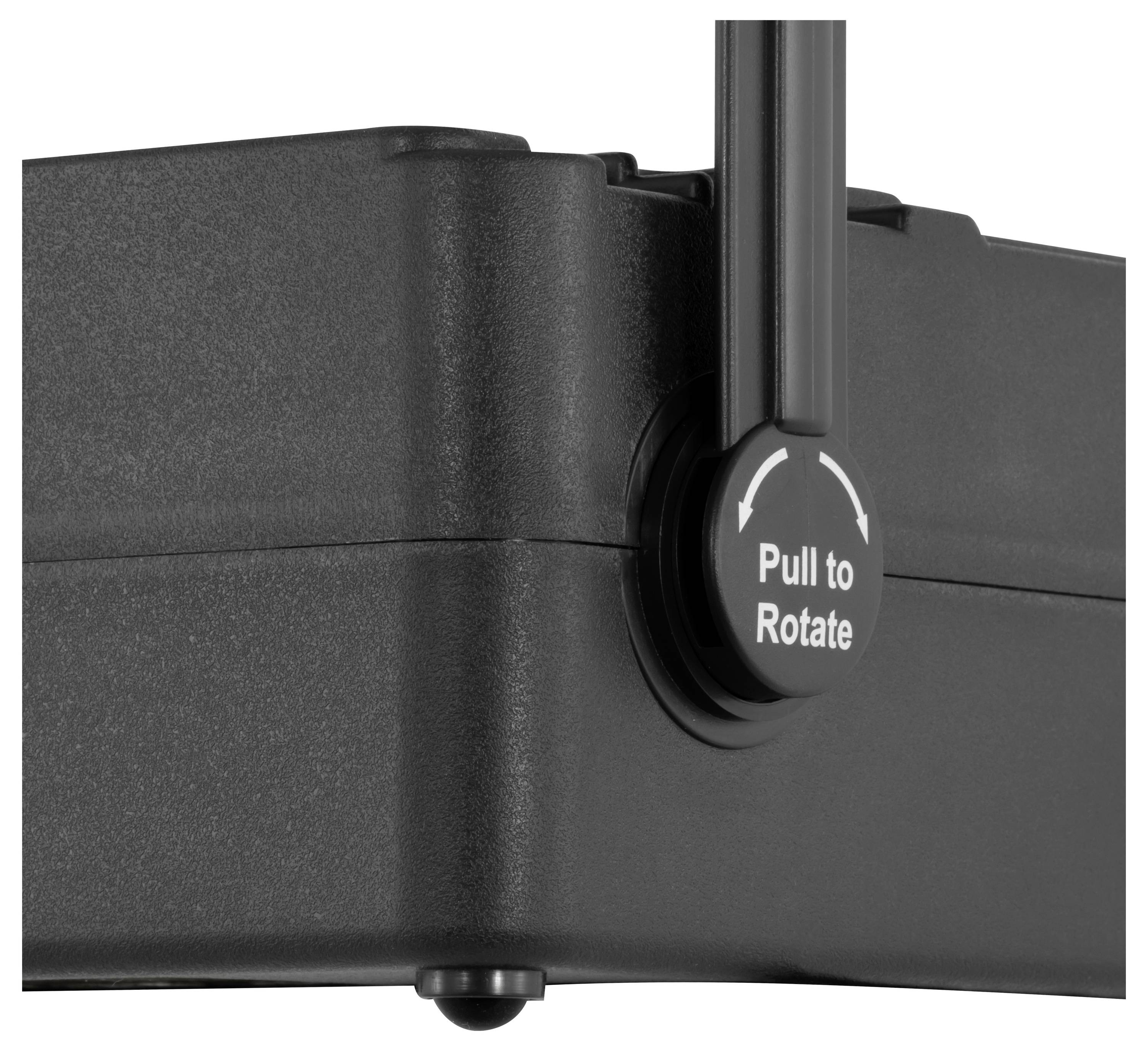

PCE instruments performance meter PCE-PA 7200-ICA
- Energy measurement in kWh
- Real-time data transfer and display on PC
- Internal memory up to 2000 sets of data
- Storage interval of 1s
- Max current 1,000 A
- Adjustable alarms
- Logand Recall function
- HOLD function
- Incl. ISO calibration certificate
Technical specifications
- Alternating voltage AC
- Measurement range 0:600 V
- Resolution 0.1 V
- Accuracy 1% from MW. + 5 digits
- Alternating current (AC)
- Measurement range 10:1000 A.
- Resolution: 0.1 A
- Accuracy 1.5% from MW. + 5 digits
- (Active power:
- Measurement range 0:9999 kW
- Resolution 0.01 kW
- Accuracy 2.5% from MW. + 5 digits
- Apparent power
- Measurement range 0:9999 kVA
- Resolution 0.01 kVA
- Accuracy 2.5% from MW. + 5 digits
- Power factor
- Measurement range 0.001:1
- Resolution 0.001
- Active energy
- Measurement range 0:9999 kWh
- Resolution 0.01 kWh
- Accuracy 2.5% from MW. + 5 digits
- Frequency
- Measurement range 45:65 Hz
- Resolution 0.1 Hz
- Accuracy 0.5% from MW. + 5 digits
- General Technical Data
- MEASUREMENT FUNCTIONS HOLD, MIN, MAX.
- Display type LCD with lighting
- Display size 4.7 inches
- Storage medium Internal memory
- Storage capacity of 2000 records
- Storage intervals of 1 s.
- Storage intervals of up to 1 s.
- Interface RS232
- Standard EN 61010-1, EN 61326-1
- Safety standard CAT III 600 V
- Acoustic, visual alarm
- Alarm modes below, above
- Measurement hole clamp meter 50 mm
- Menu language English US
- Protection class device IP30
- Battery/battery 6 x 1.5 V AA battery, alkaline-manganese
- Capacity: 3000 mAh
- Operating conditions 0:40 °C, 0:80 % r.h.
- Storage conditions 0:40 °C, 0:80 % r.h.
- Dimensions L x W x H 220 x 195 x 105 mm
- Weighs 889 g.
- Connector
PG plug
- Product type
Network diagnostics
- Reading category
CAT III
- Display (details)
LCD with lighting
- Phase detection
Yes
- PG recognition
No
ISO standards
- Power supply (details)
1.5 V
- Dim
(L x W x H) 220 x 195 x 105 mm
- Weight
889 g
- Calibration service
Incl. ISO calibration certificate
- Measurement type
1-phase
3-phase
- Features
Data logger
Clamp meter
Power testing
Troubleshooting
- Width
195 mm
- Height
105 mm
- Length
220 mm
- Interfaces
RS232
USB
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812648 PCE Instruments PCE-PA 7200-ICA Network diagnostics Calibrated to (ISO standards) 1-phase, 3-phase Data logger, Clamp me
User & Safety Instructions
User & Safety Instructions 3812648 PCE Instruments PCE-PA 7200-ICA Network diagnostics Calibrated to (ISO standards) 1-phase, 3-phase Data logger, Clamp me
Description

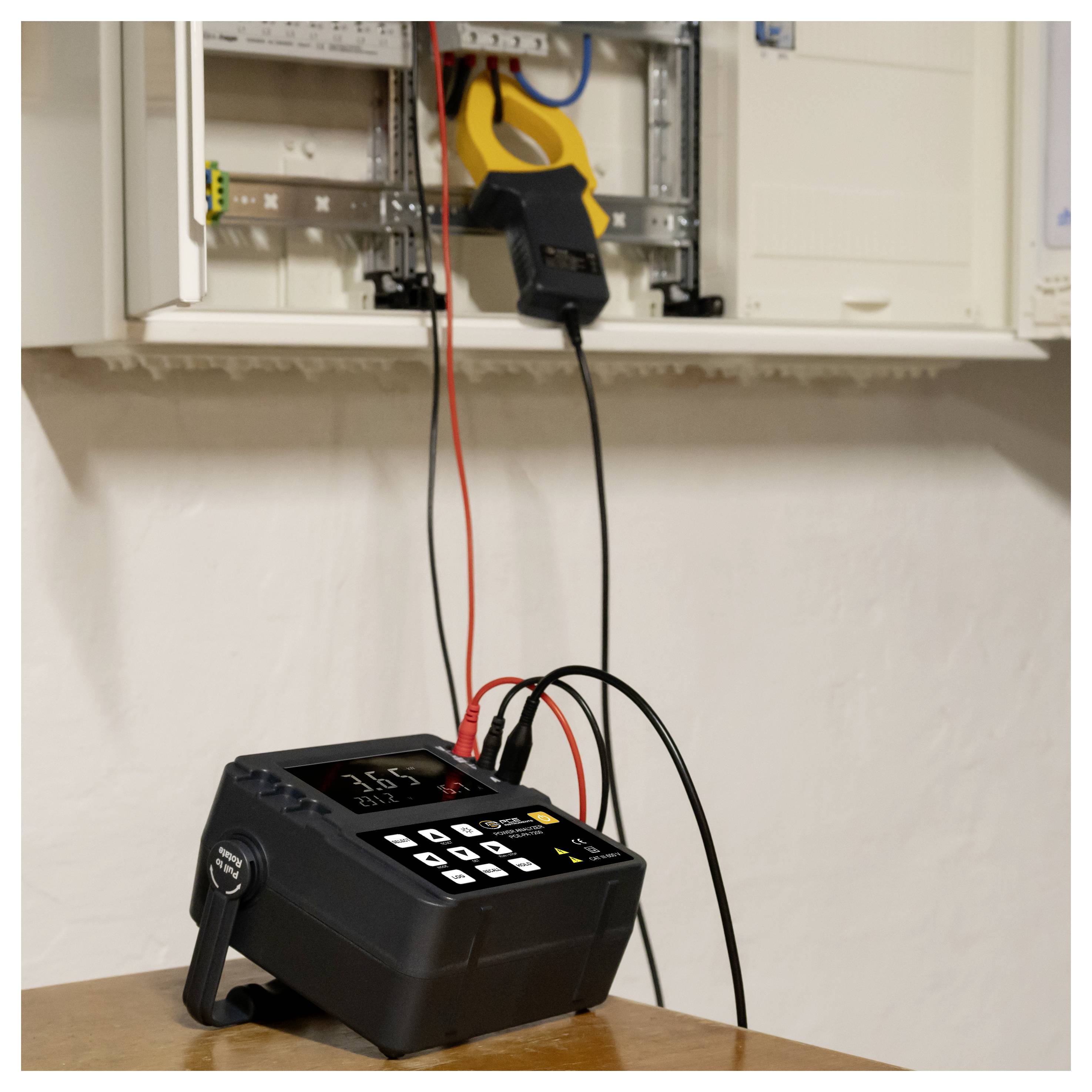

The power meter is a useful tool for the precise collection of different electrical parameters. With a measurement range of 0 to 600 V for alternating current and 0 to 1000 A for alternating current, it offers sufficient flexibility for different applications. Along with the measurement of effective power, power factor, active energy and frequency the power meter also enables the monitoring of power consumption and the associated costs. With its compact dimensions of 220 x 195 x 105 mm it is handy and easy to use.
The internal memory of the device can store up to 2000 data sets, which can be easily accessed via the LC display. In order to transfer the data to a PC, however, the installation of the supplied software is required which allows for a tabular as well as graphical visualization of the data. In addition, the data can be exported to a text document. The continuous data recording that can be started via the power meter takes place at intervals of one second until the memory is full. This memory can only be called up in the device. In addition, alarm functions can be set for upper and lower limit values for the measured power, AC voltage and AC current.
The integrated 'cost function' allows the operator to set a cost factor to display the total cost of consumption. In addition, a factor for weight can be set, for example to determine the gas consumption.
All in all, the power meter offers a wide range of applications and functionality for measuring and controlling current and energy consumption.
This text is machine translated.
The internal memory of the device can store up to 2000 data sets, which can be easily accessed via the LC display. In order to transfer the data to a PC, however, the installation of the supplied software is required which allows for a tabular as well as graphical visualization of the data. In addition, the data can be exported to a text document. The continuous data recording that can be started via the power meter takes place at intervals of one second until the memory is full. This memory can only be called up in the device. In addition, alarm functions can be set for upper and lower limit values for the measured power, AC voltage and AC current.
The integrated 'cost function' allows the operator to set a cost factor to display the total cost of consumption. In addition, a factor for weight can be set, for example to determine the gas consumption.
All in all, the power meter offers a wide range of applications and functionality for measuring and controlling current and energy consumption.
This text is machine translated.
Scope of delivery

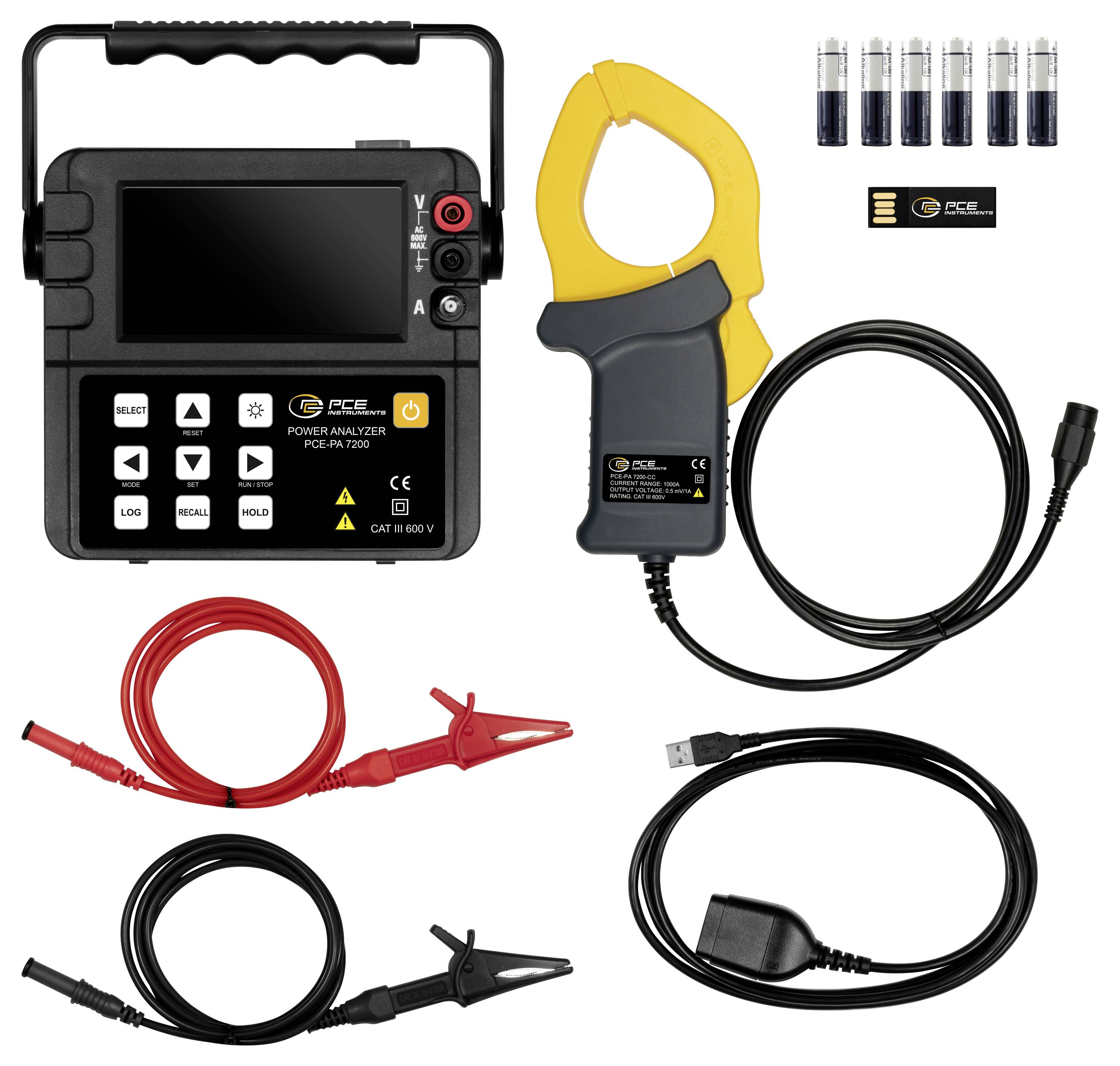

- 1 x performance meter PCE-PA 7200-ICA

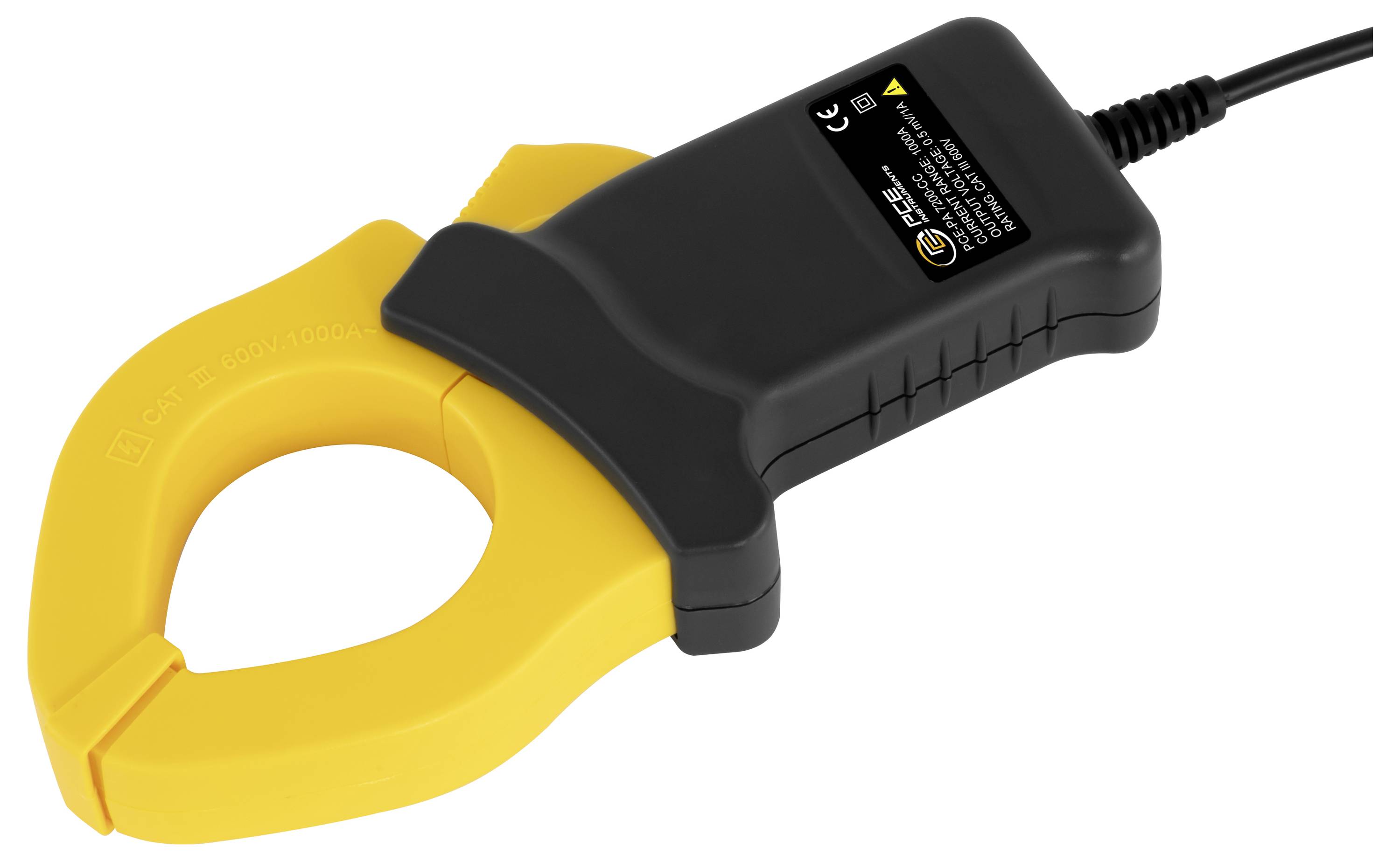

- 1 x AC clip-on ammeter

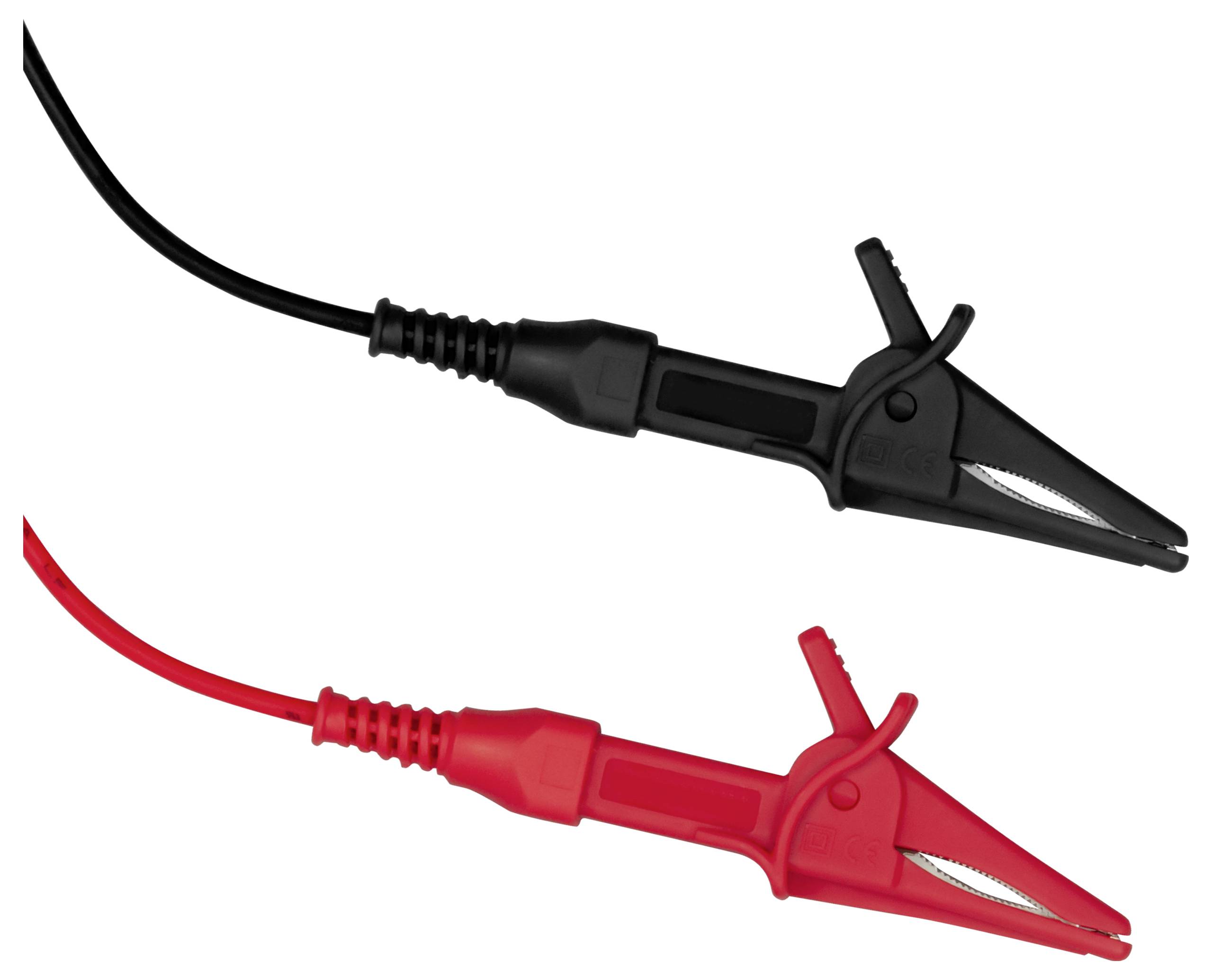

- 2 x test leads
