Name: PCE Instruments PCE-PH20 pH meter Temperature, pH
Brand: PCE Instruments
SKU: 2452577

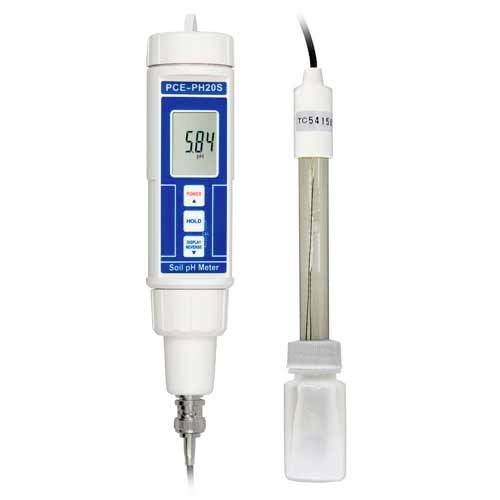

Digital soil pH meter showing 5.84 beside its probe on a white background<br>

Close-up of a glass conductivity probe with a protective cap and attached cable, used for measuring liquid conductivity.

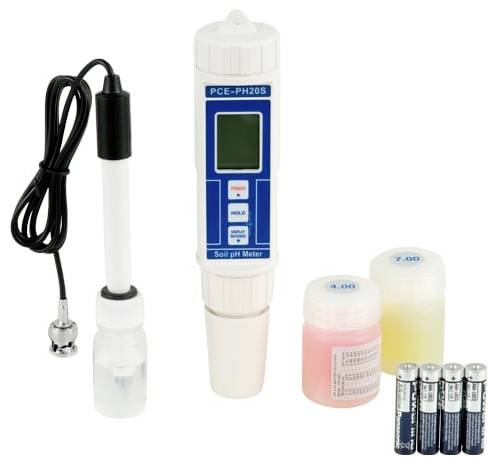

Soil pH meter kit with digital meter, probe, calibration bottles, and batteries.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PH meter PCE-PH20 for aqueous media

Waterproof (IP 67)Special external measuring electrode on cableHigh accuracyAuto power-off for battery protectionSupplied with calibration solutionsData hold functionEasy to read digital displayEasy to use

Technical specifications

Measurement range 0.00...14.00 pH Resolution 0.01 pH Accuracy ±0.07 pH (in the range 5 ... 9 pH) ±0.1 pH (in the range 4 ... 4.9 and 9.1 ... 10 pH) ±0.2 pH (in the range 1 ... 3.9 and 10 ... 13 pH) Calibration automatically, at pH 4, 7, or 10 using calibration solutions PH electrode with BNC plug for liquids Power supply 4 x 1.5 V AAA batteries Ambient conditions 0 ... +60 °C /< 80 % RH Dimensions 180 x 40 mm Weight 220 g.

Product type: pH meter

Reading type: Temperature
pH

Display: LCD

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 40 x 25 x 180 mm

Weight: 220 g

Temperature reading range: 0 up to 60 °C

Temperature reading range (max.): 60 °C

Temperature reading range (min.): 0 °C

pH reading range: 0 - 14 pH

pH reading range (max.): 14 pH

pH reading range (min.): 0 pH

Width: 25 mm

Height: 180 mm

Length: 40 mm

Documents & Downloads

Datasheet

Datasheet 2452577 PCE Instruments PCE-PH20 pH meter Temperature, pH

User & Safety Instructions

User & Safety Instructions 2452577 PCE Instruments PCE-PH20 pH meter Temperature, pH

Description

PH-Meter PCE-PH20 easy to use pH-meter for determining the pH-value / external pH-electrode / recalibrable / waterproof (IP 67) the PH-meter was developed to directly determine the pH-value in aqueous media. The PPCE-PH20 waterproof pH tester is designed to quickly and accurately measure pH. The practical display makes it easy to read the pH value at the pH meter. The waterproof and robust housing (IP 67) means that the pH-value tester can also be used under difficult conditions. Recalibration always guarantees optimum accuracy and is very easy to carry out using the optionally available calibration kits (automatic calibration function without calibration screws - only to be carried out via the keyboard).

This text is machine translated.
