PCE Instruments PCE-SCS 150 Platform scales PCE-SCS 150 Weight range 30 kg Readability 10 g rechargeable, rechargeable
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Weighing range 150 kg Readability 10 g The full range of the taring area Adjustable settling time Weighing units kg / lb Display 20 mm LCD backlit Platform size 400 x 500 mm (stainless steel) Calibration by external calibration weight (optional) Operating temperature -10 °C ... 40 °C). Memory 18 values Power supply 100-240V 50 / 60Hz - 12V adapter Rechargeable battery: 6V4Ah Battery life 130 hours Input signal analogueue 10.6 mV / V - 3 mV / V. Linearity ≤ 0.01% F.S. Dimensions 680 x 660 x 150 mm Weight 8 kg.
- Weight range
30 kg
- Product type
Platform scales
- Readability
10 g
- Display
Digital
- Power supply (LOV)
rechargeable
rechargeable
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 680 x 150 x 660 mm
- Weight
8000 g
- Weight resolution
10 g
- Weighing plate
Stainless steel
- Width
150 mm
- Height
660 mm
- Length
680 mm
- Type
PCE-SCS 150
- Features
Counting
Calibratable
- Top plate (width)
150 mm
- Top plate (length)
680 mm
Documents & Downloads
Datasheet
Datasheet 2452824 PCE Instruments PCE-SCS 150 Platform scales PCE-SCS 150 Weight range 30 kg Readability 10 g rechargeable, rechargeable
User & Safety Instructions
User & Safety Instructions 2452824 PCE Instruments PCE-SCS 150 Platform scales PCE-SCS 150 Weight range 30 kg Readability 10 g rechargeable, rechargeable
Description

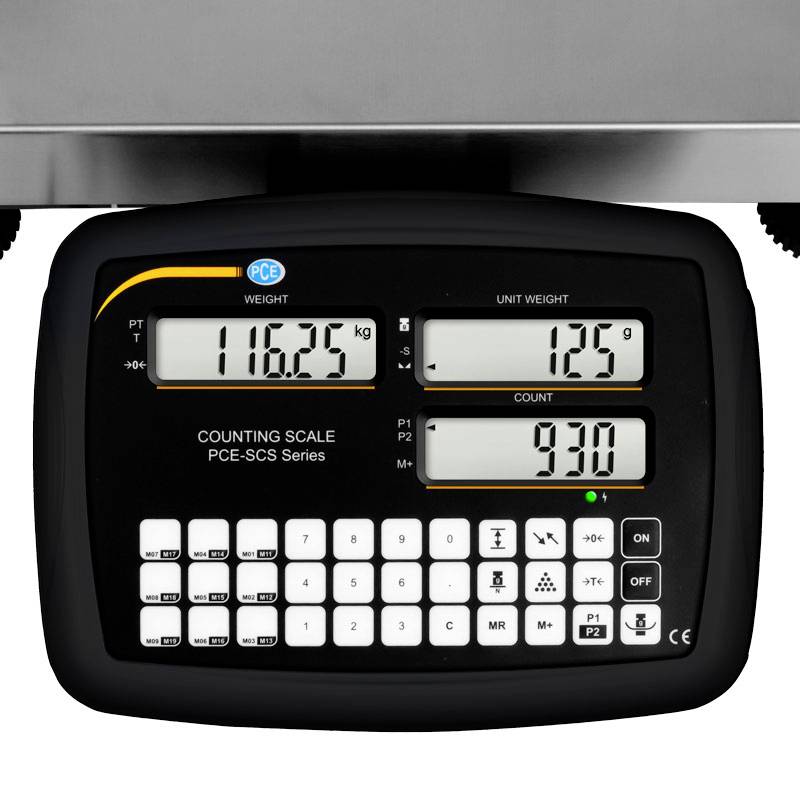

Economical platform scales up to 150 kg, readability 10 g, mains and battery operation, large 20 mm LC display, removable stainless steel platform, zero and tare function The platform scale has a 400 x 500 mm stainless steel platform, which can be removed for cleaning. Flexible use of the mobile platform scales not only enables the light weight and the compact dimensions, but also the independant power supply, which is possible with a 6V4Ah battery. If the 4 load cells of the platform scale with a weighing capacity of 150 kg and a resolution of only 10 g require adjustment, this can be done easily and quickly using external weights (optional) in the calibration function of the platform scale. Thanks to the key operation, the fast response time of the platform scale and the easy-to-read 20 mm LCD display, this platform scale is particularly suitable for mobile and fast weighing applications.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x Platform scales PCE-SCS 150
- 1 power unit
- 1x user manual
