Name: PCE Instruments PCE-T 238-ICA Handheld tachometer Calibrated to (ISO standards) Optical, Mechanical 0.5 - 19999 U/min 5
Brand: PCE Instruments
SKU: 3812733

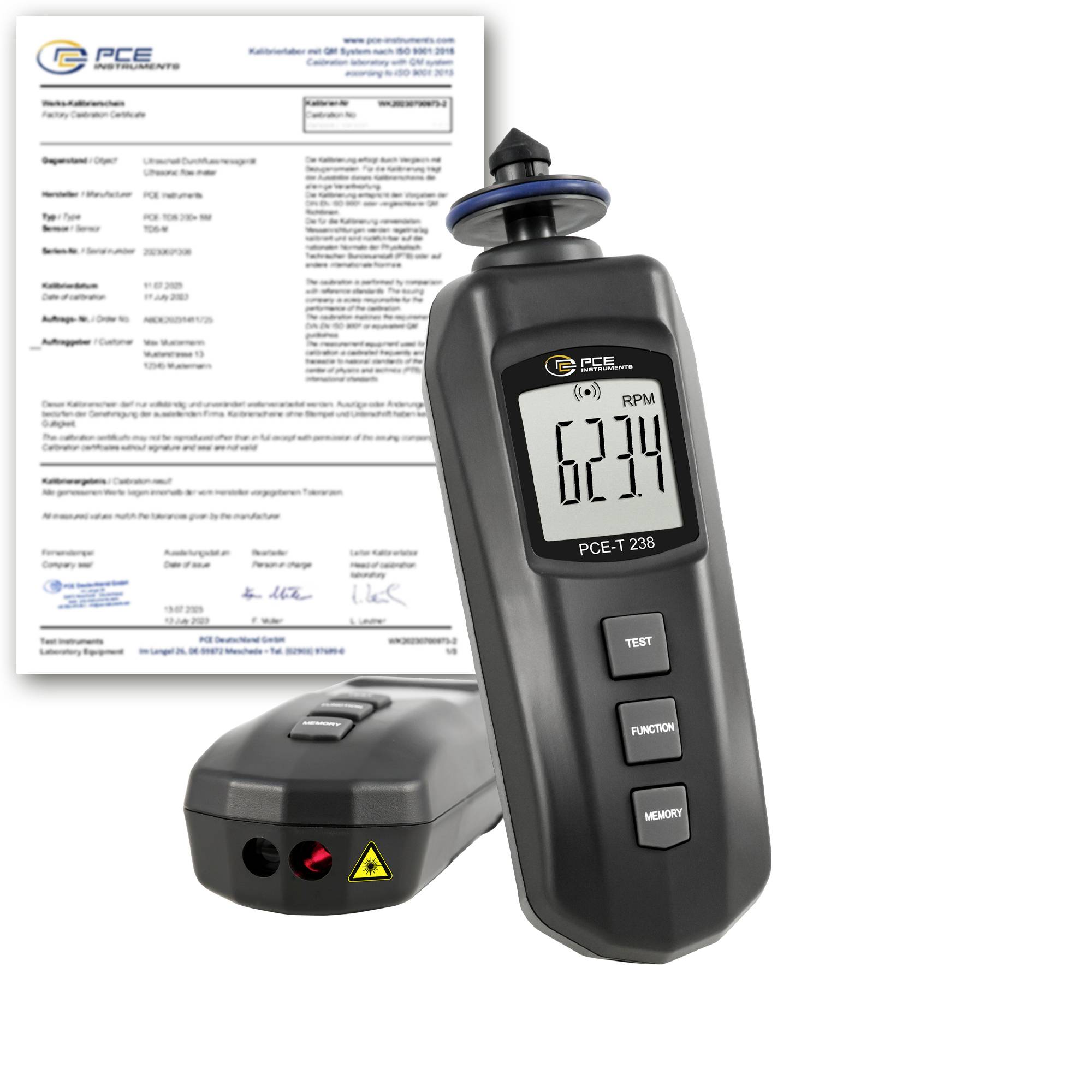

Handheld PCE tachometer shows 6234 RPM beside a calibration certificate and sensor attachment, indicating a calibrated speed measurement tool.

Black handheld laser barcode scanner with two buttons and a red scanning light, shown front view on a white background.

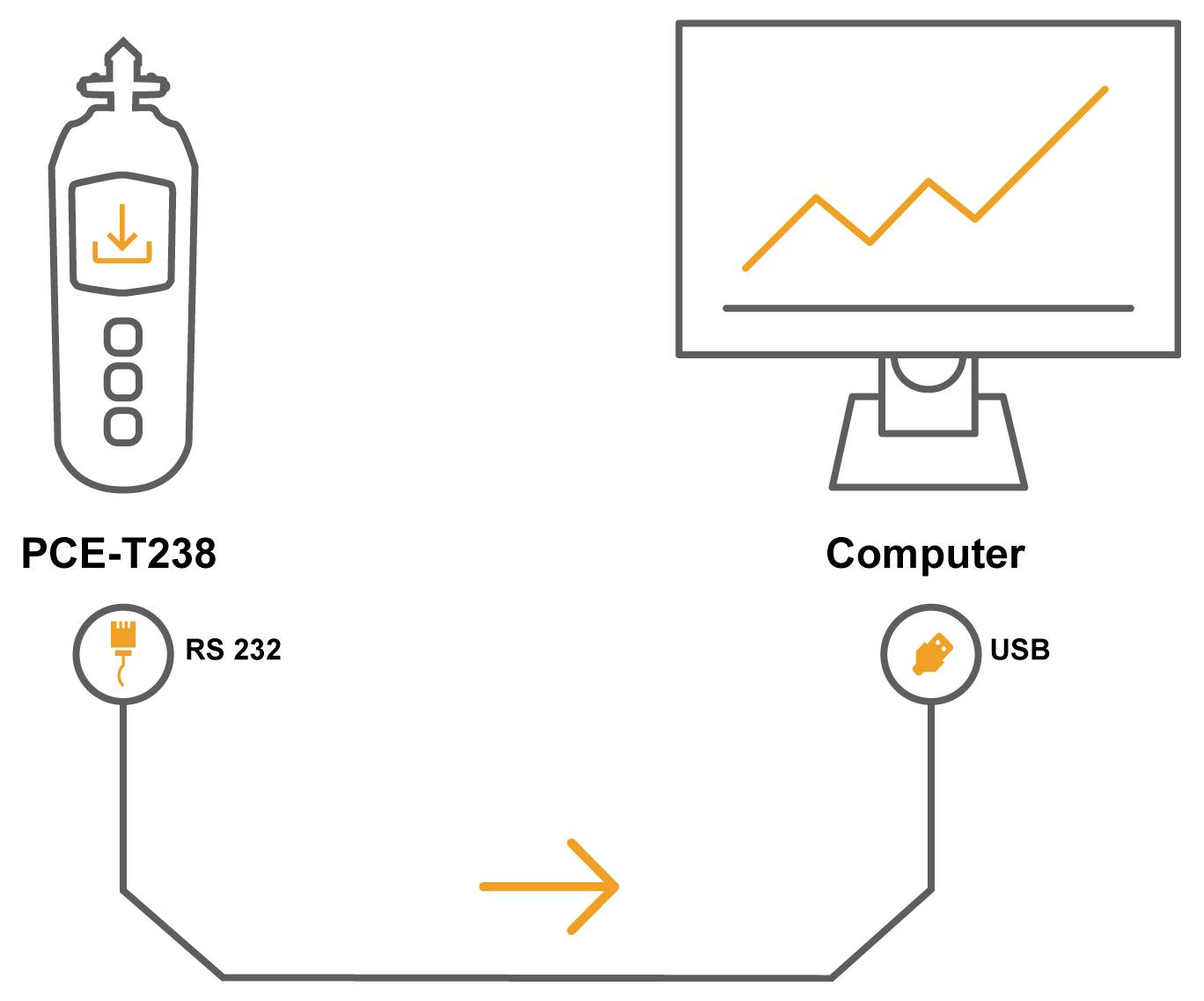

Diagram showing PCE-T238 connected to a computer via RS232 on the left and USB on the right, with an arrow indicating data transfer.

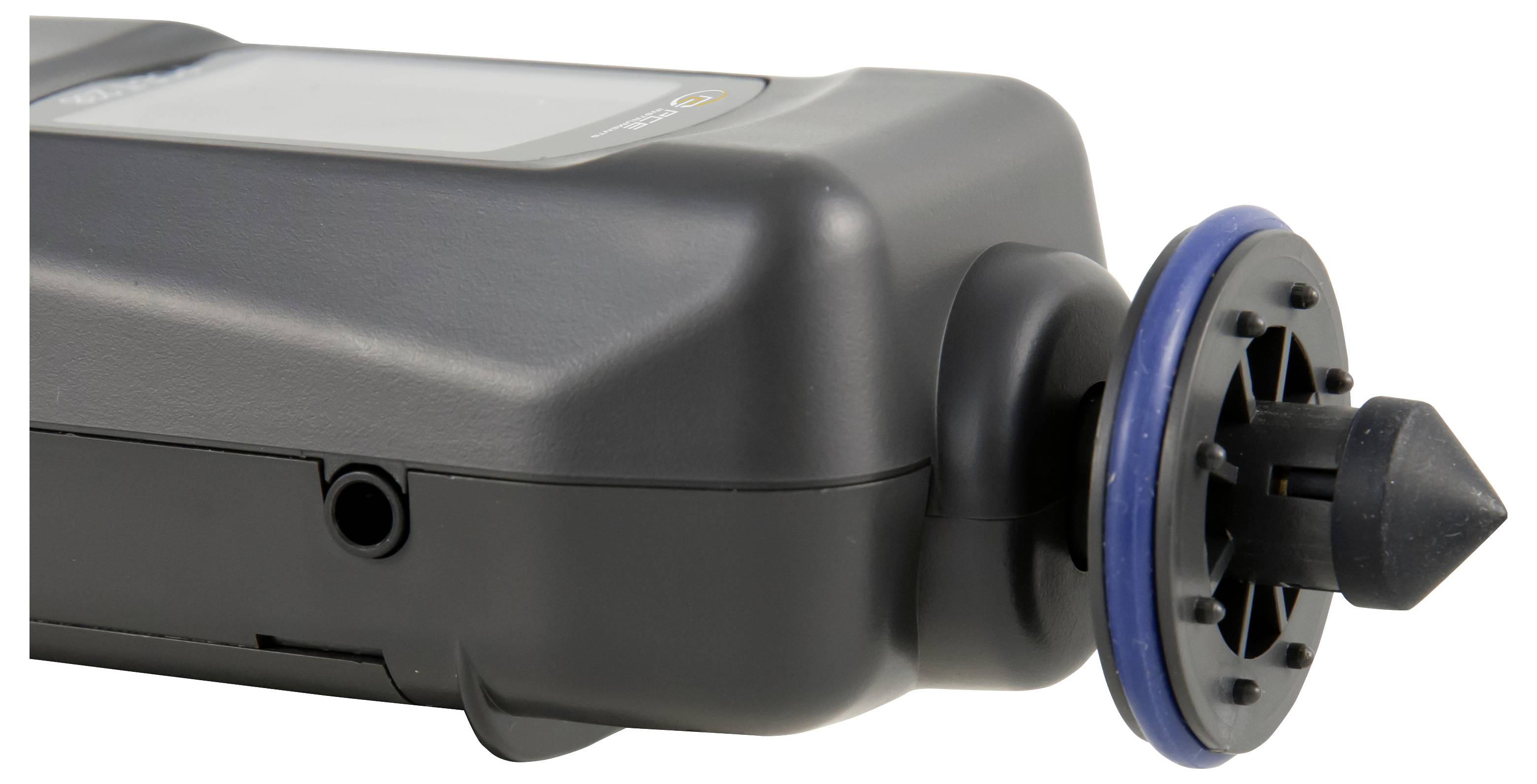

Close-up of a black handheld device showing its front nozzle or connector with a blue ring and pointed cap.

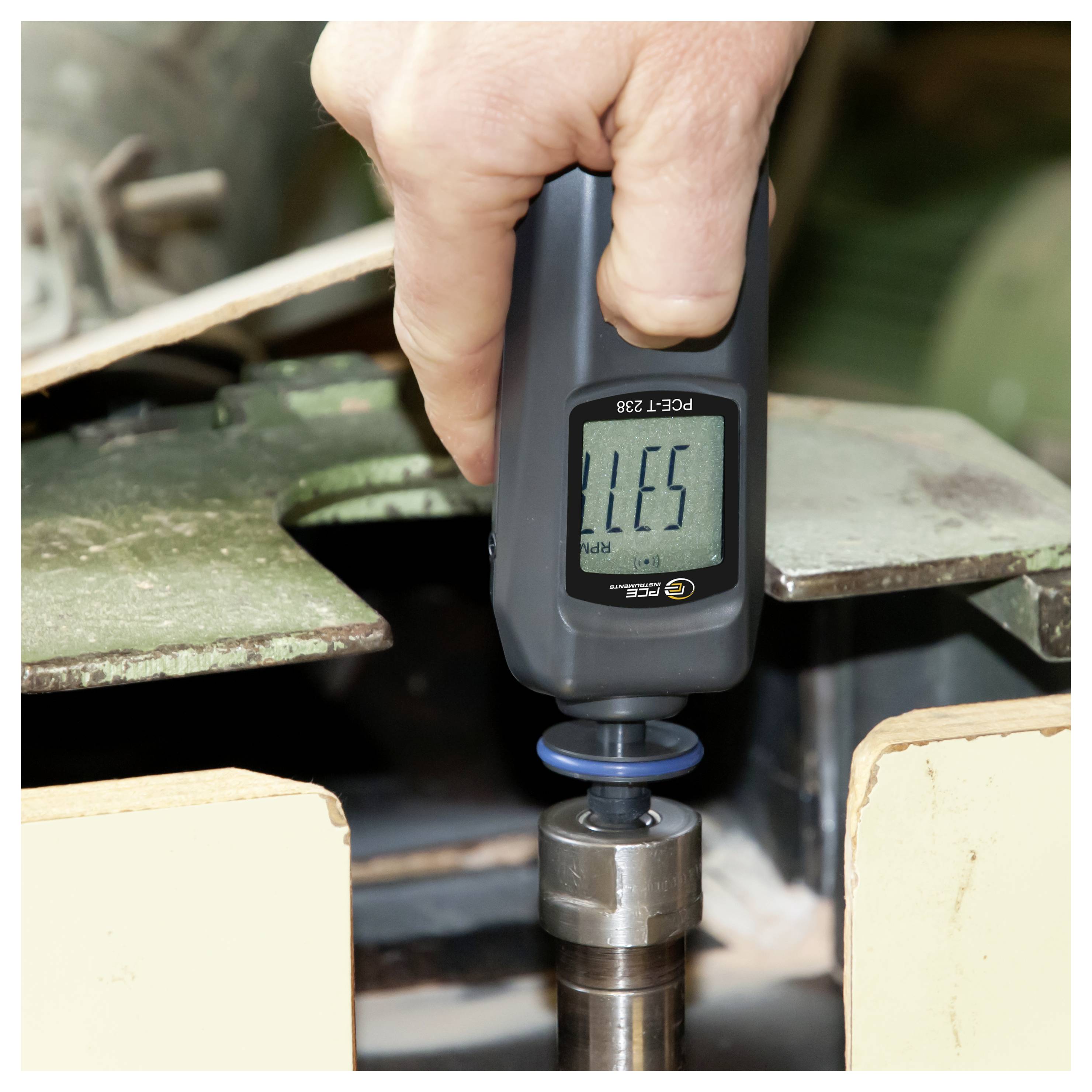

Hand-held digital gauge measuring a metal spindle or shaft in a machine setup.

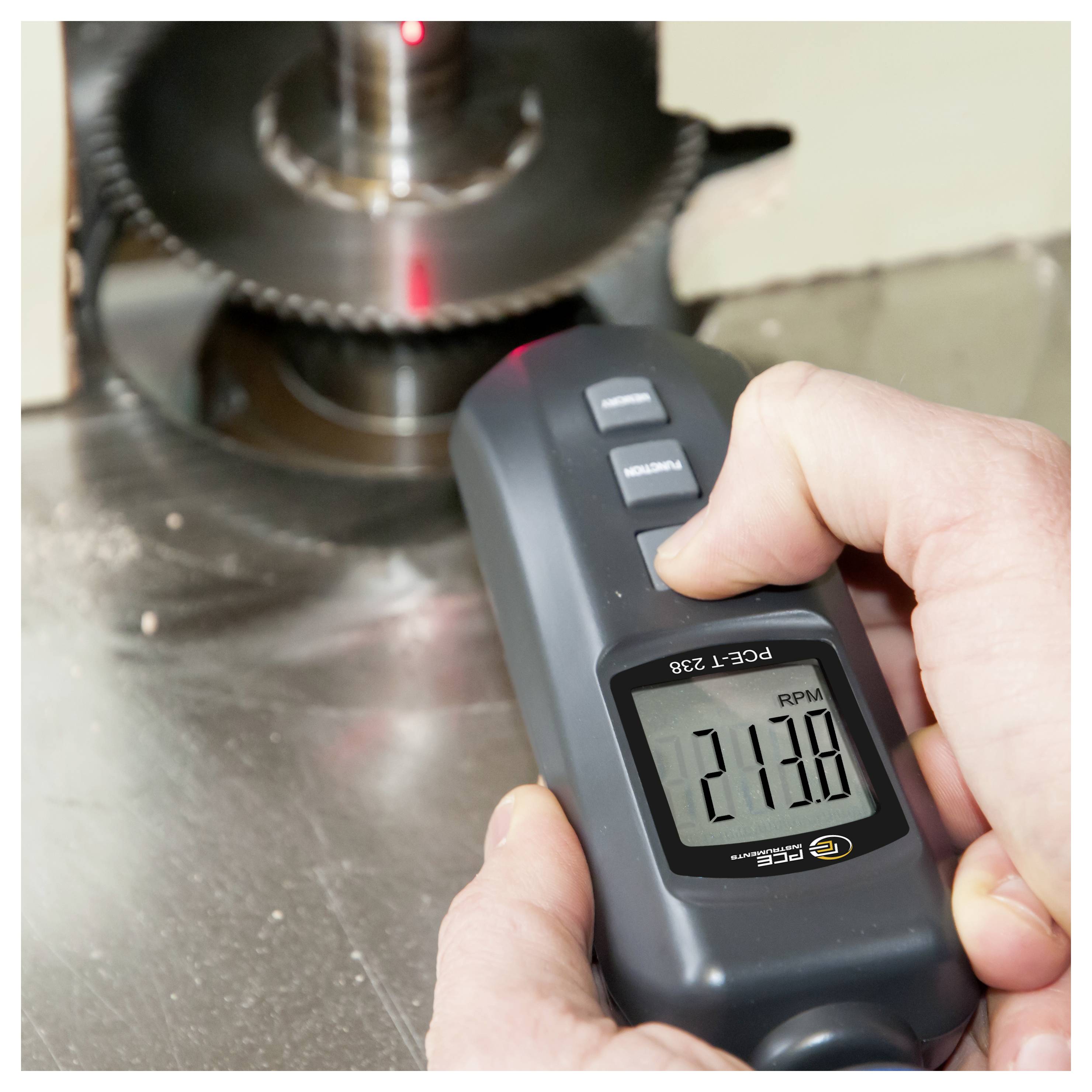

Person using a handheld digital tachometer to measure the RPM of a spinning metal saw blade, reading about 2138 RPM.<br>

Handheld PCE-T 238 thickness gauge with batteries, two probe attachments, and a white calibration plate.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

PCE instruments hand tachometer PCE-T 238-ICA

The non-contact measurement of the manual tachometer takes place via a laser
Contact measurement of m/min via surface wheel
Robust ABS-plastic casing
With different rubber-coated measuring tips (cone shape and funnel shape)
The speed can be checked on components that are difficult to access
Independent of direction of rotation
Running speed
Incl. ISO calibration certificate

Technical specifications

Rotational speed, mechanical
Measuring range 0.5 ... 999 R/min
Resolution 0.1 Rev/min
Accuracy +/-(0.1 % from MW. +1 digit) from the scale end value
Rotational speed, mechanical
Measuring range 1000 ... 19999 R/min
Resolution 1 Rev/min.
Accuracy +/-(0.1 % from MW. +1 digit) from the scale end value
Rotational speed, optical
Measuring range 5 ... 999 R/min
Resolution 0.1 Rev/min
Accuracy +/-(0.1 % from MW. +1 digit) from the scale end value
Rotational speed, optical
Measuring range 1000 ... 99999 R/min
Resolution 1 Rev/min.
Accuracy +/-(0.1 % from MW. +1 digit) from the scale end value
Speed
Measuring range 0.05 ... 99.99 km/h
Resolution 0.01 km/h
Accuracy +/-(0.1 % from MW. +1 digit) from the scale end value
Speed
Measuring range 100 ... 999.9 m/min
Resolution 0.1 m/min.
Accuracy +/-(0.1 % from MW. +1 digit) from the scale end value
Speed
Measuring range 1000 ... 1999.9 m/min
Resolution 1 m/min.
Accuracy +/-(0.1 % from MW. +1 digit) from the scale end value
General Technical Data
Unit(s) ft/min, m/min, RPM, in/min
Display type LCD
Display size 1.67 inches
Storage information Stores MAX, MIN and the last measured value
Interface RS232
Class 2 laser smaller than 1 mW
Measuring distance 5 ... 150 cm
Menu language English (US), English (GB)
Protection class (device) IP20
Power supply batteries
Battery 4 x 1.5 V AAA battery , alkaline-manganese
Capacity 1200 mAh
Operating conditions 0 ... 50 °C , 0 ... 80 % r.F.
Storage conditions 0 ... 50 °C , 0 ... 80 % r.F.
Dimensions ( L x W x H ) 165 x 50 x 33 mm
Weighs 182 g.

Product type: Handheld tachometer

Measuring type: Optical
Mechanical

RPM accuracy: ±(0,1 % v. Mw. +1 Digit) vom Skalenendwert

Speed resolution: 0.1 U/min

Operating voltage: 1.5 V

Dim: (L x W x H) 165 x 50 x 33 mm

: ISO standards

Weight: 182 g

Display: LCD

Rotational speed, mechanical (max.): 19999 U/min

Rotational speed, mechanical (min.): 0.5 U/min

Rotational speed, optical (max.): 99999 U/min

Rotational speed, optical (min.): 5 U/min

Rotational speed range (max.): 0.5 - 19999 U/min

Rotational speed (optical): 5 - 99999 U/min

Calibration service: Incl. ISO calibration certificate

Width: 50 mm

Height: 33 mm

Length: 165 mm

Type: PCE-T 238-ICA

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3812733 PCE Instruments PCE-T 238-ICA Handheld tachometer Calibrated to (ISO standards) Optical, Mechanical 0.5 - 19999 U/min 5

User & Safety Instructions

User & Safety Instructions 3812733 PCE Instruments PCE-T 238-ICA Handheld tachometer Calibrated to (ISO standards) Optical, Mechanical 0.5 - 19999 U/min 5

Description

The handheld tachometer is a battery-powered handheld instrument that can be used mobile. The manual tachometer can carry out a contact-free measurement as well as a contact-free measurement. It is also possible to measure the surface velocity. The hand-held tachometer allows a measurement of up to 99,999 revolutions per minute. This measuring range is possible with contact-free measurements with the optical tachometer. In the contacting measurement, values of up to 19,999 revolutions per minute can be determined, and the measurement of the surface speed offers the possibility of determining speeds up to 1999.9 meters per minute. Such measurements can be started directly with the manual tachometer and do not need much preparation.

The user does not need to pay attention to the direction of rotation when using the manual tachometer, as this device works and can be used independently of it. Thus, it is precisely to be used in the maintenance and maintenance of machines. Through the contact-free measurement, it is also possible to check the speed of the components that are difficult to access.
