Name: PEM CWT 1 Ultra Mini Clamp meter adapter Calibrated to (DAkkS standards) A/AC reading range: 300 A (max) Flexible
Brand: PEM
SKU: 3064993

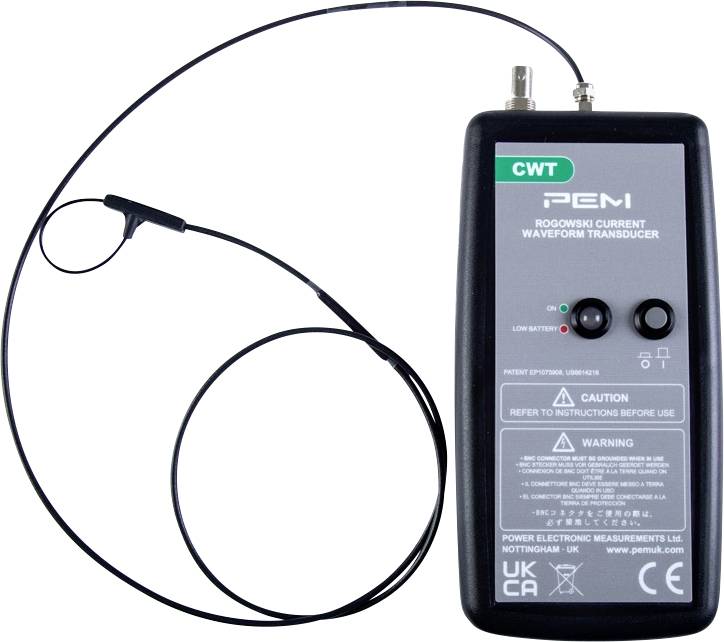

A Rogowski current waveform transducer with a CWT label, showing a cable and connector for measuring electrical current.

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Rogowski current loop CWT 1 Ultra Mini

N/A
Opening range of current clamps 80 mm

Technical specifications

Output signal: 1.0 mV/A

Opening range of current clamps: 80 mm

Product type: Clamp meter adapter

Type B: BNC socket

: DAkkS standards

Amperage reading range AC (max.): 300 A

Basic accuracy: 2 %

Power supply (details): 4 x AA battery

Dim: (L x W x H) 183 x 93 x 32 mm

Current reading: AC

Output signal (max.): 6 V

Width: 93 mm

Height: 32 mm

Length: 183 mm

Features: Flexible

Variants(All information is without VAT, plus shipping costs)

Amperage reading range AC (max.)

Calibrated to

PEM CWT 1 Ultra Mini Clamp meter adapter Calibrated to (DAkkS standards) A/AC reading range: 300 A (max) Flexible

Item no:3064993

Unavailable

Conrad Electronic

This article

300 A

DAkkS standards

Piece(s)

Minimum order quantity: 1

Multiple: 1

PEM CWT 015 Ultra Mini Clamp meter adapter A/AC reading range: 30 A (max) Flexible

Item no:1667152

Fast track dispatch on Thu 29 Oct

1 Piece(s)Conrad Electronic

30 A

Manufacturer's standards (no certificate)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,125.00^*

PEM CWT 03 Ultra Mini Clamp meter adapter A/AC reading range: 60 A (max) Flexible

Item no:1667065

Available soon

Conrad Electronic

60 A

Manufacturer's standards (no certificate)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,125.00^*

PEM CWT 06 Ultra Mini Clamp meter adapter A/AC reading range: 120 A (max) Flexible

Item no:1667153

Fast track dispatch on Thu 29 Oct

1 Piece(s)Conrad Electronic

120 A

Manufacturer's standards (no certificate)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,125.00^*

PEM CWT 1 Ultra Mini Clamp meter adapter A/AC reading range: 300 A (max) Flexible

Item no:1667093

Available soon

Conrad Electronic

300 A

Manufacturer's standards (no certificate)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,125.00^*

PEM CWT 15 Ultra Mini Clamp meter adapter A/AC reading range: 3000 A (max) Flexible

Item no:1667154

Fast track dispatch on Thu 29 Oct

1 Piece(s)Conrad Electronic

3000 A

Manufacturer's standards (no certificate)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,125.00^*

PEM CWT 3 Ultra Mini Clamp meter adapter A/AC reading range: 600 A (max) Flexible

Item no:2114736

Available soon

Conrad Electronic

600 A

Manufacturer's standards (no certificate)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,819.00^*

PEM CWT 30 Ultra Mini Clamp meter adapter A/AC reading range: 6000 A (max) Flexible

Item no:1667066

Available soon

Conrad Electronic

6000 A

Manufacturer's standards (no certificate)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,125.00^*

PEM CWT 6 Ultra Mini Clamp meter adapter A/AC reading range: 1200 A (max) Flexible

Item no:2114731

Available soon

Conrad Electronic

1200 A

Manufacturer's standards (no certificate)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 2,819.00^*

PEM CWT 015 Ultra Mini Clamp meter adapter Calibrated to (DAkkS standards) A/AC reading range: 30 A (max) Flexible

Item no:2388230

Unavailable

Conrad Electronic

30 A

DAkkS standards

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 3064993 PEM CWT 1 Ultra Mini Clamp meter adapter Calibrated to (DAkkS standards) A/AC reading range: 300 A (max) Flexible

User & Safety Instructions

User & Safety Instructions 3064993 PEM CWT 1 Ultra Mini Clamp meter adapter Calibrated to (DAkkS standards) A/AC reading range: 300 A (max) Flexible

Description

Rogowski current loop of the CWT Ultra mini-series are easy to fit, practical feedback-free, ideal for tight installation spaces, insulated up to 1200 V and insensitive against overcurrent. You can run for measurement of current with fast current pulses, switching flanks or sinusoidal or sinusoidal current run can be used. Rogowski coils of the CWT Ultra Mini series of P.E.M. are suitable for development and testing tasks in devices and components of power electronics. You can combine a only 1.6 mm thin, flexible, insulated, easily created coil with the ability to very fast current curves exactly to capture, whether sinusoidal, clock or pulse-shaped.

This text is machine translated.

Features

Recording of current run of semiconductor switches
Development, testing and maintenance of power electronics
Measuring technical monitoring sine-wave of high-frequency currents
Measuring fault currents and shutdown current run
Measurement of pulse currents
Measurement of alternating currents with high direct current shares
Measurement of current harmonic
Measurement of phase or fault currents in three-phase systems

Scope of delivery

Batteries
0.5 m BNC cable
User manual.

Hints

Please check carefully whether all specifications your desired requirements. (Cable length, loop length, etc.). This is necessary because all cwt's customer-specific custom and therefore cannot be exchanged.
