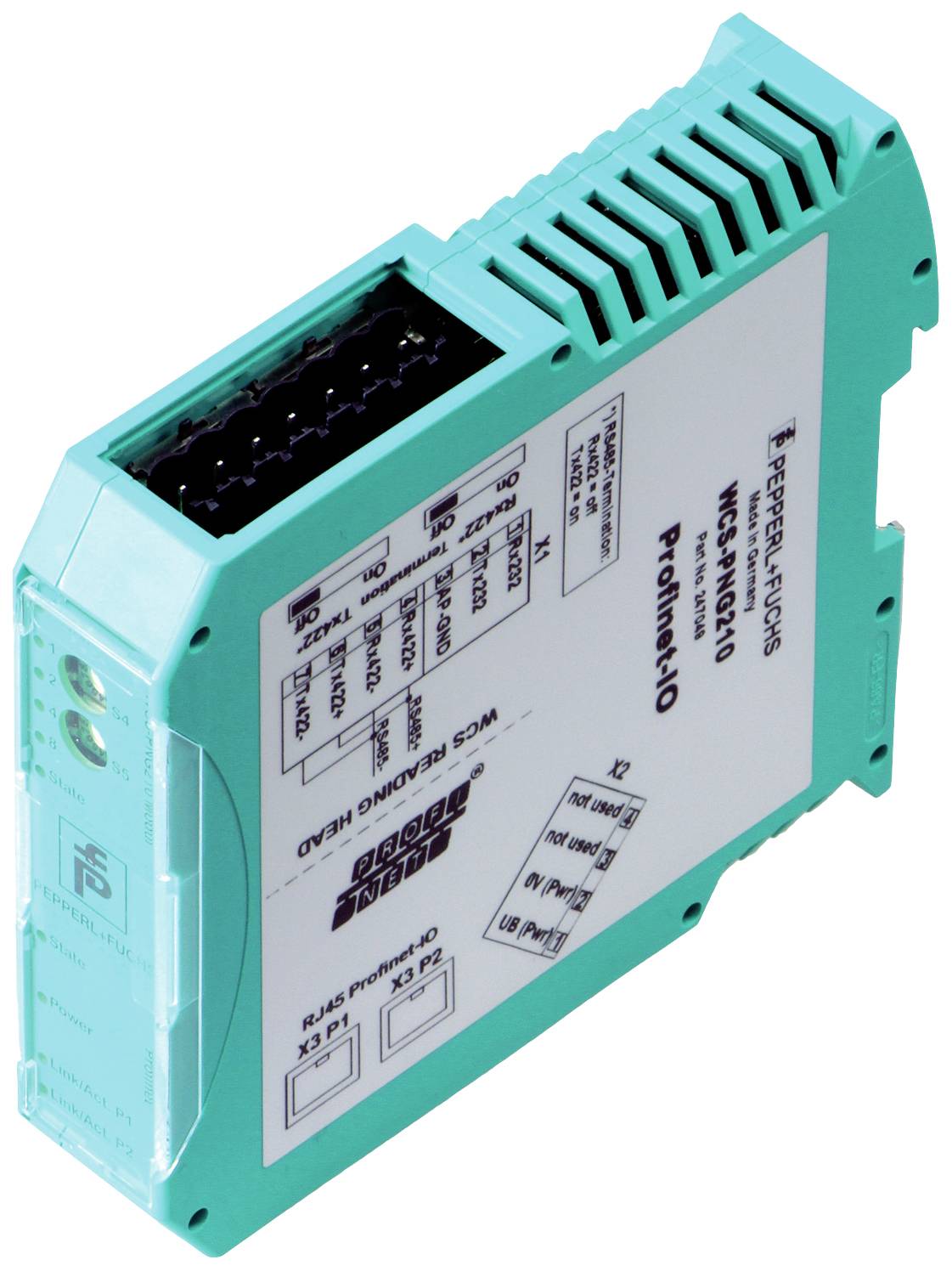

Pepperl+Fuchs 247049 Interface module WCS-PNG210 1 pc(s)
Product type
Interface module
Type
WCS-PNG210
Content
1 pc(s)
Wireless charging
No
UKCA
yes
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Interface module
- Type
WCS-PNG210
- Content
1 pc(s)
- Wireless charging
No
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2629115 Pepperl+Fuchs 247049 Interface module WCS-PNG210 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2629115 Pepperl+Fuchs 247049 Interface module WCS-PNG210 1 pc(s)
Description
Interface type: Ethernet; 100 BASE-TX, interface type: Ethernet; 100 BASE-TX, operating voltage: 10 ... 30 V DC , Power consumption: = 3.6 W (without reading heads), Material: Plastic, Connection type: Interface 1 ;amp 2: RJ-45 socket, 8-pin interface 3: Terminal connection = 2.5 mm2, 5-pin
This text is machine translated.
This text is machine translated.
Features
- General data
- Mounting: DIN rail mounting
- Functional safety characteristics
- MTTF d: 180 a
- Operating time (TM): 20 a
- Diagnostic coverage (DC): 0%
- Electrical Data
- Operating voltage: 10 ... 30 V DC
- Power consumption: ≤ 3.6 W (without reading heads)
- Interface 1
- Connection for: Control
- Interface type: Ethernet; 100 BASE TX
- Protocol: PROFINET IO
- Data transfer rate up to 100 Mbit/s.
- Data output: Binary code
- Interface 2
- Connection for: Control
- Interface type: Ethernet; 100 BASE TX
- Protocol: PROFINET IO
- Data transfer rate up to 100 Mbit/s.
- Data output: Binary code
- Interface 3
- Interface type: For read heads WCS-LS121, WCS-LS221 | switchable terminating resistor | update cycle reading head: 1 ms
- Physical: RS-485
- Protocol: Semi-duplex
- Data transfer rate up to 62.5 Mbit/s.
- Compliance with standards
- Interference emission EN 55011, cl. A: 2007
- IEC 61000-6-2:2005
- Approvals and certificates
- EAC CONFORMITY TR CU 020/2011
- CCC approval: Products whose max. Operating voltage ≤36 V is, are not subject to approval and therefore do not carry a CCC mark.
- Ambient conditions
- Operating temperature: 0 ... 55 °C (32 ... 131 °F) , no condensation
- Storage temperature: -40 ... 70 °C (-40 ... 158 °F)
- Relative humidity: ≤ 80%
- Mechanical data:
- Connection type: Interface 1 & 2: RJ-45 jack, 8-pin | Interface 3: Terminal connection ≤ 2.5 mm2 , 5-pin
- Case width 23 mm
- Housing height 118 mm
- Protection class: IP20
- Material: plastic
- All mounting positions permitted
- Approximate weight 200 g
