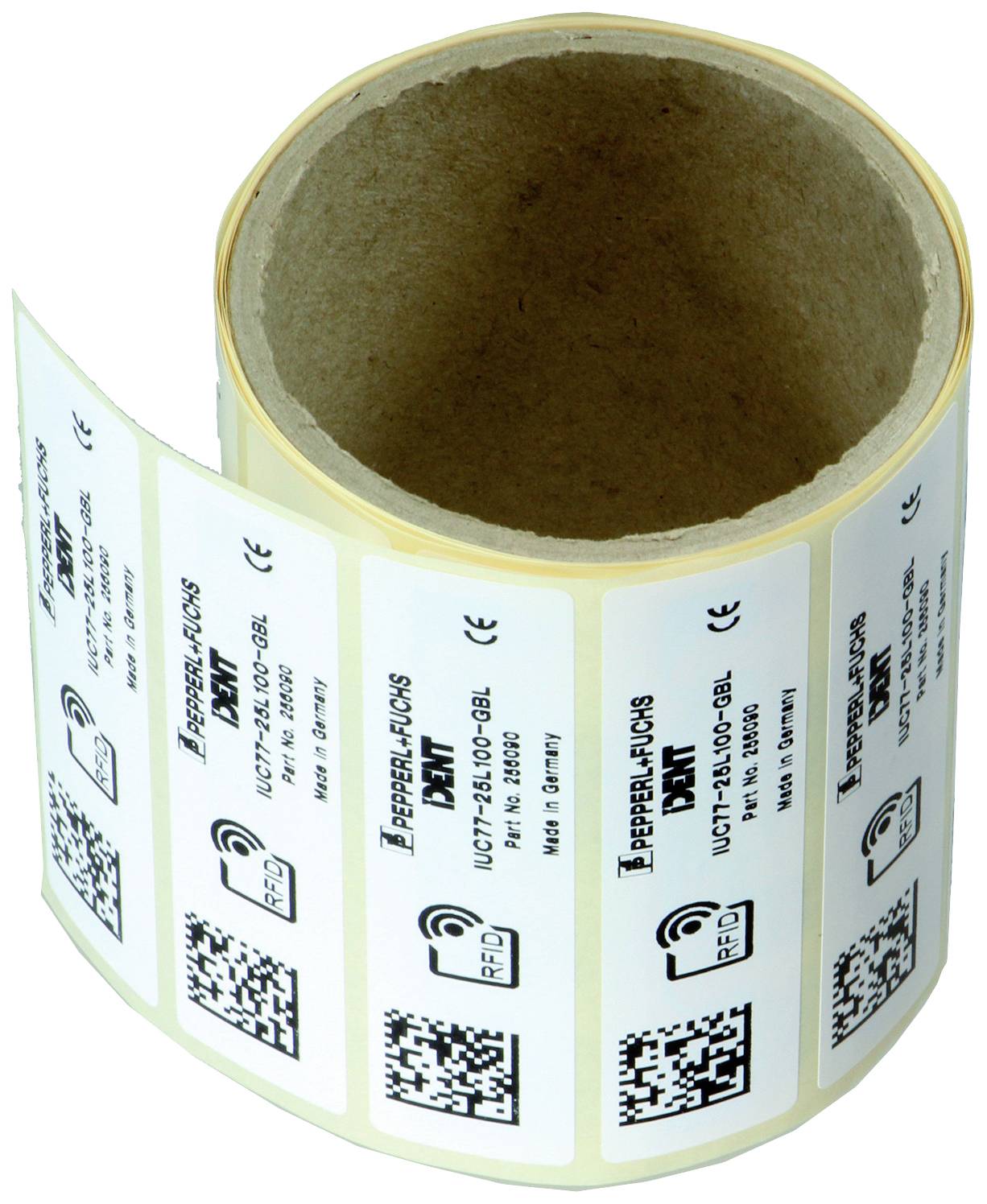

Pepperl+Fuchs 256090 RFID transponder IUC77-25L100-GBL 1000pcs 1000 pc(s)
Product type
RFID transponder
Type
IUC77-25L100-GBL 1000pcs
Content
1000 pc(s)
Wireless charging
No
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
RFID transponder
- Type
IUC77-25L100-GBL 1000pcs
- Content
1000 pc(s)
- Wireless charging
No
Documents & Downloads
Datasheet
Datasheet 2628665 Pepperl+Fuchs 256090 RFID transponder IUC77-25L100-GBL 1000pcs 1000 pc(s)
User & Safety Instructions
User & Safety Instructions 2628665 Pepperl+Fuchs 256090 RFID transponder IUC77-25L100-GBL 1000pcs 1000 pc(s)
Description
Data carrier, working frequency: 865 ... 928 MHz, design: Label
This text is machine translated.
This text is machine translated.
Features
- General dataOperating frequency: 865 ... 928 MHzPolarization: LinearMemoryChip type: Monza 4QT (Impinj)Memory Bank 00 (Reserved): 64 bitsMemory Bank 01 (EPC/UII): 128 bitsMemory Bank 10 (TID): 96 bitsMemory Bank 11 (User memory): 512 bitsRead cycles: UnlimitedWrite cycles > 100000Data retention time: 10 yearsComplianceRadio systems Directive 2014/53/EU: EN 302208RoHS Directive 2011/65/EU (RoHS): IEC/EN 63000ComplianceProtection class EN 60529RFID: ISO/IEC 18000-63Ambient conditionsAmbient temperature: -40 ... 85 °C (-40 ... 185 °F) | Storage temperature: -40 ... 85 °C (-40 ... 185 °F)Mechanical data:Casing length 100 mmCase width 25 mmHousing height 0.2 mmProtection class IP67Materials Case: PaperMounting: Can be glued In air: YesWeight: 1 g.Design: LabelNote: Packaging unit 1000 pieces on roll
