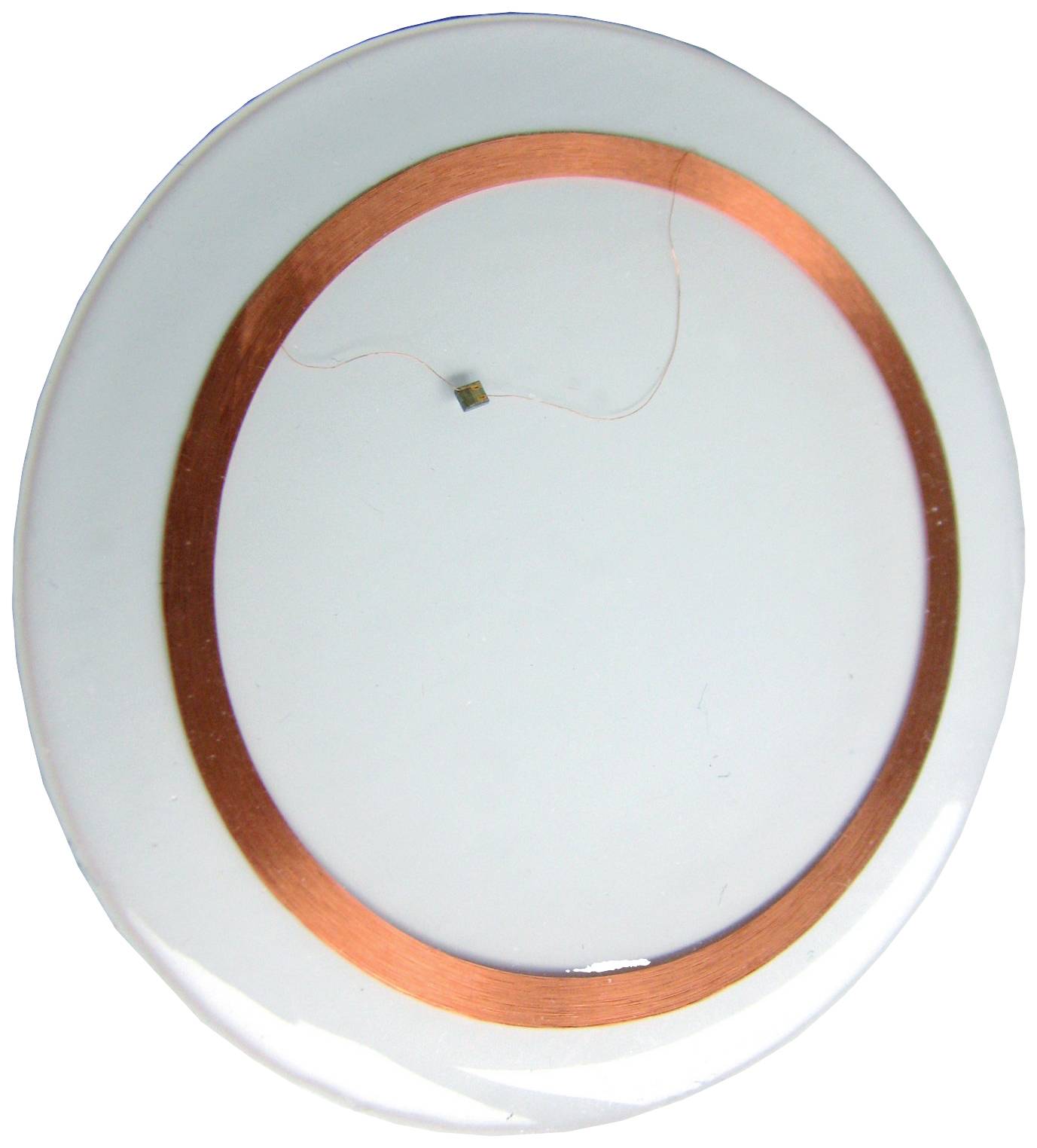

Name: Pepperl+Fuchs 261642 RFID transponder IPC11-50CD 10pcs 10 pc(s)
Brand: Pepperl+Fuchs
SKU: 2629168

Image similar

Product type

RFID transponder

Type

IPC11-50CD 10pcs

Content

10 pc(s)

Wireless charging

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Technical specifications

Documents & Downloads

Datasheet 2629168 Pepperl+Fuchs 261642 RFID transponder IPC11-50CD 10pcs 10 pc(s)

User & Safety Instructions 2629168 Pepperl+Fuchs 261642 RFID transponder IPC11-50CD 10pcs 10 pc(s)

Data carrier, working frequency: 125 kHz, design: Label

This text is machine translated.

General dataOperating frequency 125 kHzTransfer rate 2 kBit/sMemoryChip type: Q5 (Atmel)EEPROM 40 bitRead cycles: UnlimitedComplianceRadio systems Directive 2014/53/EU: EN 300330RoHS Directive 2011/65/EU (RoHS): IEC/EN 63000ComplianceProtection class EN 60529RFID: ISO/IEC 18000-2Ambient conditionsAmbient temperature: -25 ... 70 °C (-13 ... 158 °F)Storage temperature: -40 ... 85 °C (-40 ... 185 °F)Mechanical data:Housing height 2 mmHousing diameter 50 mmProtection class IP67Materials Casing: ROYALPLAST, transparent, softInstallation In air: YesDesign: LabelNote: Supplied in packs of 10
