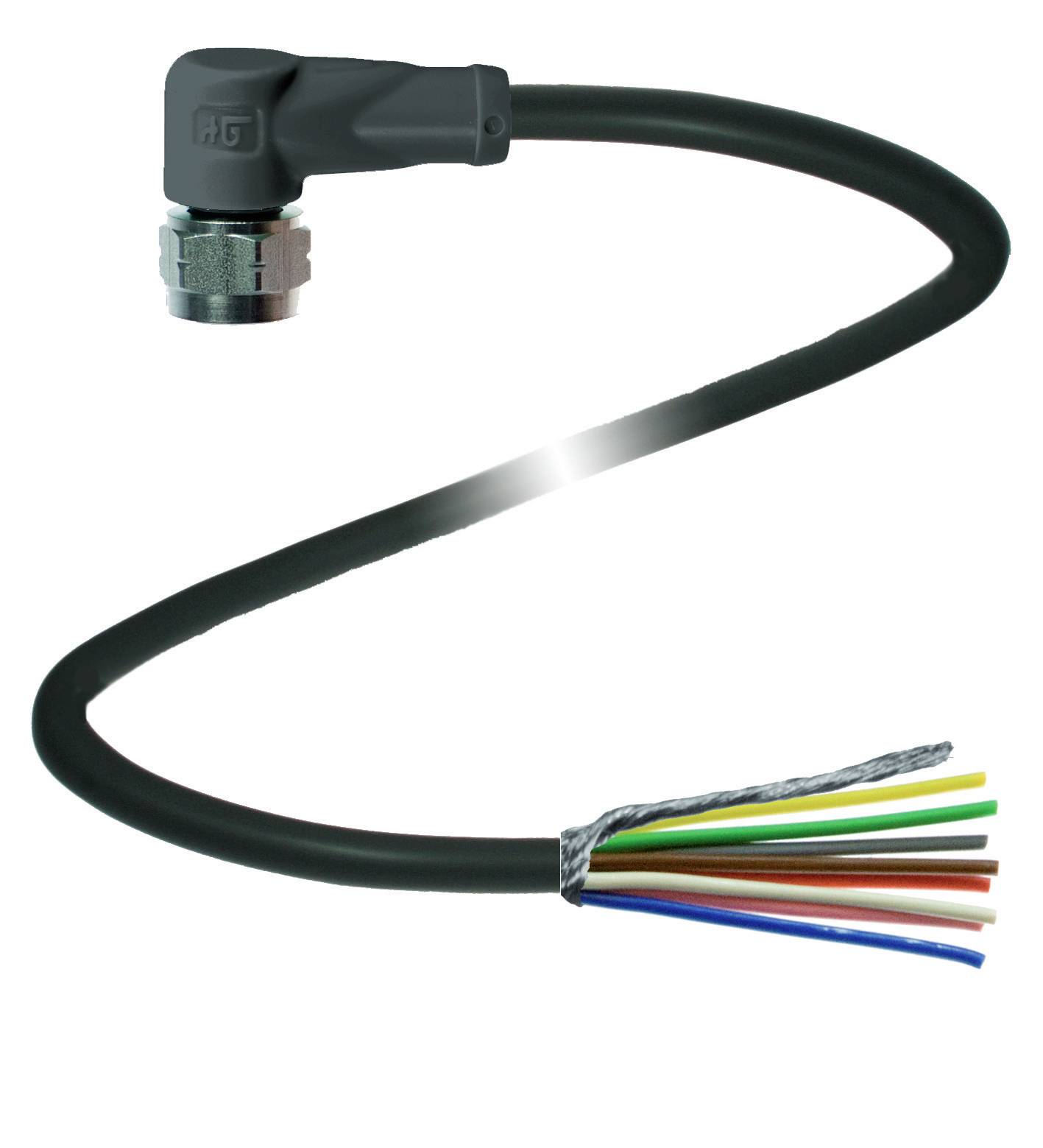

Pepperl+Fuchs 295573 Sensor/actuator connector (pre-fab) 3 m No. of pins (RJ): 8 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector (pre-fab)
Connection side A
M12 socket, right angle
Connection side B
Cable, open end
No. of pins
8
Cable length
3 m
Datasheet (PDF)
Technical specifications
- Type
V19-WV4A-3M-PUR-ABG0
- Product type
Sensor/actuator connector (pre-fab)
- Connection side A
M12 socket, right angle
- Connection side B
Cable, open end
- No. of pins
8
- Cable length
3 m
- Jacket material
PUR
- Nominal voltage
30 V DC/AC
- Nominal current
2 A
- Nominal current - rounded value
2 A
- Coding
A
IP67
IP68
IP69
- Seal type
Screw-on
- Manufacturer part #
295573
- Content
1 pc(s)
- Cable Ø
6 mm
- Wireless charging
No
- Cable diameter (details)
0.25 mm²
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2631403 Pepperl+Fuchs 295573 Sensor/actuator connector (pre-fab) 3 m No. of pins (RJ): 8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2631403 Pepperl+Fuchs 295573 Sensor/actuator connector (pre-fab) 3 m No. of pins (RJ): 8 1 pc(s)
Description
Cable socket, M12, stainless steel V4A, 8-pin, shielded, PUR cable, length 3 m, wires 8 x 0.25 mm2
This text is machine translated.
This text is machine translated.
Features
- General dataConnector 1 Connection: Socket Design: M12 Layout/design: Angular Locking: Screw connection Number of pins: 8 Coding: A-codedConnector 2 Connection: Free cable endElectrical DataOperating voltage: Max. 30 V AC/DCOperating current: Max. 2 AComplianceProtection class EN 60529Plug connector M12 x 1 : IEC 61076-2-101Halogen-free: IEC 60754-1Ambient conditionsAmbient temperature Connector -40 ... 90 °C (-40 ... 194 °F) Cable, fixed: -40 ... 80 °C (-40 ... 176 °F) Cable, movable: -20 ... 80 °C (-4 ... 176 °F)Pollution level 3Mechanical data:Connectors Tightening torque: 0.6 Nm Tool mounting: Hexagon nut SW = 14 mm Mating cycles: Min. 100 Shielding: Shield not connected to screw connectionPROTECTION CLASS IP67 / IP68 / IP69Cable: According to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter 6 mm Bending radius: > 10 x cable diameter, moving | > 8 x cable diameter, fixed laid Sheath adhesive seat: Max. 80 N / 300 mm Sheath color: Black (similar to RAL 9005) Core number 8 Wire cross-section 0.25 mm2 Wire color: Wire 1: White | Wire 2: brown | Wire 3: Green | Wire 4: Yellow | Wire 5: Gray | Wire 6: pink | Wire 7: Blue | Wire 8: Red Core construction: 14 x 0.15 mm Ø Shield: Copper braid, tin-plated, 85% coverage Length: 3 m Cable short code: Li 9Y C 11Y 8 x 0.25MaterialsHalogen-free: YesConnectors Screw connection: Stainless steel 1.4404 / AISI 316L (V4A) Grip body: TPU, black Contact surface: AU V-2 combustibilityCable Sheath: PURE on polyether basis Wire insulation: PP Chemical resistance: Good
