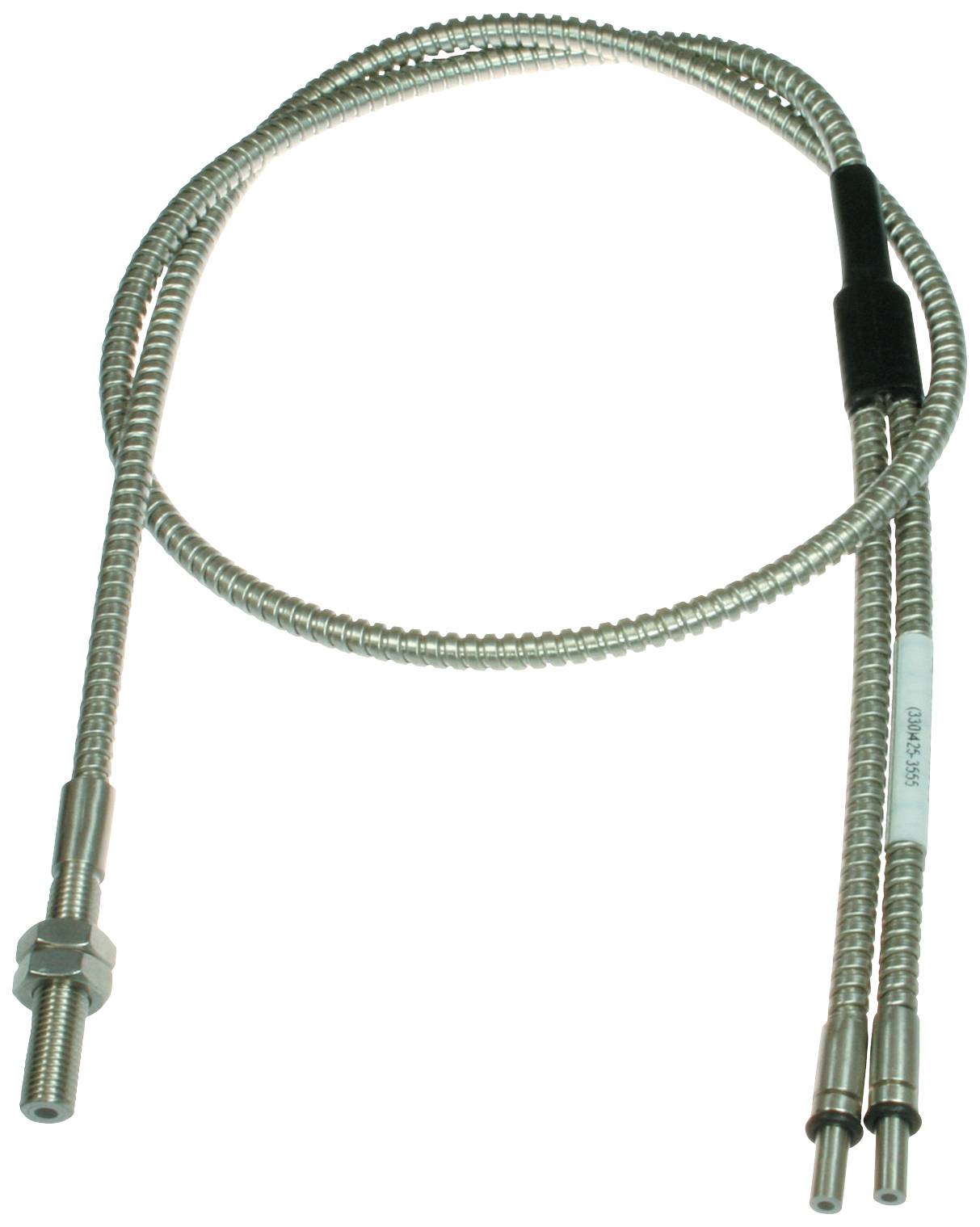

Pepperl+Fuchs 453600 FO cable FE-BTS6S-3 1 pc(s)
Product type
FO cable
Type
FE-BTS6S-3
Content
1 pc(s)
Wireless charging
No
UKCA
not relevant
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
FO cable
- Type
FE-BTS6S-3
- Content
1 pc(s)
- Wireless charging
No
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2629140 Pepperl+Fuchs 453600 FO cable FE-BTS6S-3 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2629140 Pepperl+Fuchs 453600 FO cable FE-BTS6S-3 1 pc(s)
Description
Probe width: MHP-FR: 45 mm MHP-F: 90 mm RL(K)61-LL: 160 mm MPG6HD: 180 mm, fiber optic length: 3 ft (.914 m), sheath: Stainless steel 1.4305 / AISI 303 (V2A), Kern: Glass, ambient temperature: -40 ... 232 °C (-40 ... 449.6 °F)
This text is machine translated.
This text is machine translated.
Features
- General data
- Scan width: MHP-FR: 45 mm | MHP-F: 90 mm | RL(K)61-LL: 160 mm | MPG6HD: 180 mm
- Fibre optic length 3 ft (.914 m)
- End piece: Optical axis: Straight | Type: Cylinder/threaded pipe | Thread size: 5/16-24 UNF
- Bending radius: Min. 25 mm
- Fibre bundle diameter 3.2 mm
- Ambient conditions
- Ambient temperature: -40 ... 232 °C (-40 ... 449.6 °F)
- Mechanical data:
- Materials
- Light emission: Glass
- Sheath:stainless steel 1.4305 / AISI 303 (V2A)
- Kern: Glass
- End piece:stainless steel 1.4305 / AISI 303 (V2A)
- Adapter: Stainless steel, 4.7 mm diameter
- General information
- Supplied with 2 hex nuts included
- Light conductor devices
- MP, MHP, 61 series
