Name: Pepperl+Fuchs Laser retroreflective sensor OBT15-R2F-E2-L 253572 Light-ON 1 pc(s)
Brand: Pepperl+Fuchs
SKU: 2629156

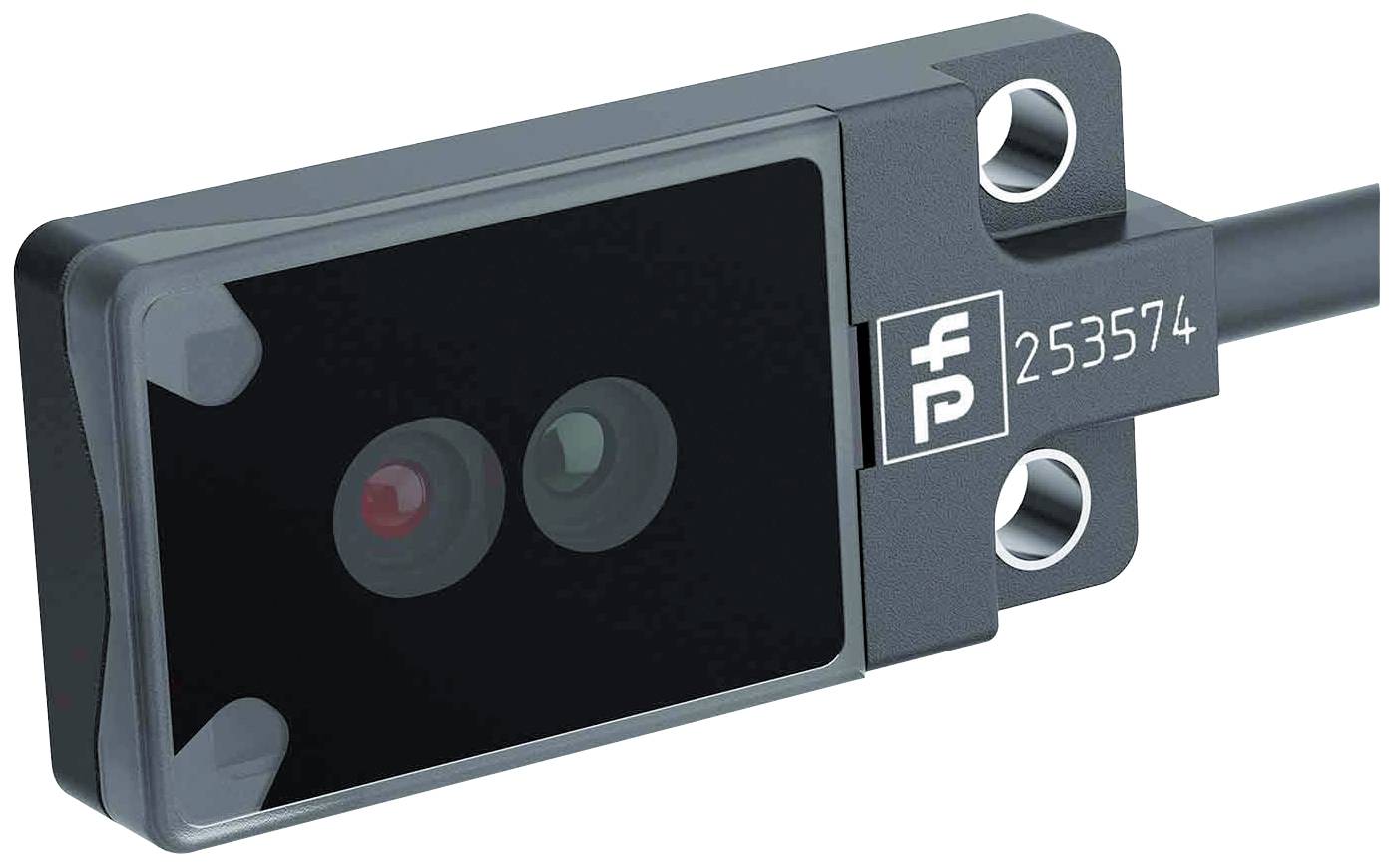

A rectangular sensor with two lenses and a printed code. It is used for detecting movements or objects.

Image similar

Product type

Laser retroreflective sensor

Functions

Light-ON

Max. operating voltage

24 V

Connector

Cable

Type

OBT15-R2F-E2-L

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Laser retroreflective sensor

Type: OBT15-R2F-E2-L

Functions: Light-ON

Min. operating voltage: 12 V

Max. operating voltage: 24 V

Operating voltage: 12 - 24 V

Response time: 250 µs

Contact type: 1 maker

Switching frequency: 2 kHz

Connector: Cable

Cable length: 2 m

Enclosure material: PC

Material properties: rust-proof

Transmitter type: Laser diode

Light emission: axial

Laser class: 1

Wavelength: 680 nm

: 15 mm

Features: LED indicator

Min. temperature: -10 °C

Max. temperature: 60 °C

Width: 12 mm

Height: 25.5 mm

Depth: 4.1 mm

Dim: (W x H x D) 12 x 25.5 x 4.1 mm

Content: 1 pc(s)

Smallest detectable object size (diameter): 0.05 mm

Wireless charging: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2629156 Pepperl+Fuchs Laser retroreflective sensor OBT15-R2F-E2-L 253572 Light-ON 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2629156 Pepperl+Fuchs Laser retroreflective sensor OBT15-R2F-E2-L 253572 Light-ON 1 pc(s)

Description

Sensing range: 2 ... 15 mm, light transmitter: LASER LIGHT, light type: Red, changeover light, 680 nm, Signal output: 1 PNP output, short circuit proof, reverse polarity protected, open collector, switching type: Normally open / light switching, connection: Fixed cable 2 m, operating voltage: 12 ... 24 V, ambient temperature: -10 ... 60 °C (14 ... 140 °F)

This text is machine translated.

Features

General dataSensing range: 2 ... 15 mmReference object: Standard white, 100 mm x 100 mmLight transmitter: LASER LIGHTLight type: Red, changeover light , 680 nmLaser characteristics NOTE: LASER LIGHT , DO NOT LOOK INTO THE BEAM Laser class: 1 Wavelength 680 nm Beam divergence > : 5 mrad Pulse duration: Approx. 3 µs Refresh rate approx. 16.6 kHz Max. Pulse Energy: 8 NJBlack/white difference (6%/90%): < 15% at 15 mmAngular deviation: Approx. 0.5 °Object size: type. From 0.05 mm @ 14 mmLight spot diameter: Approx. 0.9 mm at a distance of 15 mmOpening angle: Approx. 1 °Light emission: FrontalAmbient light limit: EN 60947-5-2 : 25000 LuxFunctional safety characteristicsMTTFd: 800 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Displays/controlsPower indicator: Green LED, static power on, short circuit: Green LED flashing (approx. 4 Hz)Function display: Yellow LED ON: Lights up when an object is detectedElectrical DataOperating voltage 12 ... 24 VLoad current: 10 mAProtection class IIIOutputSwitching type: Normally open contact / light switchingSignal output: 1 PNP output, short circuit proof, reverse polarity protected, open collectorSwitching voltage 30 V/DC maxSwitching current: Max. 50 mA, resistive loadVoltage drop: ≤ 1.5 V DCSwitching frequency: Approx. 2 kHzResponse time 250 µsComplianceProduct standard EN 60947-5-2Laser safety: EN 60825-1:2007Approvals and certificatesUL recognized: E87056, cULus recognized, Class 2 power sourceCCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.FDA approval: IEC 60825-1:2007 complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007Ambient conditionsAmbient temperature: -10 ... 60 °C (14 ... 140 °F)Storage temperature: -20 ... 70 °C (-4 ... 158 °F)Mechanical data:Case width 12 mmHousing height 25.5 mmHousing depth 4.1 mmProtection class IP67Anschluss: Festkabel 2 mMaterials Housing: PC (polycarbonate) and stainless steel Light emission: PMMA Cable: PURApproximate weight 20 gTightening torque for fixing screws: 0.25 NmCable length: 2 m

Hints

For more information on this 253572, please refer to its datasheet under 'downloadable documents'
