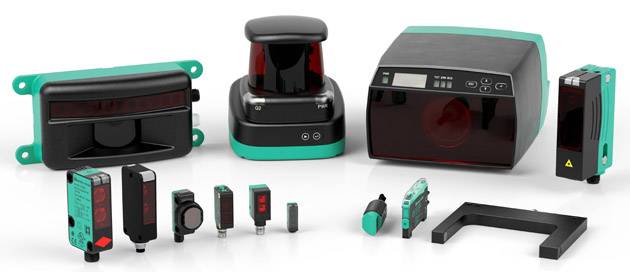

Image similar
Pepperl+Fuchs One-way light barrier LK28-Z-F1/31/116 134118 Switch (light-ON/dark-ON), Timer 1 pc(s)
Product type
One-way light barrier
Functions
Switch (light-ON/dark-ON)
Timer
Max. operating voltage
240 V DC/AC
Connector
Cable gland
M16
Type
LK28-Z-F1/31/116
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Operating range: 0 ... 65 m
- Operating duration (TM): 20 a
- Light spot diameter: Approx. 1.3 m at 65 m
- Opening angle: Transmitter: 1.2°; Receiver: 5°
- Switching voltage: Max. 250 V AC/DC
- Switching current: Max. 2 A
- Protection class: II.
- Product type
One-way light barrier
- Type
LK28-Z-F1/31/116
- Functions
Switch (light-ON/dark-ON)
Timer
- Min. operating voltage
12 V DC/AC
- Max. operating voltage
240 V DC/AC
- Operating voltage
12 - 240 V DC/AC
- Response time
20 ms
- Outputs
Relay contact
- Switching frequency
25 Hz
- Connector
Cable gland
M16
- Enclosure material
ABS plastic
- Transmitter type
LED red
90 m
IP67
- Min. temperature
-40 °C
- Max. temperature
+60 °C
- Width
25.8 mm
- Height
88 mm
- Depth
65.5 mm
- Dim
(W x H x D) 25.8 x 88 x 65.5 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2229954 Pepperl+Fuchs One-way light barrier LK28-Z-F1/31/116 134118 Switch (light-ON/dark-ON), Timer 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2229954 Pepperl+Fuchs One-way light barrier LK28-Z-F1/31/116 134118 Switch (light-ON/dark-ON), Timer 1 pc(s)
Description
Hints
For more information on this 134118, please refer to its datasheet under 'downloadable documents'
