Pepperl+Fuchs Pushbutton OBD800-R103-2EP-IO 267075-100256 1 pc(s)
Product type
Pushbutton
Max. operating voltage
30 V DC
Connector
Cable
Type
OBD800-R103-2EP-IO
Operating voltage
30 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Light Spot Diameter: approx. 55 mm at a distance of 800 mm, switching voltage: max. 30 V/DC, switching current 100 mA
- Product type
Pushbutton
- Type
OBD800-R103-2EP-IO
- Operating voltage
30 V DC
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Response time
0.5 ms
- Switching frequency
1000 Hz
- Connector
Cable
- Cable length
2.00 m
- Enclosure material
PC
- Transmitter type
LED red
IP67
IP69
IP69K
- Min. temperature
-40 °C
- Max. temperature
+60 °C
- Width
15 mm
- Height
36.5 mm
- Depth
26.7 mm
- Dim
(W x H x D) 15 x 36.5 x 26.7 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2130369 Pepperl+Fuchs Pushbutton OBD800-R103-2EP-IO 267075-100256 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2130369 Pepperl+Fuchs Pushbutton OBD800-R103-2EP-IO 267075-100256 1 pc(s)
Conformity certificate
Conformity certificate 2130369 Pepperl+Fuchs Pushbutton OBD800-R103-2EP-IO 267075-100256 1 pc(s)
Description

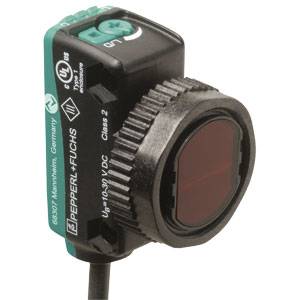

Reflective light sensor, energetic
This text is machine translated.
This text is machine translated.
Hints
For more information on this 267075-100256, please refer to its datasheet under 'downloadable documents'
