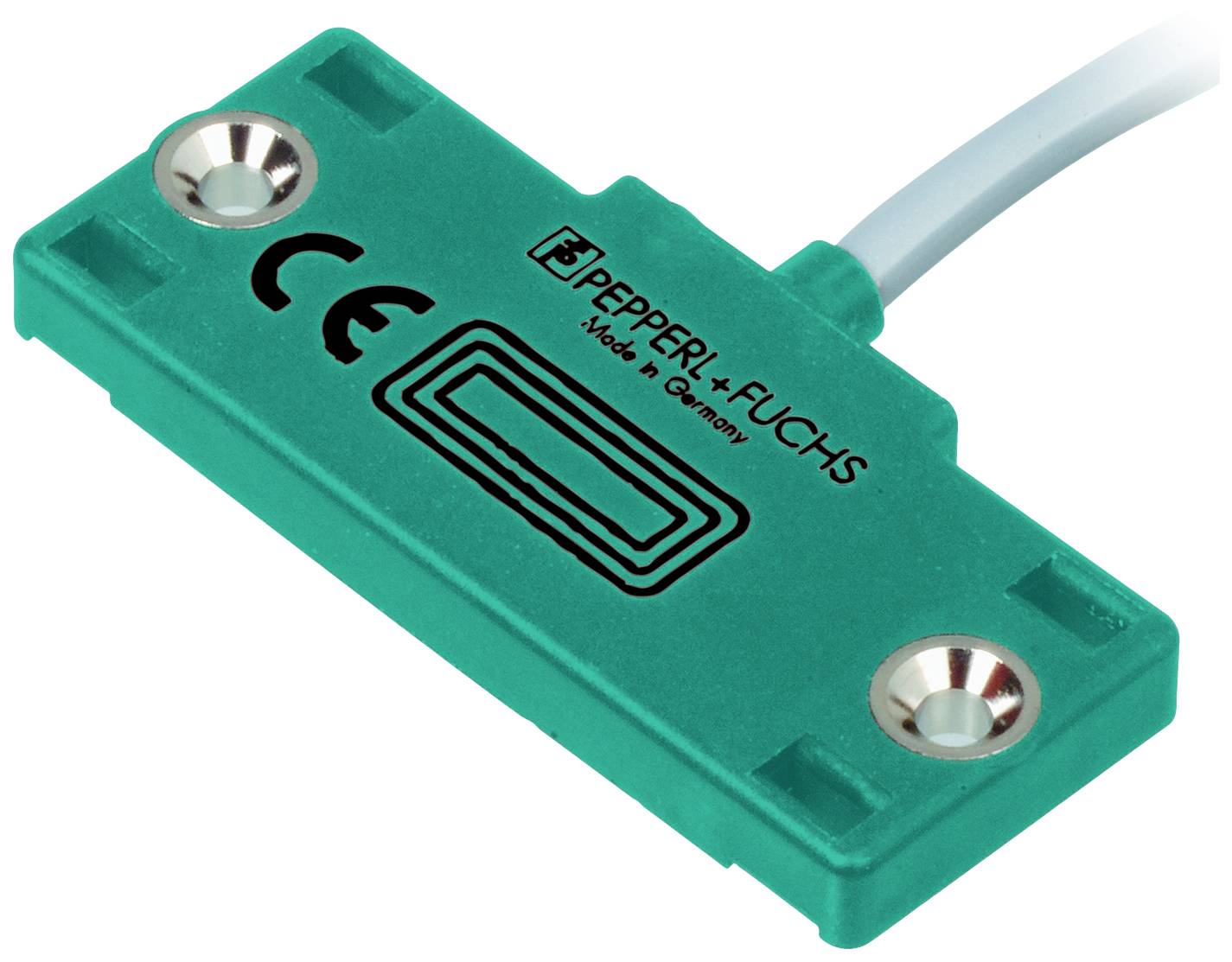

Pepperl+Fuchs Sensor Capacitive CBN2-F46-E2 051970 non-shielded PNP (Ø) 3.5 mm
Product type
Sensor
Max. operating voltage
30 V DC
Contact type
1 maker
Switching distance (max.)
2 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
CBN2-F46-E2
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
1 maker
- Switching distance (max.)
2 mm
- Outputs
PNP
- Enclosure material
PBT
- Model
Capacitive
- Installation type
non-shielded
- Connector
Cable
- Cable length
2 m
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- (Ø)
3.5 mm
- Dim
(Ø) 3.5 mm
- Content
1 pc(s)
- Wireless charging
No
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2628341 Pepperl+Fuchs Sensor Capacitive CBN2-F46-E2 051970 non-shielded PNP (Ø) 3.5 mm
User & Safety Instructions
User & Safety Instructions 2628341 Pepperl+Fuchs Sensor Capacitive CBN2-F46-E2 051970 non-shielded PNP (Ø) 3.5 mm
Description
Switching distance: 2 mm, installation: Non-flush, switching function: Closer (NO), output type: PNP, operating voltage: 10 ... 30 V DC
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: Closer (NO)Output type: PNPSwitching distance: 2 mmInstallation: Non-flushOutput polarity: DCSafe switching distance: 0 ... 1.4 mmOutput type: 3-wireCharacteristicsInstallation conditions B: 0 mm C: 5 mm F:20 mm / 50 mmOperating voltage 10 ... 30 V DCSwitching frequency: 0 ... 10 HzHysteresis: 1 ... 10 type. 5%Reverse polarity protection: Reverse polarity protectedShort-circuit protection: IsochronousVoltage drop: ≤ 2 VVoltage drop at IL. Voltage drop IL = 10mA, switching element on: 0.8 ... 2.2 V type. 1.4 VOperating current: 0 ... 100 mAMinimum operating current 0 mAResidual current: 0 ... 0.5 mA type. 0.01 mA Residual current TU =40 °C Switching element off: ≤ 100 µANo-load current ≤ 15 mAStandby delay: ≤ 50 msSwitching status indicator: LED, yellowFunctional safety characteristicsMTTFd: 1200 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Compliance with standards and directivesCompliance STANDARDS EN 60947-5-2:2007 | EN 60947-5-2/A1:2012 | IEC 60947-5-2:2007 | IEC 60947-5-2 AMD 1:2012Approvals and certificatesUL approval: CULus Listed, General PurposeCSA approved: CCSAus Listed, General PurposeCCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.Ambient conditionsAmbient temperature: -25 ... 70 °C (-13 ... 158 °F)Storage temperature: -40 ... 85 °C (-40 ... 185 °F)Mechanical data:Connection type: PVC cable, 2 mWire cross-section 0.14 mm2Housing material: PBTFace: PBTProtection class IP67Cable Cable diameter 3.5 mm ± 0.2 mm Bending radius > : 10 x cable diameter
