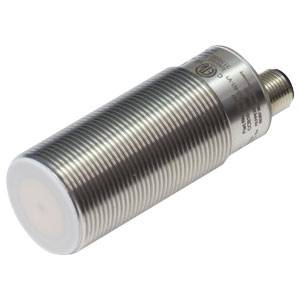

Pepperl+Fuchs Sensor Capacitive CCB10-30GS55-N1-V1 1xxG1xxD 245597 shielded NAMUR
Product type
Sensor
Max. operating voltage
15 V
Contact type
1 maker
Switching distance (max.)
10 mm
Outputs
NAMUR
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Switching function: Normally open (NO)
- Product type
Sensor
- Type
CCB10-30GS55-N1-V1 1xxG1xxD
- Min. operating voltage
5 V
- Max. operating voltage
15 V
- Operating voltage
5 - 15 V
- Contact type
1 maker
- Switching frequency
50 Hz
- Switching distance (max.)
10 mm
- Outputs
NAMUR
- Enclosure material
Stainless steel
- Model
Capacitive
- Installation type
shielded
- Connector
Plug
- Min. temperature
-20 °C
- Max. temperature
+70 °C
IP67
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2132151 Pepperl+Fuchs Sensor Capacitive CCB10-30GS55-N1-V1 1xxG1xxD 245597 shielded NAMUR
User & Safety Instructions
User & Safety Instructions 2132151 Pepperl+Fuchs Sensor Capacitive CCB10-30GS55-N1-V1 1xxG1xxD 245597 shielded NAMUR
Conformity certificate
Conformity certificate 2132151 Pepperl+Fuchs Sensor Capacitive CCB10-30GS55-N1-V1 1xxG1xxD 245597 shielded NAMUR
Description
Switching distance: 10 mm, installation: flush, switching function: Normally open (NO), Output Type: NAMUR, operating voltage: 5... 15V, nominal voltage: 8.2 V (Ri approx. 1 kΩ)
