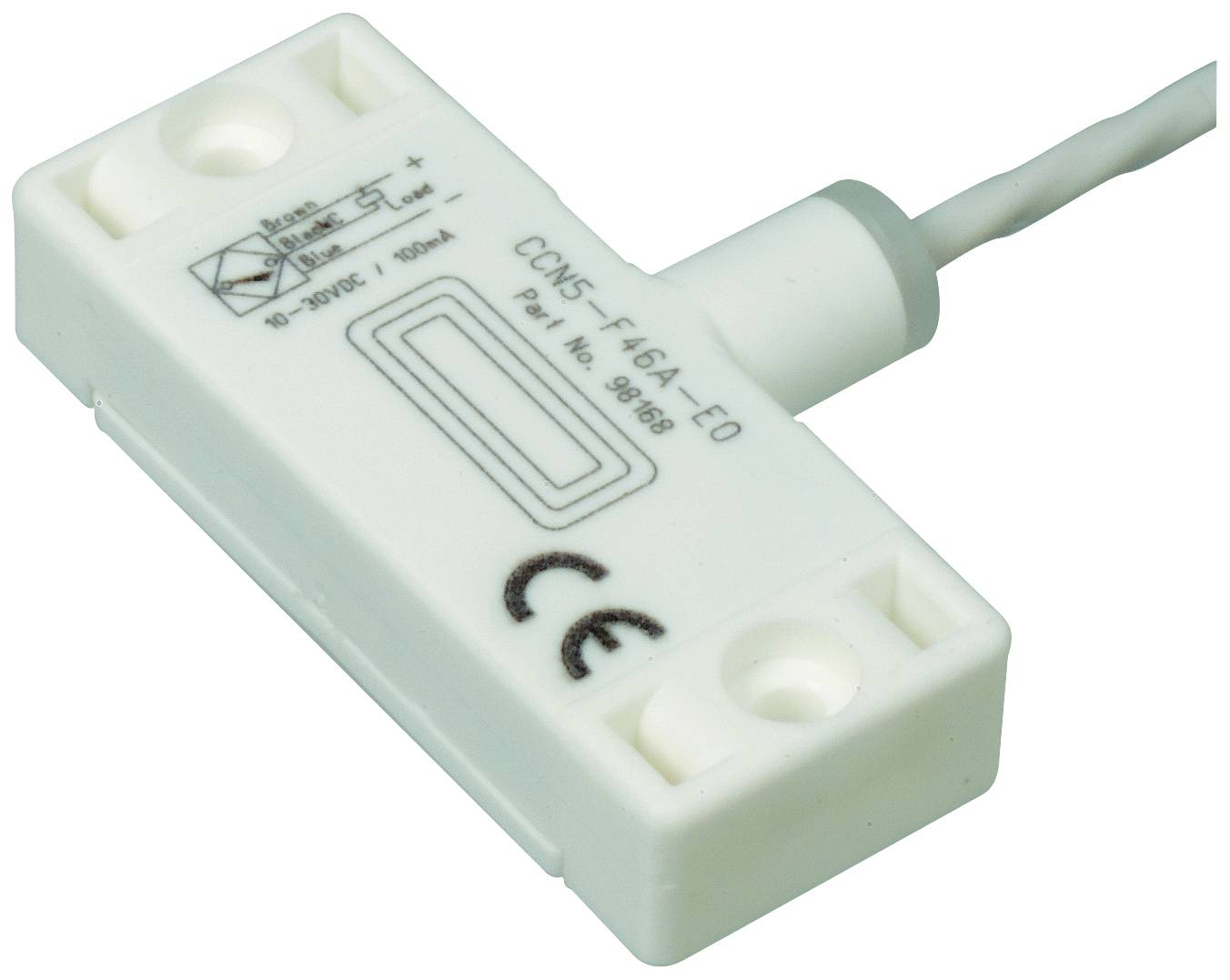

Pepperl+Fuchs Sensor Capacitive CCN5-F46A-E1 103535 non-shielded NPN
Product type
Sensor
Max. operating voltage
30 V DC
Contact type
1 breaker
Switching distance (max.)
5 mm
Outputs
NPN
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
CCN5-F46A-E1
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
1 breaker
- Switching distance (max.)
5 mm
- Outputs
NPN
- Enclosure material
PVDF
- Model
Capacitive
- Installation type
non-shielded
- Connector
Cable
- Cable length
2 m
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP68
- Content
1 pc(s)
- Wireless charging
No
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2628191 Pepperl+Fuchs Sensor Capacitive CCN5-F46A-E1 103535 non-shielded NPN
User & Safety Instructions
User & Safety Instructions 2628191 Pepperl+Fuchs Sensor Capacitive CCN5-F46A-E1 103535 non-shielded NPN
Description
Switching distance: 5 mm, installation: Non-flush, switching function: NC contact (NC), output type: NPN, operating voltage: 10 ... 30 V DC
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: NC contact (NC)Output type: NPNSwitching distance: 5 mmInstallation: Non-flushOutput polarity: DCSafe switching distance: 0 ... 3.5 mmOutput type: 3-wireCharacteristicsInstallation conditions B: 0 mm C: 10 mm F:20 mm / 50 mmOperating voltage 10 ... 30 V DCSwitching frequency: 0 ... 10 HzHysteresis: 1 ... 10 type. 5%Reverse polarity protection: Reverse polarity protectedShort-circuit protection: IsochronousVoltage drop: ≤ 2 VVoltage drop at IL. Voltage drop IL = 10mA, switching element on: 0.8 ... 2.2 V type. 1.4 VOperating current: 0 ... 100 mAMinimum operating current 0 mAResidual current: 0 ... 0.5 mA type. 0.01 mA Residual current TU =40 °C Switching element off: ≤ 100 µANo-load current ≤ 15 mAStandby delay: ≤ 50 msSwitching status indicator: LED, yellowCompliance with standards and directivesCompliance Standards EN 60947-5-2:2007 | IEC 60947-5-2:2007Approvals and certificatesUL approval: CULus Listed, General PurposeCSA approved: CCSAus Listed, General PurposeCCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.Ambient conditionsAmbient temperature: -25 ... 70 °C (-13 ... 158 °F)Storage temperature: -40 ... 85 °C (-40 ... 185 °F)Mechanical data:Connection type: Cable FEP, 2 mWire cross-section 0.14 mm2Housing material PVDFFace: PVDFProtection class: IP68Note: Cable tensile strength 20 N.
