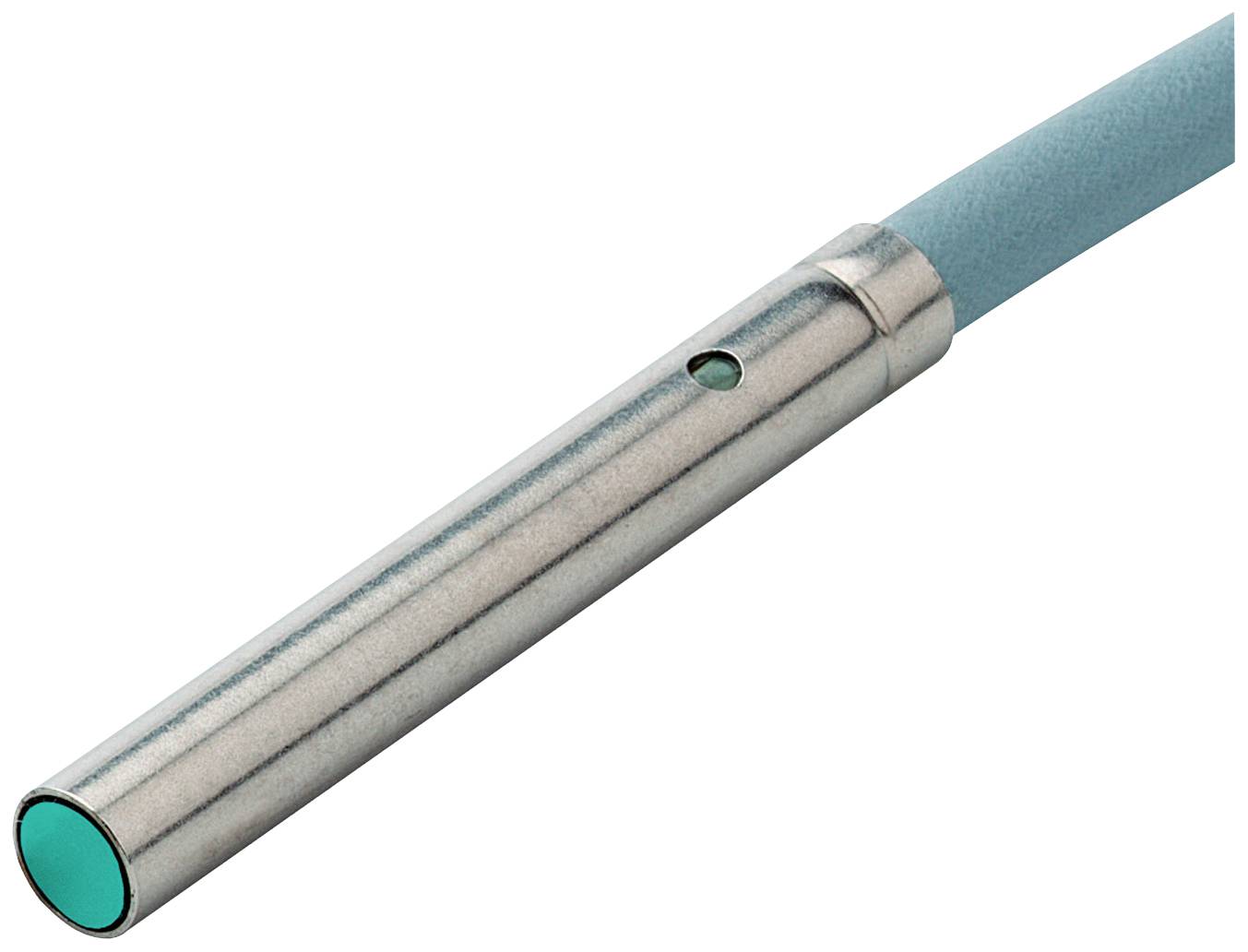

Image similar
Pepperl+Fuchs Sensor Inductive NBB0,8-4M25-E1 134079 shielded NPN
Product type
Sensor
Max. operating voltage
30 V
Contact type
1 breaker
Switching distance (max.)
0.8 mm
Outputs
NPN
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
NBB0,8-4M25-E1
- Min. operating voltage
10 V
- Max. operating voltage
30 V
- Operating voltage
10 - 30 V
- Contact type
1 breaker
- Switching distance (max.)
0.8 mm
- Outputs
NPN
- Enclosure material
Stainless steel V2A
- Model
Inductive
- Installation type
shielded
- Connector
Cable
- Cable length
2 m
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
3000 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2627911 Pepperl+Fuchs Sensor Inductive NBB0,8-4M25-E1 134079 shielded NPN
User & Safety Instructions
User & Safety Instructions 2627911 Pepperl+Fuchs Sensor Inductive NBB0,8-4M25-E1 134079 shielded NPN
Description
Switching distance: 0.8 mm, installation: Flush, switching function: NC contact (NC), output type: NPN, operating voltage: 10 ... 30 V, operating current: 0 ... 100 mA
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: NC contact (NC)Output type: NPNSwitching distance: 0.8 mmInstallation: FlushOutput polarity: DCSafe switching distance: 0 ... 0.648 mmReduction factor rAl: 0.45Reduction factor rCu: 0.4Reduction factor rV2A (1.4301) : 0.85Output type: 3-wireCharacteristicsOperating voltage 10 ... 30 VSwitching frequency: 0 ... 3000 HzHysteresis: 5 ... 20%Reverse polarity protection: Reverse polarity protectedShort-circuit protection: IsochronousVoltage drop ≤ 3 VOperating current: 0 ... 100 mAResidual current: 0 ... 0.1 mA type. 0.1 µA at 25 °C.No-load current ≤ 12 mASwitching status indicator: LED, yellowCompliance with standards and directivesCompliance Standards EN 60947-5-2:2007 | IEC 60947-5-2:2007Approvals and certificatesUL approval: CULus Listed, General PurposeCCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.Ambient conditionsAmbient temperature: -25 ... 70 °C (-13 ... 158 °F)Mechanical data:Connection type: PVC cable, 2 mWire cross-section 0.14 mm2Housing material: Stainless steel 1.4305 / AISI 303 (V2A)Face: PBTProtection class IP67
