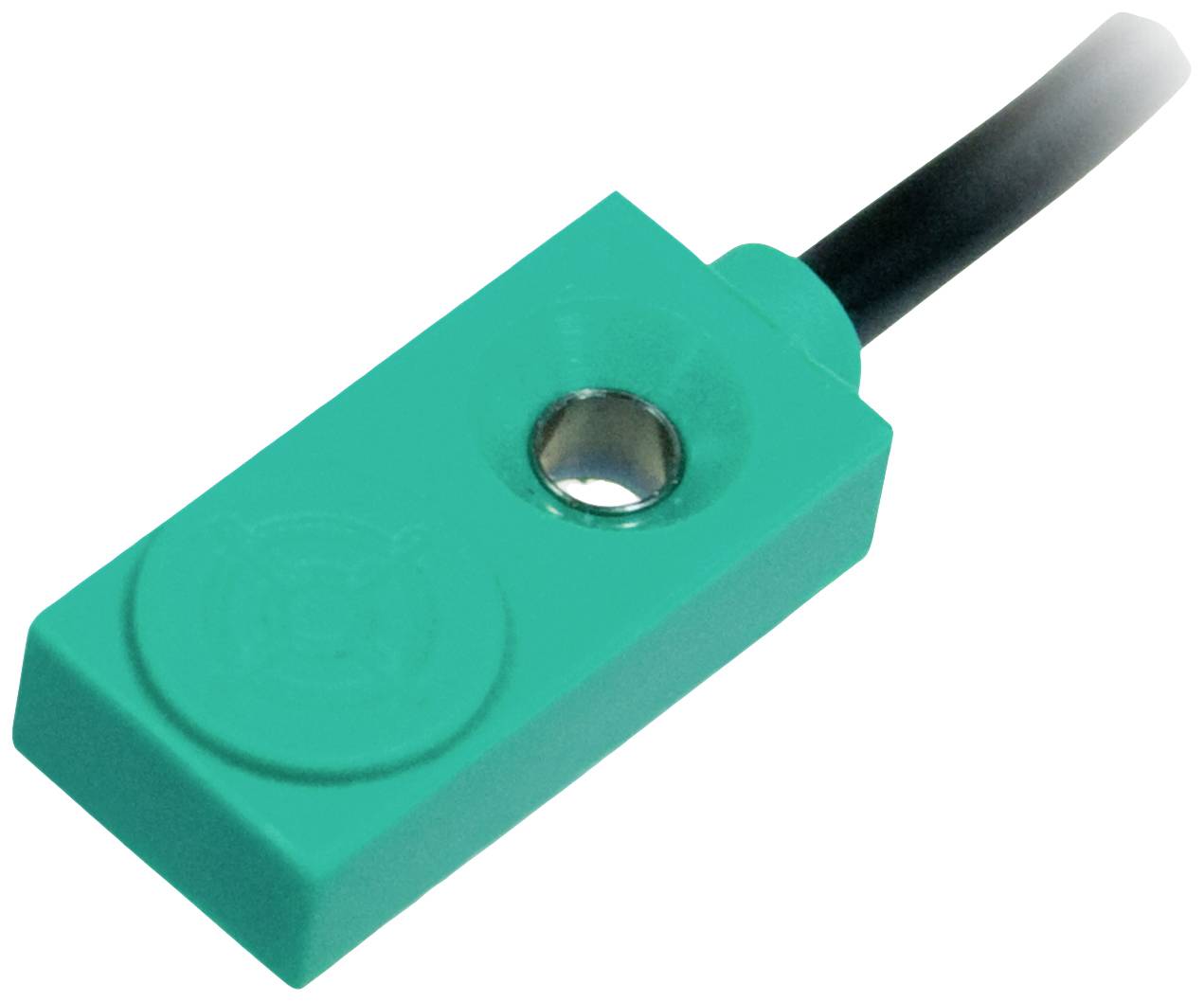

Image similar
Pepperl+Fuchs Sensor Inductive NBB1,5-F79-E1-5M 269260 shielded NPN
Product type
Sensor
Max. operating voltage
30 V DC
Contact type
1 breaker
Switching distance (max.)
1.5 mm
Outputs
NPN
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
NBB1,5-F79-E1-5M
- Min. operating voltage
5 V DC
- Max. operating voltage
30 V DC
- Operating voltage
5 - 30 V DC
- Contact type
1 breaker
- Switching distance (max.)
1.5 mm
- Outputs
NPN
- Enclosure material
PA
- Model
Inductive
- Installation type
shielded
- Connector
Cable
- Cable length
5 m
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
1200 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2628345 Pepperl+Fuchs Sensor Inductive NBB1,5-F79-E1-5M 269260 shielded NPN
User & Safety Instructions
User & Safety Instructions 2628345 Pepperl+Fuchs Sensor Inductive NBB1,5-F79-E1-5M 269260 shielded NPN
Description
Switching distance: 1.5 mm, installation: Flush, switching function: NC contact (NC), output type: NPN, operating voltage: 5 ... 30 V DC, operating current: 0 ... 100 mA
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: NC contact (NC)Output type: NPNSwitching distance: 1.5 mmInstallation: FlushOutput polarity: DCSafe switching distance: 0 ... 1.215 mm.Reduction factor forAl: 0.3Reduction factor rCu: 0.2Reduction factor rV2A (1.4301) : 0.7Output type: 3-wireCharacteristicsOperating voltage 5 ... 30 V DCSwitching frequency: 0 ... 1200 HzHysteresis: type. 5%Short-circuit protection: IsochronousVoltage drop: ≤ 1.5 VOperating current: 0 ... 100 mAResidual current ≤ 10 µANo-load current ≤ 15 mAStandby delay: ≤ 20 msCompliance with standards and directivesCompliance Standards EN 60947-5-2:2007 | IEC 60947-5-2:2007Approvals and certificatesCCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.Ambient conditionsAmbient temperature: -25 ... 70 °C (-13 ... 158 °F)Mechanical data:Connection type: Cable PVC, 5 mWire cross-section 3 x 0.09 mm2Housing material: PAFront face: PAProtection class IP67
