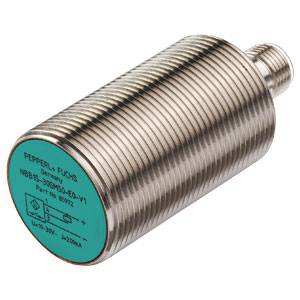

Pepperl+Fuchs Sensor Inductive NBB15-30GM50-E2-V1-M 240186 shielded PNP
Product type
Sensor
Max. operating voltage
60 V
Contact type
1 maker
Switching distance (max.)
15 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Use Duration: 20 A
- Idling current: max. 25 mA at 24 V supply voltage.
- Operating current: 0-200mA
- Hysteresis: type. 5%
- Product type
Sensor
- Type
NBB15-30GM50-E2-V1-M
- Min. operating voltage
5 V
- Max. operating voltage
60 V
- Operating voltage
5 - 60 V
- Contact type
1 maker
- Switching distance (max.)
15 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Installation type
shielded
- Connector
Plug
- Min. temperature
-40 °C
- Max. temperature
+85 °C
IP68
IP69K
- Content
1 pc(s)
- Switching frequency
600 Hz
Documents & Downloads
Datasheet
Datasheet 2128916 Pepperl+Fuchs Sensor Inductive NBB15-30GM50-E2-V1-M 240186 shielded PNP
User & Safety Instructions
User & Safety Instructions 2128916 Pepperl+Fuchs Sensor Inductive NBB15-30GM50-E2-V1-M 240186 shielded PNP
Conformity certificate
Conformity certificate 2128916 Pepperl+Fuchs Sensor Inductive NBB15-30GM50-E2-V1-M 240186 shielded PNP
Description
Switching distance: 15 mm, mounting: flush, switching function: Normally open (NO), Output Type: PNP, operating voltage: 5... 60V, operating current: 0 ... 200 mA
