Image similar

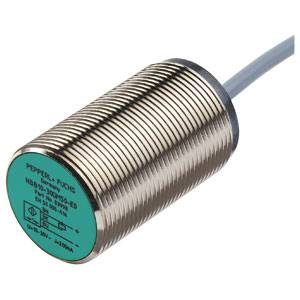

Pepperl+Fuchs Sensor Inductive NBB15-30GM50-US 198088 M50 shielded Two-wire
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
250 V
Contact type
1 maker
Switching distance (max.)
15 mm
Outputs
Two-wire
Datasheet (PDF)
Technical specifications
- Use Duration: 20 A
- Idling current: max. 20 mA at 24 V supply voltage.
- Operating current:4-500 mA AC/DC
- Hysteresis: 3... 15 type. 5%
- Product type
Sensor
- Type
NBB15-30GM50-US
- Min. operating voltage
20 V
- Max. operating voltage
250 V
- Operating voltage
20 - 250 V
- Contact type
1 maker
- Switching distance (max.)
15 mm
- Outputs
Two-wire
- Enclosure material
Brass
- Model
Inductive
- Installation type
shielded
- Size
M50
- Connector
Cable
- Min. temperature
-25 °C
- Max. temperature
+70 °C
IP67
- Content
1 pc(s)
- Switching frequency
30 Hz
Documents & Downloads
Datasheet
Datasheet 2128926 Pepperl+Fuchs Sensor Inductive NBB15-30GM50-US 198088 M50 shielded Two-wire
User & Safety Instructions
User & Safety Instructions 2128926 Pepperl+Fuchs Sensor Inductive NBB15-30GM50-US 198088 M50 shielded Two-wire
Conformity certificate
Conformity certificate 2128926 Pepperl+Fuchs Sensor Inductive NBB15-30GM50-US 198088 M50 shielded Two-wire
Description
Switching distance: 15 mm, mounting: flush, switching function: Normally open (NO), Output Type: Two-wire, operating voltage: 20... 250 V AC/20... 300 V DC, operating current: 4... 500mA AC/DC
