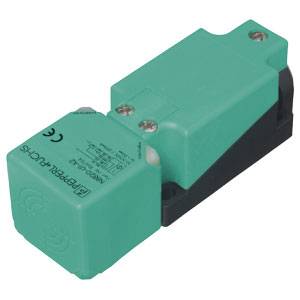

Pepperl+Fuchs Sensor Inductive NBB15-U1K-N0 123G1xxD 70133098 shielded NAMUR
Product type
Sensor
Contact type
1 breaker
Switching distance (max.)
15 mm
Outputs
NAMUR
Model
Inductive
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Use Duration: 20 A
- Idling current: max. 20 mA at 24 V supply voltage.
- Hysteresis: 1... 15 type. 5%
- Product type
Sensor
- Type
NBB15-U1K-N0 123G1xxD
- Contact type
1 breaker
- Switching distance (max.)
15 mm
- Outputs
NAMUR
- Enclosure material
PA
- Model
Inductive
- Installation type
shielded
- Connector
Screw terminals
- Min. temperature
-25 °C
- Max. temperature
+100 °C
IP66
IP68
IP69K
- Content
1 pc(s)
- Switching frequency
400 Hz
Documents & Downloads
Datasheet
Datasheet 2131608 Pepperl+Fuchs Sensor Inductive NBB15-U1K-N0 123G1xxD 70133098 shielded NAMUR
User & Safety Instructions
User & Safety Instructions 2131608 Pepperl+Fuchs Sensor Inductive NBB15-U1K-N0 123G1xxD 70133098 shielded NAMUR
Conformity certificate
Conformity certificate 2131608 Pepperl+Fuchs Sensor Inductive NBB15-U1K-N0 123G1xxD 70133098 shielded NAMUR
Description
Switching distance: 15 mm, mounting: flush, switching function: Normally-closed (NC), Output Type: NAMUR, Rated: 8 V
