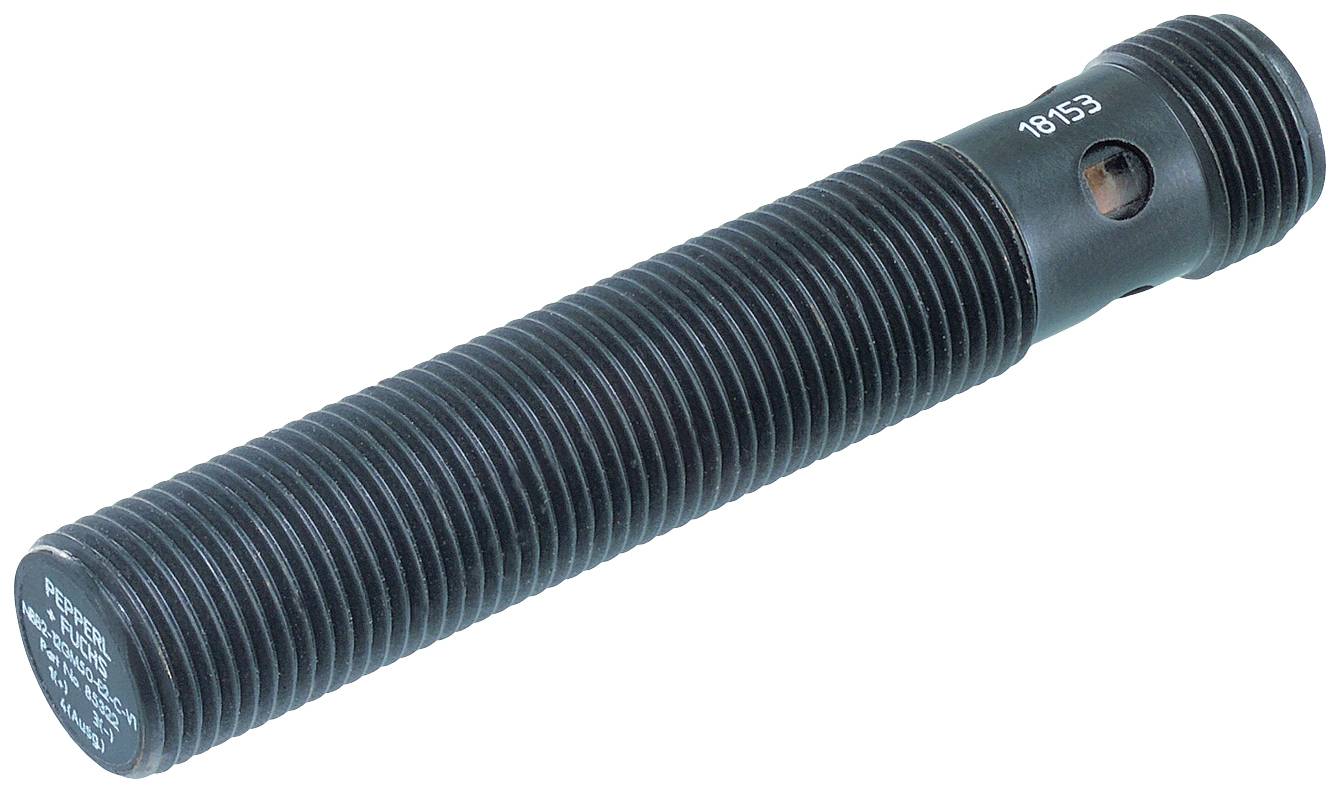

Pepperl+Fuchs Sensor Inductive NBB2-12GM50-E0-C-V1 906037 M12 shielded NPN
Product type
Sensor
Max. operating voltage
30 V DC
Contact type
1 maker
Switching distance (max.)
2 mm
Outputs
NPN
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
NBB2-12GM50-E0-C-V1
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
1 maker
- Switching distance (max.)
2 mm
- Outputs
NPN
- Enclosure material
Brass
- Model
Inductive
- Material properties
teflon-coated
- Installation type
shielded
- Size
M12
- Connector
M12 plug (4-pin)
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
1500 Hz
- UKCA
yes
