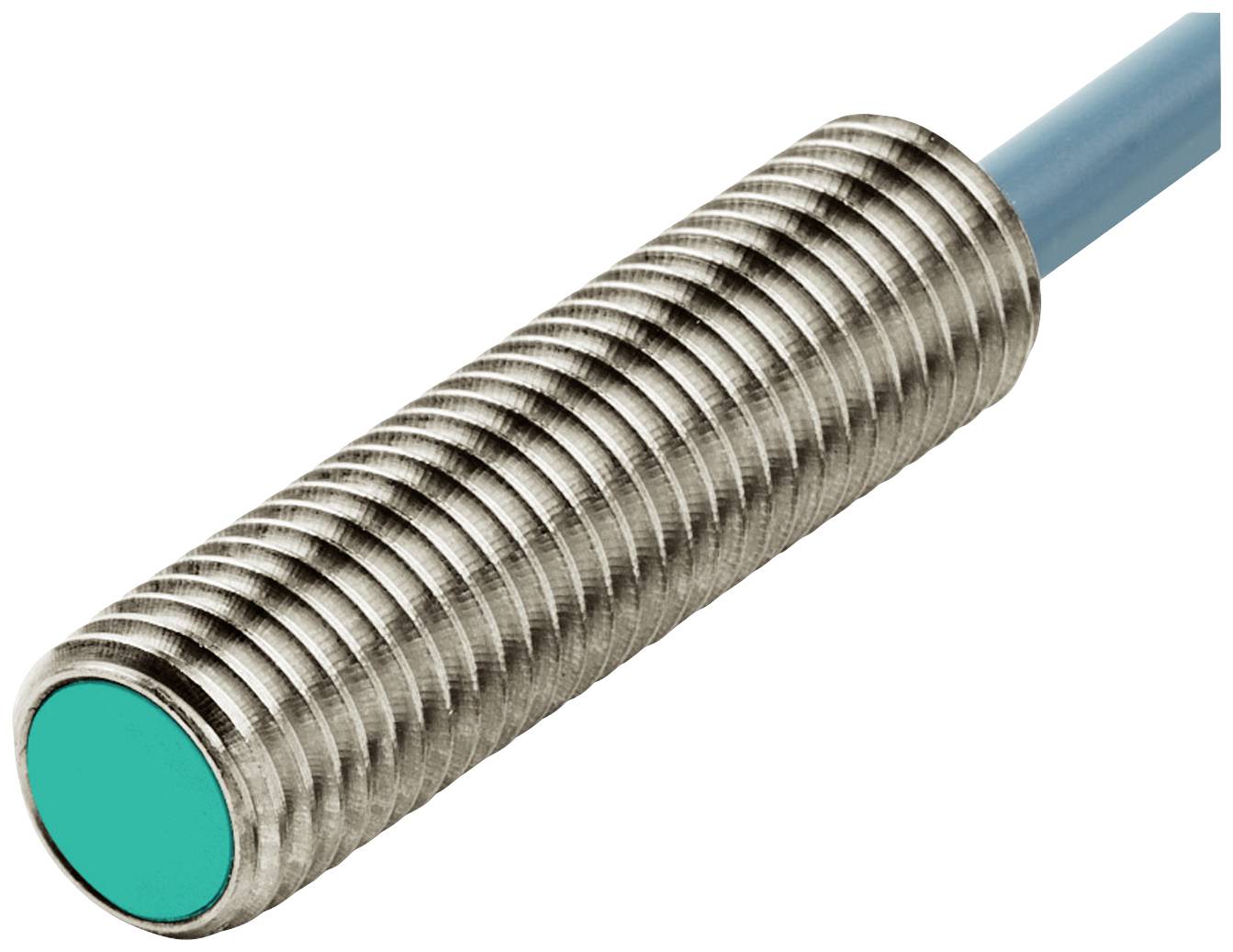

Pepperl+Fuchs Sensor Inductive NBB2-8GM30-E3-10M 304615-0048 M30 shielded PNP (Ø) 3.5 mm
Product type
Sensor
Max. operating voltage
30 V
Contact type
1 breaker
Switching distance (max.)
2 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
NBB2-8GM30-E3-10M
- Min. operating voltage
5 V
- Max. operating voltage
30 V
- Operating voltage
5 - 30 V
- Contact type
1 breaker
- Switching distance (max.)
2 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Material properties
nickel plated
- Installation type
shielded
- Size
M30
- Connector
Cable
- Cable length
10 m
- Min. temperature
-40 °C
- Max. temperature
85 °C
IP67
- (Ø)
3.5 mm
- Dim
(Ø) 3.5 mm
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
6000 Hz
- UKCA
yes
