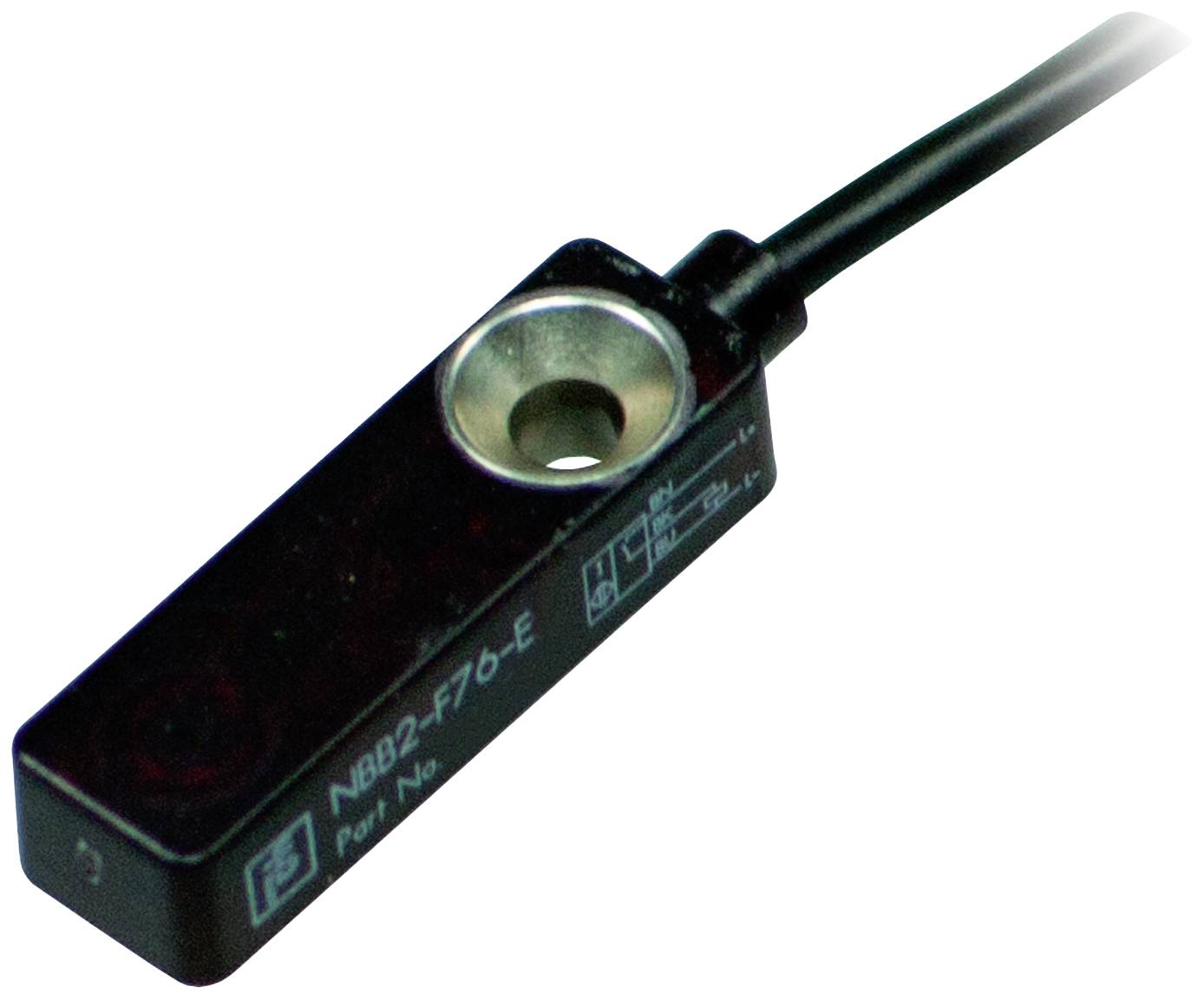

Image similar
Pepperl+Fuchs Sensor Inductive NBB2-F76-E0-0,5M 214955 shielded NPN
Product type
Sensor
Max. operating voltage
30 V DC
Contact type
1 maker
Switching distance (max.)
2 mm
Outputs
NPN
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
NBB2-F76-E0-0,5M
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
1 maker
- Switching distance (max.)
2 mm
- Outputs
NPN
- Enclosure material
PC
- Model
Inductive
- Installation type
shielded
- Connector
Cable
- Cable length
0.5 m
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
1500 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2628219 Pepperl+Fuchs Sensor Inductive NBB2-F76-E0-0,5M 214955 shielded NPN
User & Safety Instructions
User & Safety Instructions 2628219 Pepperl+Fuchs Sensor Inductive NBB2-F76-E0-0,5M 214955 shielded NPN
Description
Switching distance: 2 mm, installation: Flush, switching function: Normally open contact (NO), output type: NPN, operating voltage: 10 ... 30 V DC, operating current: 0 ... 100 mA
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: Closer (NO)Output type: NPNSwitching distance: 2 mmInstallation: FlushOutput polarity: DCSafe switching distance: 0 ... 1.62 mmReduction factor rAl: 0.25Reduction factor rCu: 0.2Reduction factor rV2A (1.4301) : 0.63Reduction factor rMS: 0.31Output type: 3-wireCharacteristicsOperating voltage 10 ... 30 V DCSwitching frequency: 0 ... 1500 HzHysteresis: type. 5%Reverse polarity protection: Reverse polarity protectedShort-circuit protection: IsochronousVoltage drop ≤ 3 VOperating current: 0 ... 100 mAResidual current: 0 ... 0.5 mA type. 10 µA at 25 °C.No-load current ≤ 15 mASwitching status display: LED yellowFunctional safety characteristicsMTTFd: 828 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Compliance with standards and directivesCompliance STANDARDS EN 60947-5-2:2007 | EN 60947-5-2/A1:2012 | IEC 60947-5-2:2007 | IEC 60947-5-2 AMD 1:2012Approvals and certificatesCCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.Ambient conditionsAmbient temperature: -25 ... 70 °C (-13 ... 158 °F)Mechanical data:Connection type: Cable PVC, 0.5 mWire cross-section 3 x 0.09 mm2Housing material: PCProtection class IP67Mass: 5 g.Tightening torque for fixing screws: 0.7 Nm
