Image similar

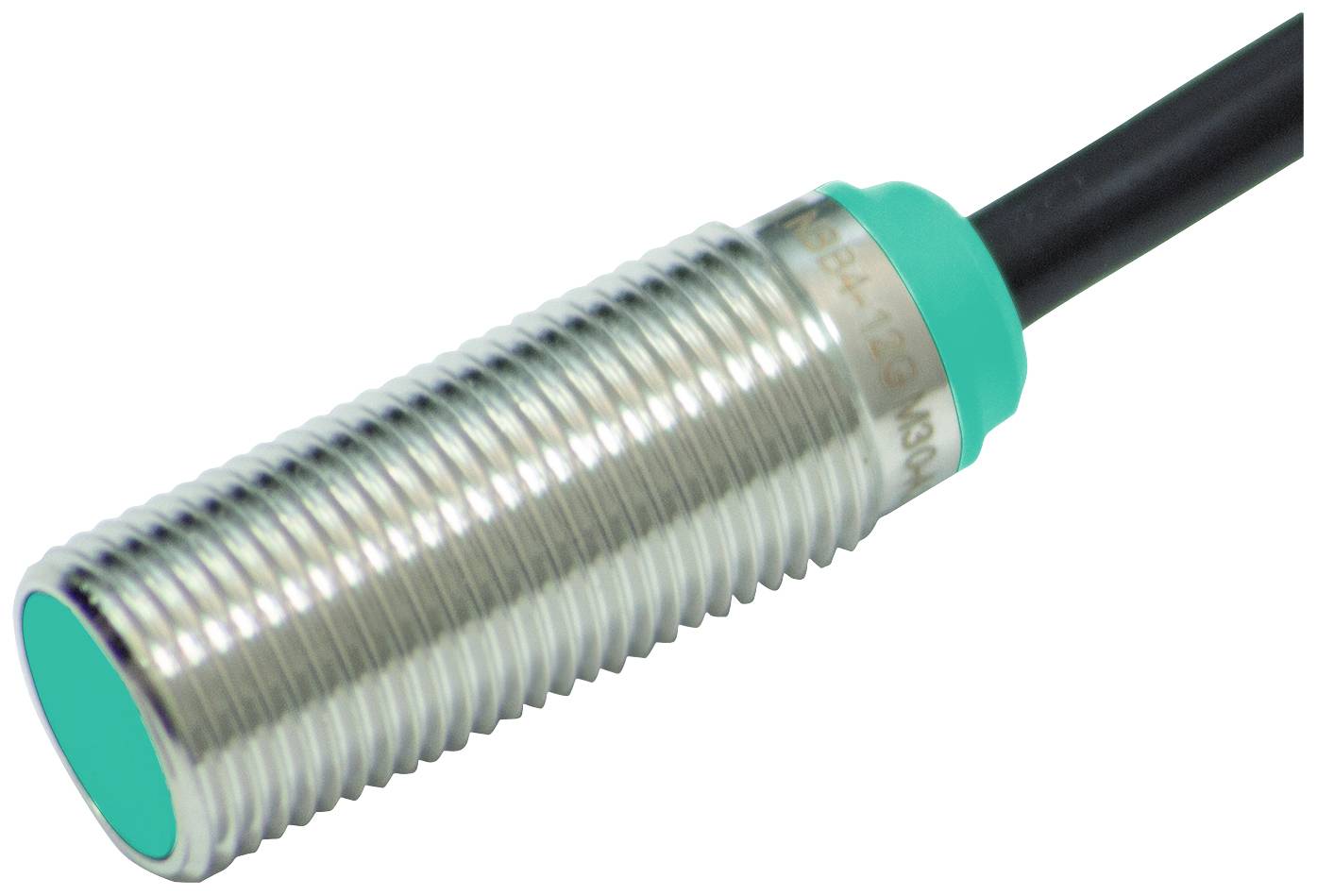

Pepperl+Fuchs Sensor Inductive NBB4-12GM30-E2-5M 326163-0022 M30 shielded PNP
Product type
Sensor
Max. operating voltage
36 V
Contact type
1 maker
Switching distance (max.)
4 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
NBB4-12GM30-E2-5M
- Min. operating voltage
5 V
- Max. operating voltage
36 V
- Operating voltage
5 - 36 V
- Contact type
1 maker
- Switching distance (max.)
4 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Installation type
shielded
- Size
M30
- Connector
Cable
- Cable length
5 m
- Features
LED indicator
- Min. temperature
-40 °C
- Max. temperature
85 °C
IP68
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
2550 Hz
- UKCA
yes
