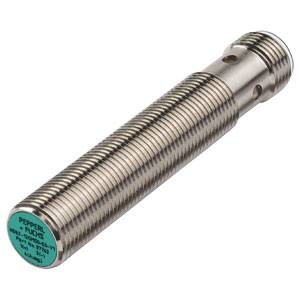

Image similar
Pepperl+Fuchs Sensor Inductive NBB4-12GM50-A2-V1-M1 293454-0025 shielded PNP
Product type
Sensor
Max. operating voltage
30 V
Contact type
Antivalent
Switching distance (max.)
4 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Use Duration: 20 A
- Operating current: 0-200mA
- Hysteresis: type. 5%
- Product type
Sensor
- Type
NBB4-12GM50-A2-V1-M1
- Min. operating voltage
7 V
- Max. operating voltage
30 V
- Operating voltage
7 - 30 V
- Contact type
Antivalent
- Switching distance (max.)
4 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Installation type
shielded
- Connector
Plug
- Min. temperature
-40 °C
- Max. temperature
+85 °C
IP68
IP69K
- Content
1 pc(s)
- Switching frequency
2200 Hz
Documents & Downloads
Datasheet
Datasheet 2129125 Pepperl+Fuchs Sensor Inductive NBB4-12GM50-A2-V1-M1 293454-0025 shielded PNP
User & Safety Instructions
User & Safety Instructions 2129125 Pepperl+Fuchs Sensor Inductive NBB4-12GM50-A2-V1-M1 293454-0025 shielded PNP
Conformity certificate
Conformity certificate 2129125 Pepperl+Fuchs Sensor Inductive NBB4-12GM50-A2-V1-M1 293454-0025 shielded PNP
Description
Switching distance: 4 mm, installation: flush, switching function: antivalent, Output Type: PNP, operating voltage: 7... 30 V, operating current: 0 ... 200 mA
