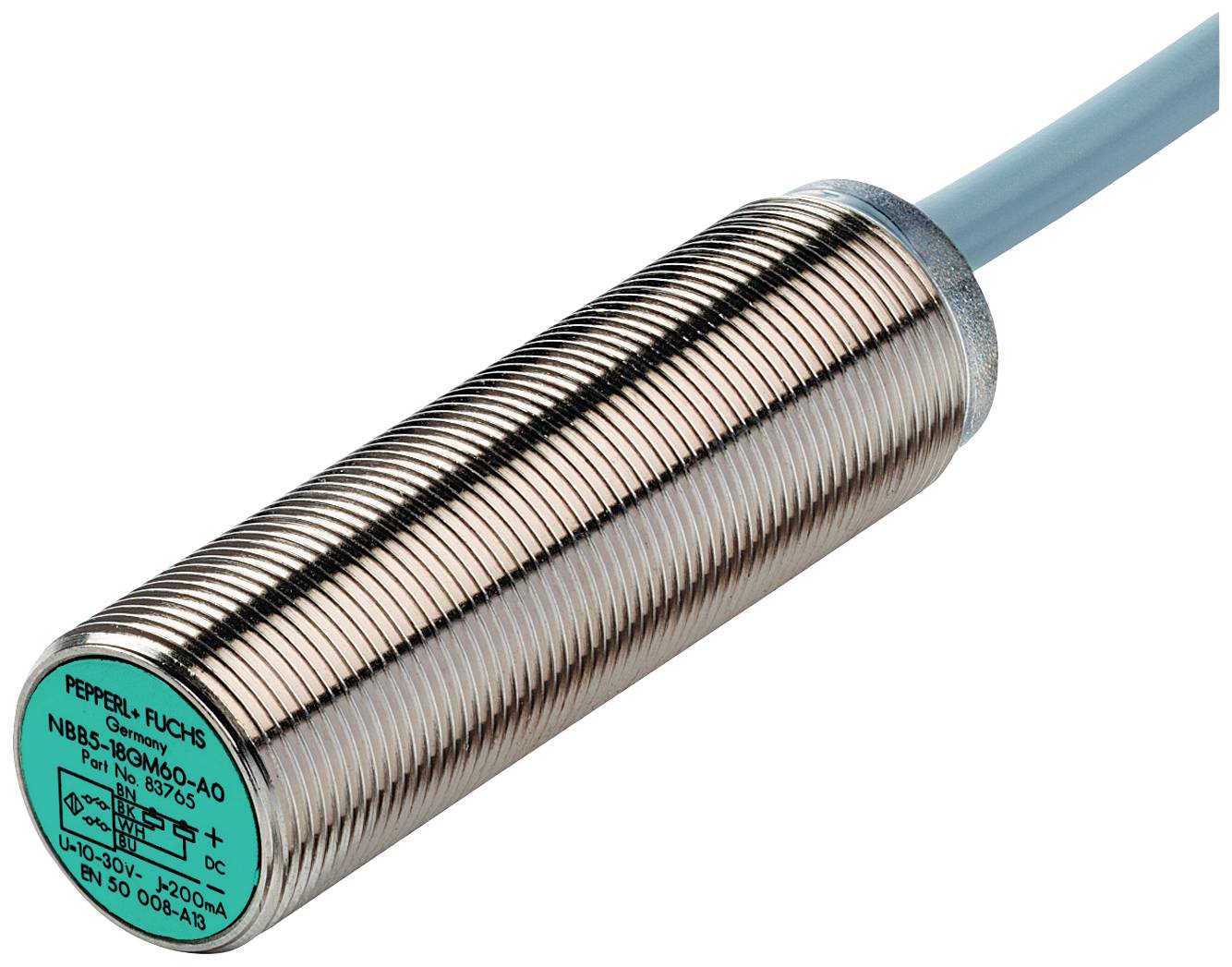

Image similar
Pepperl+Fuchs Sensor Inductive NBB5-18GM60-WS-5M 083921 M18 shielded Two-wire
Product type
Sensor
Max. operating voltage
253 V
Contact type
1 maker
Switching distance (max.)
5 mm
Outputs
Two-wire
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
NBB5-18GM60-WS-5M
- Min. operating voltage
20 V
- Max. operating voltage
253 V
- Operating voltage
20 - 253 V
- Contact type
1 maker
- Switching distance (max.)
5 mm
- Outputs
Two-wire
- Enclosure material
Brass
- Model
Inductive
- Material properties
nickel plated
- Installation type
shielded
- Size
M18
- Connector
Cable
- Cable length
5 m
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
20 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2627904 Pepperl+Fuchs Sensor Inductive NBB5-18GM60-WS-5M 083921 M18 shielded Two-wire
User & Safety Instructions
User & Safety Instructions 2627904 Pepperl+Fuchs Sensor Inductive NBB5-18GM60-WS-5M 083921 M18 shielded Two-wire
Description
Switching distance: 5 mm, installation: Flush, switching function: Closer (NO), output type: Two-wire, operating voltage: 20 ... 253 V, operating current: 5 ... 200 mA
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: Closer (NO)Output type: Two-wireSwitching distance: 5 mmInstallation: FlushOutput polarity: ACSafe switching distance: 0 ... 4.05 mmReal switching distance: 4.5 ... 5.5 mm type. 5 mmReduction factor rAl: 0.2Reduction factor rCu: 0.2Reduction factor rV2A (1.4301) : 0.6Output type: 2-wireCharacteristicsOperating voltage 20 ... 253 VSwitching frequency: 0 ... 20 HzHysteresis: type. 6%Reverse polarity protection: YesShort circuit protection: no.Voltage drop 5 < V (IL> 50 mA); < 8 V (IL< 50 mA)Short-time current (20ms, 0.1Hz): 0 ... 1600 mAOperating current: 5 ... 200 mAResidual current: 0 ... 1.7 mA typ.Standby delay: ≤ 30 msOperating voltage display: LED, greenSwitching status indicator: LED, yellowCompliance with standards and directivesCompliance STANDARDS EN 60947-5-2:2007 | EN 60947-5-2/A1:2012 | IEC 60947-5-2:2007 | IEC 60947-5-2 AMD 1:2012Approvals and certificatesUL approval: CULus Listed, General PurposeCSA approved: CCSAus Listed, General PurposeAmbient conditionsAmbient temperature: -25 ... 70 °C (-13 ... 158 °F)Storage temperature: -25 ... 85 °C (-13 ... 185 °F)Mechanical data:Connection type: Cable PVC, 5 mWire cross-section 0.34 mm2Housing material: Nickel-plated brassFace: PBTProtection class IP67Note: 1) at a temperature range below 0 °C permissible operating voltage Ub 80...253 V | Device protection fuse ≤ 0.8 A (quick-acting) in accordance with IEC 60127-2 Sheet 1 | Recommendation: After a short circuit, check the device for function.
