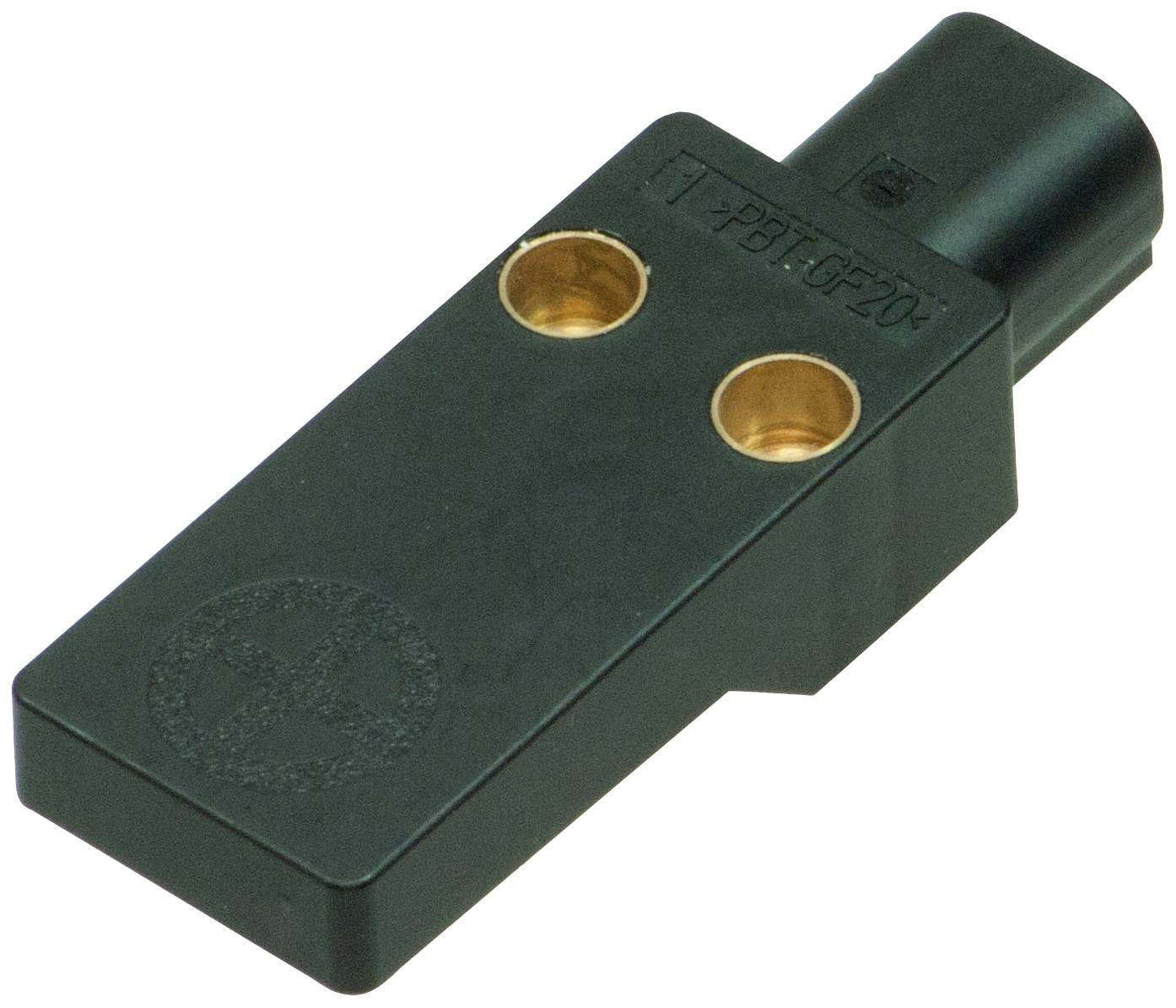

Pepperl+Fuchs Sensor Inductive NBB5-F33X-E2-AMP 266704 shielded PNP
Product type
Sensor
Max. operating voltage
60 V DC
Contact type
1 maker
Switching distance (max.)
5 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
NBB5-F33X-E2-AMP
- Min. operating voltage
10 V DC
- Max. operating voltage
60 V DC
- Operating voltage
10 - 60 V DC
- Contact type
1 maker
- Switching distance (max.)
5 mm
- Outputs
PNP
- Enclosure material
PBT
- Model
Inductive
- Installation type
shielded
- Connector
Plug
- Min. temperature
-35 °C
- Max. temperature
70 °C
IP67
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
500 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2628249 Pepperl+Fuchs Sensor Inductive NBB5-F33X-E2-AMP 266704 shielded PNP
User & Safety Instructions
User & Safety Instructions 2628249 Pepperl+Fuchs Sensor Inductive NBB5-F33X-E2-AMP 266704 shielded PNP
Description
Switching distance: 5 mm, installation: Flush, switching function: Normally open contact (NO), output type: PNP, operating voltage: 10 ... 60 V DC, operating current: 0 ... 200 mA
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: Closer (NO)Output type: PNPSwitching distance: 5 mmInstallation: FlushOutput polarity: DCSafe switching distance: 0 ... 4.05 mmReduction factor rAl: 0.25Reduction factor rCu: 0.2Reduction factor rV2A (1.4301) : 0.6Reduction factor rMS: 0.35Output type: 3-wireCharacteristicsOperating voltage 10 ... 60 V DCSwitching frequency: 0 ... 500 HzHysteresis: type. 5%Reverse polarity protection: Reverse polarity protectedShort-circuit protection: IsochronousVoltage drop: ≤ 2.5 VOperating current: 0 ... 200 mAResidual current: 0 ... 0.1 mANo-load current ≤ 10 mAStandby delay: ≤ 50 msSwitching status display: LED yellowFunctional safety characteristicsMTTFd: 1891 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Compliance with standards and directivesCompliance Standards EN 60947-5-2:2007 | IEC 60947-5-2:2007 | | Ambient conditionsAmbient temperature: -35 ... 70 °C (-31 ... 158 °F)Storage temperature: -40 ... 85 °C (-40 ... 185 °F)Mechanical data:Connection type: Device plug, AMP plug | Tyco socket housing 1-0967642-1 (A-coding) | Tyco crimp contacts 0-963726-1Housing material: PBT, blackProtection class IP67Note: Tightening torque: 5 Nm
