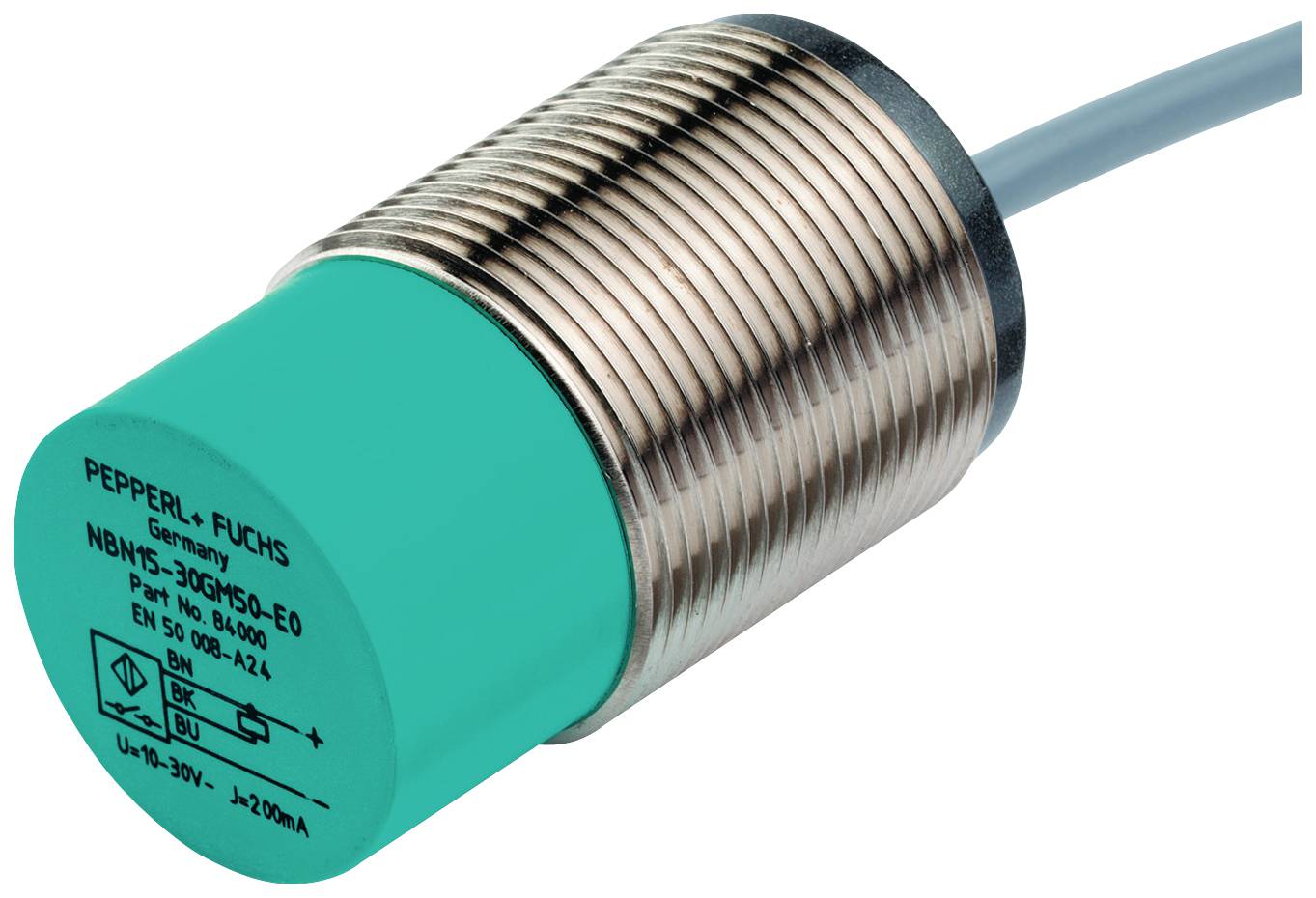

Image similar
Pepperl+Fuchs Sensor Inductive NBN25-30GM50-E0-M1 293454-0050 M50 non-shielded NPN
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
30 V
Contact type
1 maker
Switching distance (max.)
25 mm
Outputs
NPN
Datasheet (PDF)
Technical specifications
- Product type
Sensor
- Type
NBN25-30GM50-E0-M1
- Min. operating voltage
7 V
- Max. operating voltage
30 V
- Operating voltage
7 - 30 V
- Contact type
1 maker
- Switching distance (max.)
25 mm
- Outputs
NPN
- Enclosure material
Brass
- Model
Inductive
- Material properties
nickel plated
- Installation type
non-shielded
- Size
M50
- Connector
Cable
- Cable length
2 m
- Min. temperature
-40 °C
- Max. temperature
85 °C
IP68
IP69K
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
450 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2627927 Pepperl+Fuchs Sensor Inductive NBN25-30GM50-E0-M1 293454-0050 M50 non-shielded NPN
User & Safety Instructions
User & Safety Instructions 2627927 Pepperl+Fuchs Sensor Inductive NBN25-30GM50-E0-M1 293454-0050 M50 non-shielded NPN
Description
Switching distance: 25 mm, installation: Non-flush, switching function: Closer (NO), output type: NPN, operating voltage: 7 ... 30 V, operating current: 0 ... 200 mA
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: Closer (NO)Output type: NPNSwitching distance: 25 mmInstallation: Non-flushOutput polarity: DCSafe switching distance: 0 ... 20.25 mmActuator: Structural steel, e.g. 1.0037, S235JR (formerly St37-2) | 75 mm x 75 mm x 1 mmReduction factor rAl: 0.5Reduction factor rCu: 0.4Reduction factor rV2A (1.4301) : 0.7Reduction factor rMS: 0.5Output type: 3-wireCharacteristicsInstallation conditions A: 28 mm B: 40 mm C 75 mm F: 120 mmOperating voltage 7 ... 30 VSwitching frequency: 0 ... 450 HzHysteresis: type. 5%Reverse polarity protection: Reverse polarity protectedShort-circuit protection: IsochronousVoltage drop: ≤ 2 VOperating current: 0 ... 200 mAResidual current: 0 ... 0.5 mA type. 4 µA at 25 °C.No-load current ≤ 10 mAStandby delay: ≤ 100 msSwitching status indicator: LED, yellowFunctional safety characteristicsMTTFd: 1494 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Compliance with standards and directivesCompliance STANDARDS EN 60947-5-2:2007 | EN 60947-5-2/A1:2012 | IEC 60947-5-2:2007 | IEC 60947-5-2 AMD 1:2012 | EN 12895: 2015Approvals and certificatesUL recognized: CULus Listed, General Purpose, Class 2 power sourceCCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.E1 type approval: 10R-04Ambient conditionsAmbient temperature: -40 ... 85 °C (-40 ... 185 °F)Storage temperature: -40 ... 85 °C (-40 ... 185 °F)Mechanical data:Connection type: PUR cable, 2 mWire cross-section 0.34 mm2Housing material: Nickel-plated brassFace: PBTProtection class IP68/IP69KWeight 135 gGeneral informationScope of delivery: Supplied with 2 nuts with locking teeth
