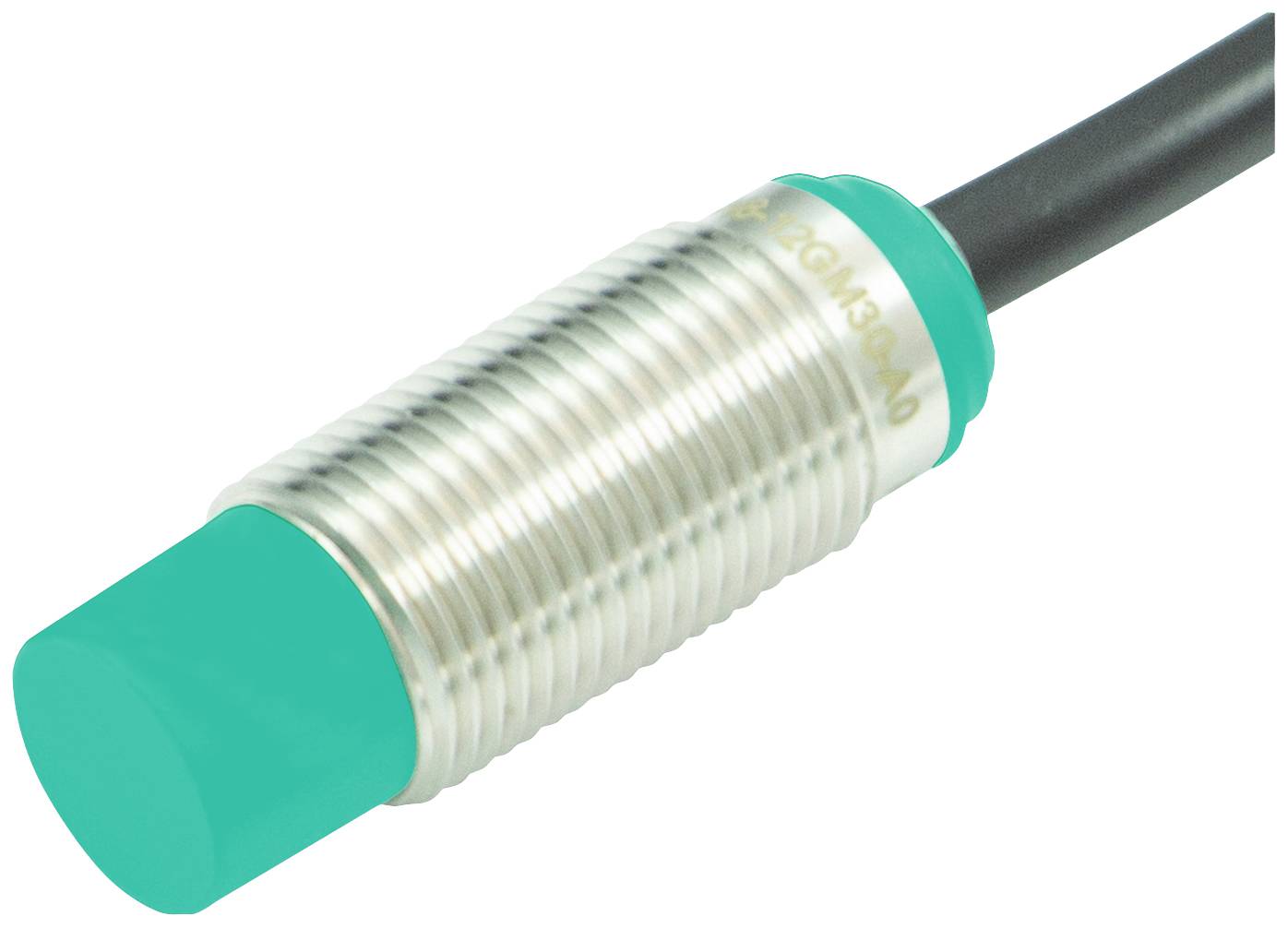

Pepperl+Fuchs Sensor Inductive NBN8-12GM30-E2 326161-0062 M30 non-shielded PNP
Product type
Sensor
Max. operating voltage
36 V
Contact type
1 maker
Switching distance (max.)
8 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
NBN8-12GM30-E2
- Min. operating voltage
5 V
- Max. operating voltage
36 V
- Operating voltage
5 - 36 V
- Contact type
1 maker
- Switching distance (max.)
8 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Installation type
non-shielded
- Size
M30
- Connector
Cable
- Cable length
2 m
- Features
LED indicator
- Min. temperature
-40 °C
- Max. temperature
85 °C
IP68
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
1650 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2628391 Pepperl+Fuchs Sensor Inductive NBN8-12GM30-E2 326161-0062 M30 non-shielded PNP
User & Safety Instructions
User & Safety Instructions 2628391 Pepperl+Fuchs Sensor Inductive NBN8-12GM30-E2 326161-0062 M30 non-shielded PNP
Description
Switching distance: 8 mm, installation: Non-flush, switching function: Closer (NO), output type: PNP, operating voltage: 5 ... 36 V, operating current: 0 ... 200 mA
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: Closer (NO)Output type: PNPSwitching distance: 8 mmInstallation: Non-flushOutput polarity: DCSafe switching distance: 0 ... 6.48 mmActuator: Structural steel, e.g. 1.0037, S235JR (formerly St37-2) | 24 mm x 24 mm x 1 mmReduction factor forAl: 0.4Reduction factor rCu: 0.35Reduction factor rV2A (1.4301) : 0.79Reduction factor rMS: 0.49Output type: 3-wireCharacteristicsOperating voltage 5 ... 36 VSwitching frequency: 0 ... 1650 HzHysteresis: type. 5%Reverse polarity protection: Reverse polarity protectedShort-circuit protection: IsochronousVoltage drop: ≤ 1 VOperating current: 0 ... 200 mAResidual current: Max. 20 µANo-load current ≤ 10 mAStandby delay: ≤ 10 msSwitching status indicator: LED, yellowFunctional safety characteristicsMTTFd: 1707 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%ComplianceLAB COMPLIANCE: VDMA 24364-C1/T100°C-W.Compliance with standards and directivesCompliance STANDARDS EN 60947-5-2:2007 | EN 60947-5-2/A1:2012 | IEC 60947-5-2:2007 | IEC 60947-5-2 AMD 1:2012Approvals and certificatesEAC COMPLIANCE: TR CU 020/2011Protection class: II Rated insulation voltage 36 V. Rated surge voltage resistance 500 V.UL recognized: CULus Listed, General Purpose, Class 2 power sourceCCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.Ambient conditionsAmbient temperature: -40 ... 85 °C (-40 ... 185 °F)Storage temperature: -40 ... 85 °C (-40 ... 185 °F)Mechanical data:Connection type: CableHousing material: Brass , white bronze coatedFace: PBT, greenProtection class: IP68Cable Wire-end sleeves: Yes Cable diameter 4.3 mm ± 0.15 mm Bending radius > : 10 x cable diameter Material: PVC. Colour, black Core number: 3 Wire cross-section 0.34 mm2 Length: 2 mWeight 78 gTightening torque: 0 ... 10 NmGeneral informationScope of delivery: Supplied with 2 nuts with locking teeth
