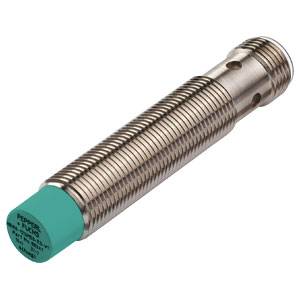

Pepperl+Fuchs Sensor Inductive NBN8-12GM50-E2-V1 326161-0052 non-shielded PNP (Ø x L) 12 mm x 64.5 mm
Product type
Sensor
Max. operating voltage
30 V
Switching distance (max.)
8 mm
Outputs
PNP
Model
Inductive
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Use Duration: 20 A
- Operating current: 0-200mA
- Hysteresis: type. 5%
- Product type
Sensor
- Type
NBN8-12GM50-E2-V1
- Min. operating voltage
10 V
- Max. operating voltage
30 V
- Operating voltage
10 - 30 V
- Switching distance (max.)
8 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Installation type
non-shielded
- Connector
Plug
- Min. temperature
-40 °C
- Max. temperature
+70 °C
IP67
- Length
64.5 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 64.5 mm
- Content
1 pc(s)
- Switching frequency
1500 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2129531 Pepperl+Fuchs Sensor Inductive NBN8-12GM50-E2-V1 326161-0052 non-shielded PNP (Ø x L) 12 mm x 64.5 mm
User & Safety Instructions
User & Safety Instructions 2129531 Pepperl+Fuchs Sensor Inductive NBN8-12GM50-E2-V1 326161-0052 non-shielded PNP (Ø x L) 12 mm x 64.5 mm
Conformity certificate
Conformity certificate 2129531 Pepperl+Fuchs Sensor Inductive NBN8-12GM50-E2-V1 326161-0052 non-shielded PNP (Ø x L) 12 mm x 64.5 mm
Description
Switching distance: 8 mm, installation: not flush, switching function: Normally open (NO), Output Type: PNP, operating voltage: 10... 30 V, operating current: 0 ... 200 mA
