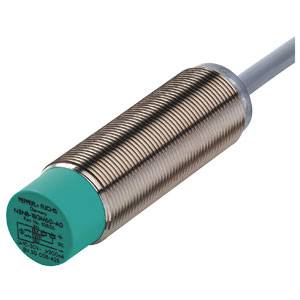

Pepperl+Fuchs Sensor Inductive NBN8-18GM60-WS 124313 non-shielded Two-wire
Product type
Sensor
Max. operating voltage
253 V
Contact type
1 maker
Switching distance (max.)
8 mm
Outputs
Two-wire
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Operating current: 5-200 mA
- Hysteresis: type. 7.5%
- Product type
Sensor
- Type
NBN8-18GM60-WS
- Min. operating voltage
20 V
- Max. operating voltage
253 V
- Operating voltage
20 - 253 V
- Contact type
1 maker
- Switching distance (max.)
8 mm
- Outputs
Two-wire
- Enclosure material
Brass
- Model
Inductive
- Installation type
non-shielded
- Connector
Cable
- Min. temperature
-25 °C
- Max. temperature
+70 °C
IP67
- Content
1 pc(s)
- Switching frequency
20 Hz
Documents & Downloads
Datasheet
Datasheet 2129556 Pepperl+Fuchs Sensor Inductive NBN8-18GM60-WS 124313 non-shielded Two-wire
User & Safety Instructions
User & Safety Instructions 2129556 Pepperl+Fuchs Sensor Inductive NBN8-18GM60-WS 124313 non-shielded Two-wire
Conformity certificate
Conformity certificate 2129556 Pepperl+Fuchs Sensor Inductive NBN8-18GM60-WS 124313 non-shielded Two-wire
Description
Switching distance: 8 mm, installation: not flush, switching function: Normally open (NO), Output Type: Two-wire, operating voltage: 20... 253 V, operating current: 5... 200 mA
