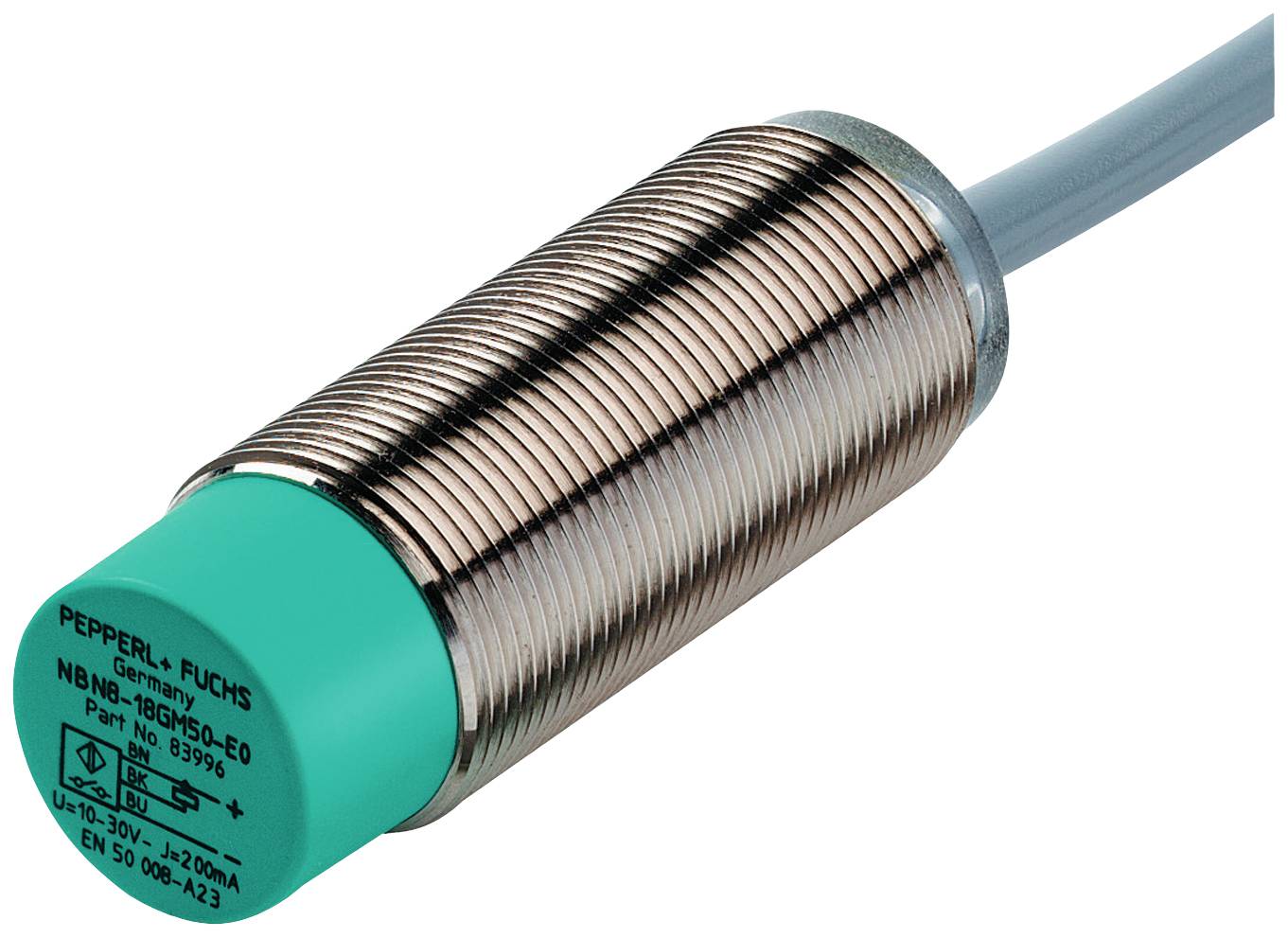

Image similar
Pepperl+Fuchs Sensor Inductive NBN8-18GS50-Z4L 323676-0010 M18 non-shielded Two-wire
Product type
Sensor
Max. operating voltage
30 V
Contact type
1 maker
Switching distance (max.)
8 mm
Outputs
Two-wire
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
NBN8-18GS50-Z4L
- Min. operating voltage
4 V
- Max. operating voltage
30 V
- Operating voltage
4 - 30 V
- Contact type
1 maker
- Switching distance (max.)
8 mm
- Outputs
Two-wire
- Enclosure material
Stainless steel V2A
- Model
Inductive
- Installation type
non-shielded
- Size
M18
- Connector
Cable
- Cable length
2 m
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
500 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2628094 Pepperl+Fuchs Sensor Inductive NBN8-18GS50-Z4L 323676-0010 M18 non-shielded Two-wire
User & Safety Instructions
User & Safety Instructions 2628094 Pepperl+Fuchs Sensor Inductive NBN8-18GS50-Z4L 323676-0010 M18 non-shielded Two-wire
Description
Switching distance: 8 mm, installation: Non-flush, switching function: Closer (NO), output type: Two-wire with minimum residual current, operating voltage: 4 ... 30 V, operating current: 2 ... 30 mA
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: Closer (NO)Output type: Two-wire with minimum residual currentSwitching distance: 8 mmInstallation: Non-flushOutput polarity: DCSafe switching distance: 0 ... 6.48 mmReal switching distance: 7.2 ... 8.8 mmReduction factor forAl: 0.4Reduction factor rCu: 0.35Reduction factor rV2A (1.4301) : 0.7Output type: 2-wireCharacteristicsOperating voltage 4 ... 30 VSwitching frequency: 0 ... 500 HzHysteresis: 1 ... 10 type. 5%Reverse polarity protection: YesShort-circuit protection: IsochronousVoltage drop: ≤ 4 VOperating current: 2 ... 30 mAMinimum operating current 2 mAResidual current ≤ 200 µASwitching status display: All-round LED, yellowFunctional safety characteristicsMTTFd: 1581 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Compliance with standards and directivesCompliance STANDARDS EN 60947-5-2:2007 | EN 60947-5-2/A1:2012 | IEC 60947-5-2:2007 | IEC 60947-5-2 AMD 1:2012Approvals and certificatesUL recognized: CULus Listed, General Purpose, Class 2 power sourceCCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.Ambient conditionsAmbient temperature: -25 ... 70 °C (-13 ... 158 °F)Storage temperature: -40 ... 85 °C (-40 ... 185 °F)Mechanical data:Connection type: PUR cable, 2 mWire cross-section 0.34 mm2Housing material: Stainless steel 1.4305 / AISI 303 (V2A)Face: PBTProtection class IP67Weight 104 gGeneral informationScope of delivery: Supplied with 2 nuts with locking teeth
