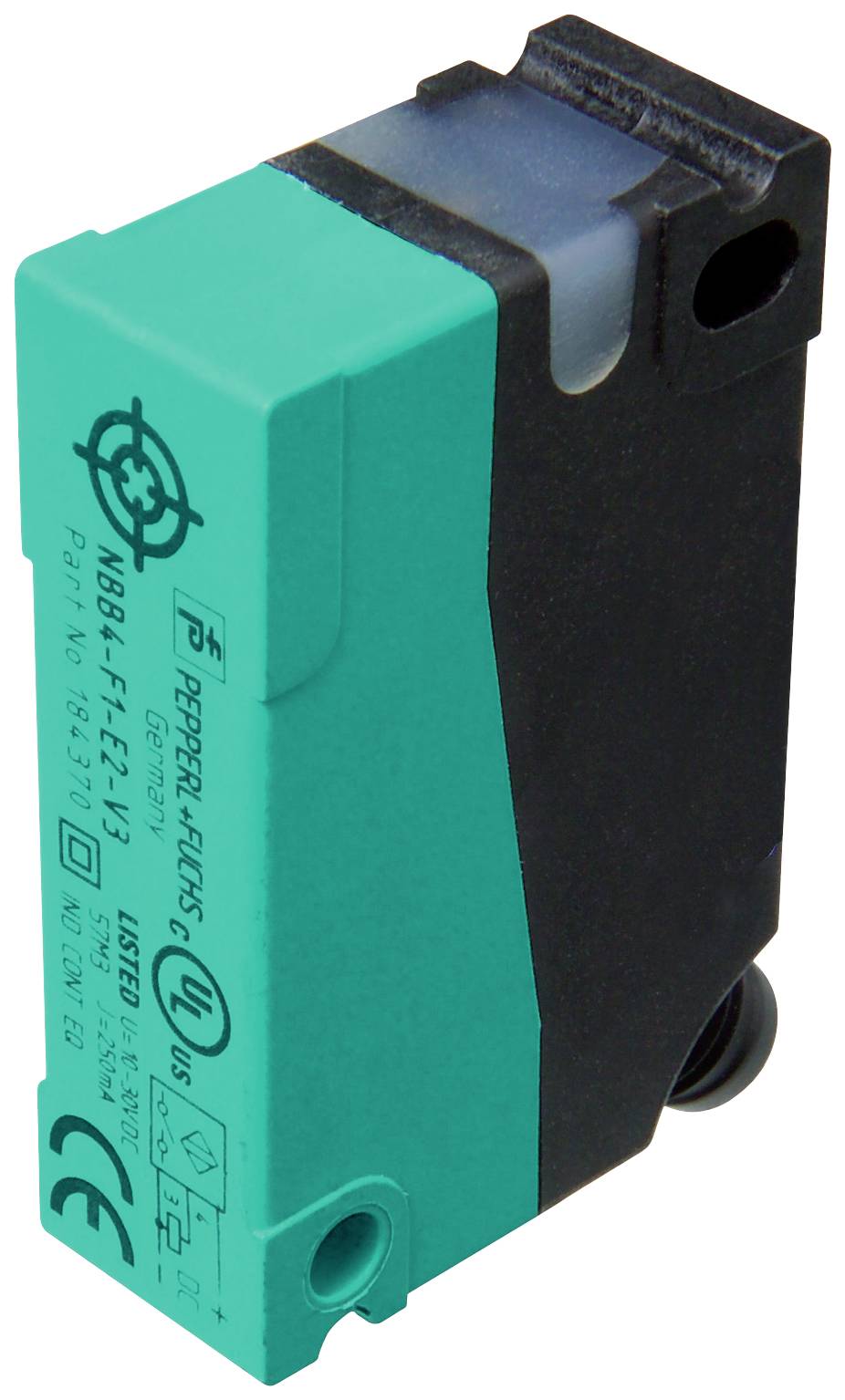

Image similar
Pepperl+Fuchs Sensor Inductive NBN8-F1-E0-V3 184378 M8 non-shielded NPN
Product type
Sensor
Max. operating voltage
30 V DC
Contact type
1 maker
Switching distance (max.)
8 mm
Outputs
NPN
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
NBN8-F1-E0-V3
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
1 maker
- Switching distance (max.)
8 mm
- Outputs
NPN
- Enclosure material
Polyamide
- Model
Inductive
- Installation type
non-shielded
- Size
M8
- Connector
M8 plug (3-pin)
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
1400 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2627929 Pepperl+Fuchs Sensor Inductive NBN8-F1-E0-V3 184378 M8 non-shielded NPN
User & Safety Instructions
User & Safety Instructions 2627929 Pepperl+Fuchs Sensor Inductive NBN8-F1-E0-V3 184378 M8 non-shielded NPN
Description
Switching distance: 8 mm, installation: Non-flush, switching function: Closer (NO), output type: NPN, operating voltage: 10 ... 30 V DC, operating current: 0 ... 250 mA
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: Closer (NO)Output type: NPNSwitching distance: 8 mmInstallation: Non-flushOutput polarity: DCSafe switching distance: 0 ... 6.48 mmReduction factor rAl: 0.45Reduction factor rCu: 0.45Reduction factor rV2A (1.4301) : 0.7Reduction factor rMS: 0.55Output type: 3-wireCharacteristicsOperating voltage 10 ... 30 V DCSwitching frequency: 0 ... 1400 HzHysteresis: type. 5%Reverse polarity protection: Reverse polarity protectedShort-circuit protection: IsochronousVoltage drop: ≤ 2.5 VOperating current: 0 ... 250 mAResidual current: 0 ... 0.01 mA type. 0.1 µA at 25 °C.No-load current ≤ 15 mASwitching status indicator: LED, yellowFunctional safety characteristicsMTTFd: 1530 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Compliance with standards and directivesCompliance Standards EN 60947-5-2:2007 | IEC 60947-5-2:2007Approvals and certificatesProtection class: II Rated insulation voltage 60 V. Rated surge voltage resistance 800 V.UL approval: CULus Listed, General PurposeCSA approved: CCSAus Listed, General PurposeCCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.Ambient conditionsAmbient temperature: -25 ... 70 °C (-13 ... 158 °F)Mechanical data:Connection type: Device plug M8 x 1 , 3-pinHousing material: PAFront face: PAProtection class IP67Tightening torque mounting screws: Thread M3 max. 1.1 Nm
