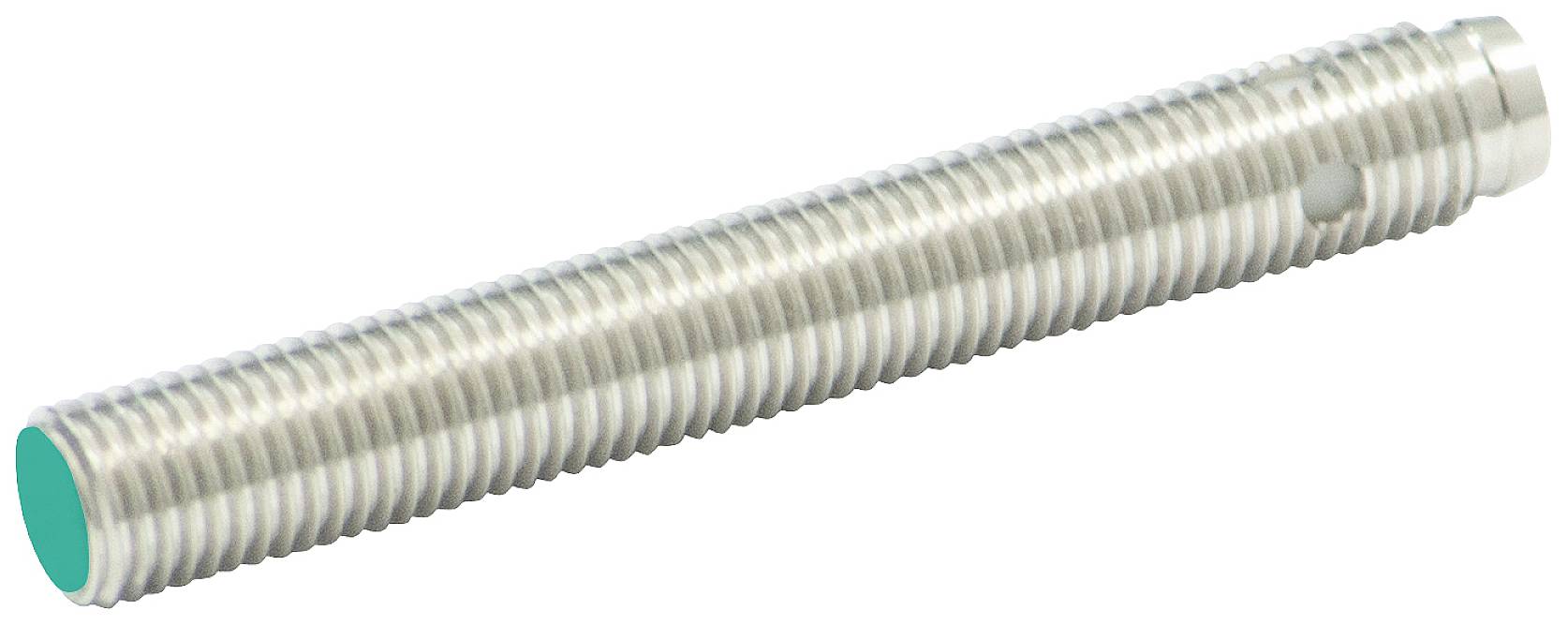

Pepperl+Fuchs Sensor Inductive NEB3-8GM60-E2-V3-Y100001 304615-100001 M8 shielded PNP
Product type
Sensor
Max. operating voltage
30 V
Contact type
1 maker
Switching distance (max.)
3.5 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
NEB3-8GM60-E2-V3-Y100001
- Min. operating voltage
5 V
- Max. operating voltage
30 V
- Operating voltage
5 - 30 V
- Contact type
1 maker
- Switching distance (max.)
3.5 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Material properties
nickel plated
- Installation type
shielded
- Size
M8
- Connector
M8 plug (3-pin)
- Min. temperature
-40 °C
- Max. temperature
85 °C
IP67
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
3500 Hz
- UKCA
yes
