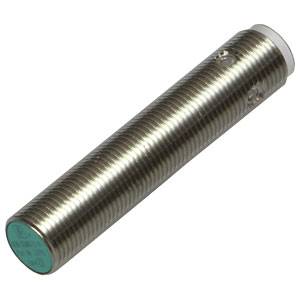

Image similar
Pepperl+Fuchs Sensor Inductive NEB6-12GM50-E3-V1 231716 M12 quasi-shielded PNP
Product type
Sensor
Max. operating voltage
30 V
Contact type
1 breaker
Switching distance (max.)
6 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Use Duration: 20 A
- Idling current: max. 25 mA at 24 V supply voltage.
- Operating current: 0-200mA, above 70°C max. 150 mA
- Hysteresis: 0.06... 1.2 mm
- Product type
Sensor
- Type
NEB6-12GM50-E3-V1
- Min. operating voltage
10 V
- Max. operating voltage
30 V
- Operating voltage
10 - 30 V
- Contact type
1 breaker
- Switching distance (max.)
6 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Installation type
quasi-shielded
- Size
M12
- Connector
Plug
- Min. temperature
-25 °C
- Max. temperature
+85 °C
IP67
- Content
1 pc(s)
- Switching frequency
800 Hz
Documents & Downloads
Datasheet
Datasheet 2129741 Pepperl+Fuchs Sensor Inductive NEB6-12GM50-E3-V1 231716 M12 quasi-shielded PNP
User & Safety Instructions
User & Safety Instructions 2129741 Pepperl+Fuchs Sensor Inductive NEB6-12GM50-E3-V1 231716 M12 quasi-shielded PNP
Conformity certificate
Conformity certificate 2129741 Pepperl+Fuchs Sensor Inductive NEB6-12GM50-E3-V1 231716 M12 quasi-shielded PNP
Description
Switching distance: 6 mm, installation: quasi-shielded, switching function: Normally-closed (NC), Output Type: PNP, operating voltage: 10... 30 V DC, operating current: 0 ... 200 mA, above 70°C max. 150 mA
