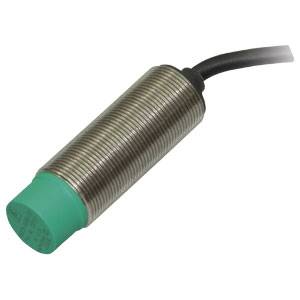

Pepperl+Fuchs Sensor Inductive NEN10-12GM50-E2-V1 231723 M50 non-shielded PNP
Product type
Sensor
Max. operating voltage
30 V
Switching distance (max.)
10 mm
Outputs
PNP
Model
Inductive
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Use Duration: 20 A
- Operating current: 0-200mA, above 70°C max. 150 mA
- Hysteresis: 0.06... 1 mm
- Product type
Sensor
- Type
NEN10-12GM50-E2-V1
- Min. operating voltage
10 V
- Max. operating voltage
30 V
- Operating voltage
10 - 30 V
- Switching distance (max.)
10 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Installation type
non-shielded
- Size
M50
- Connector
Plug
- Min. temperature
-25 °C
- Max. temperature
+85 °C
IP67
- Content
1 pc(s)
- Switching frequency
600 Hz
Documents & Downloads
Datasheet
Datasheet 2129746 Pepperl+Fuchs Sensor Inductive NEN10-12GM50-E2-V1 231723 M50 non-shielded PNP
User & Safety Instructions
User & Safety Instructions 2129746 Pepperl+Fuchs Sensor Inductive NEN10-12GM50-E2-V1 231723 M50 non-shielded PNP
Conformity certificate
Conformity certificate 2129746 Pepperl+Fuchs Sensor Inductive NEN10-12GM50-E2-V1 231723 M50 non-shielded PNP
Description
Switching distance: 10 mm, installation: not flush, switching function: Normally open (NO), Output Type: PNP, operating voltage: 10... 30 V DC, operating current: 0 ... 200 mA, above 70°C max. 150 mA
